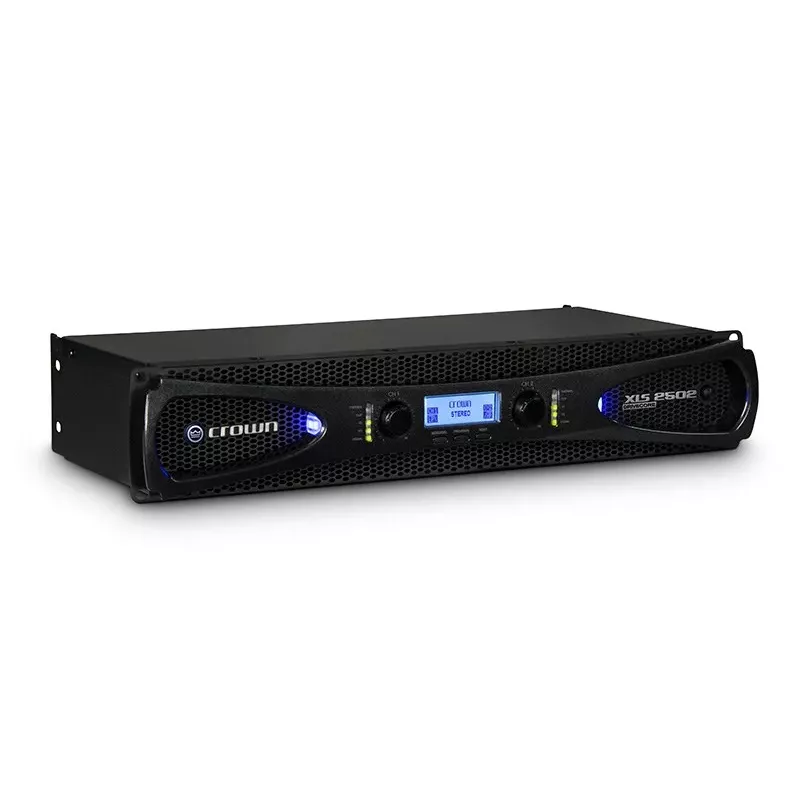

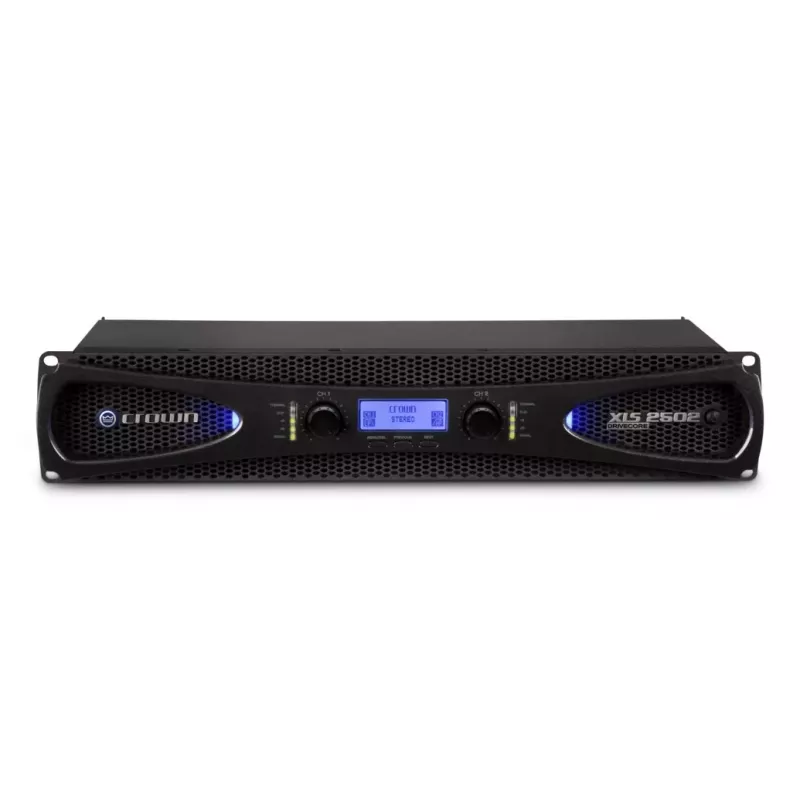

Crown XLS 2502 etapa de potencia de dos canales con DSP

The Crown XLS 2502 is a professional two-channel power amplifier featuring advanced DriveCore Class D technology and integrated DSP. Designed for high-performance audio applications, it delivers robust power output and pristine sound quality, making it an ideal choice for live sound reinforcement, installed systems, and touring.

Advantages

With 775W per channel at 4 ohms and 2400W bridged mono at 4 ohms, the XLS 2502 provides ample headroom for demanding speakers. The built-in PureBand crossover system and Peakx limiters ensure optimal speaker protection and system tuning. Its lightweight 2U rack-mountable design and forced-air cooling make it reliable for continuous operation.

Suitable for

• Live sound reinforcement for bands and DJs
• Fixed installations in clubs, theaters, and houses of worship
• Portable PA systems for events and conferences

Key specifications

• Channels: 2
• Amplifier Class: Class D (DriveCore Technology)
• Power Output (4 Ohm per channel): 775W
• Power Output (8 Ohm per channel): 440W
• Bridged Mono Power (4 Ohm): 2400W
• Frequency Response: 20Hz - 20kHz (+0dB, -1dB)
• Signal-to-Noise Ratio: >103 dB (A-weighted)
• Total Harmonic Distortion: <0.5%

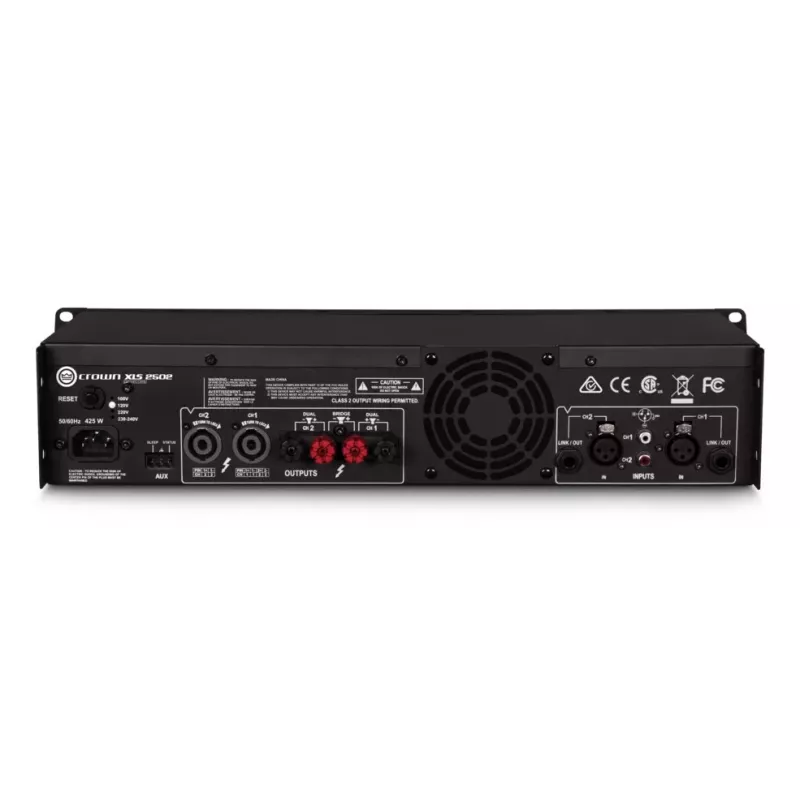

• Input Connectors: XLR, 1/4" TRS, RCA
• Output Connectors: Speakon (NL4), Binding Posts
• DSP Features: PureBand Crossover System, Peakx Limiters
• Rack Size: 2U

Recommendations

For optimal performance, pair the XLS 2502 with speakers that can handle its power output. Use balanced XLR connections to minimize noise. The DSP allows precise crossover and limiting settings; refer to the manual for configuration guidance.
