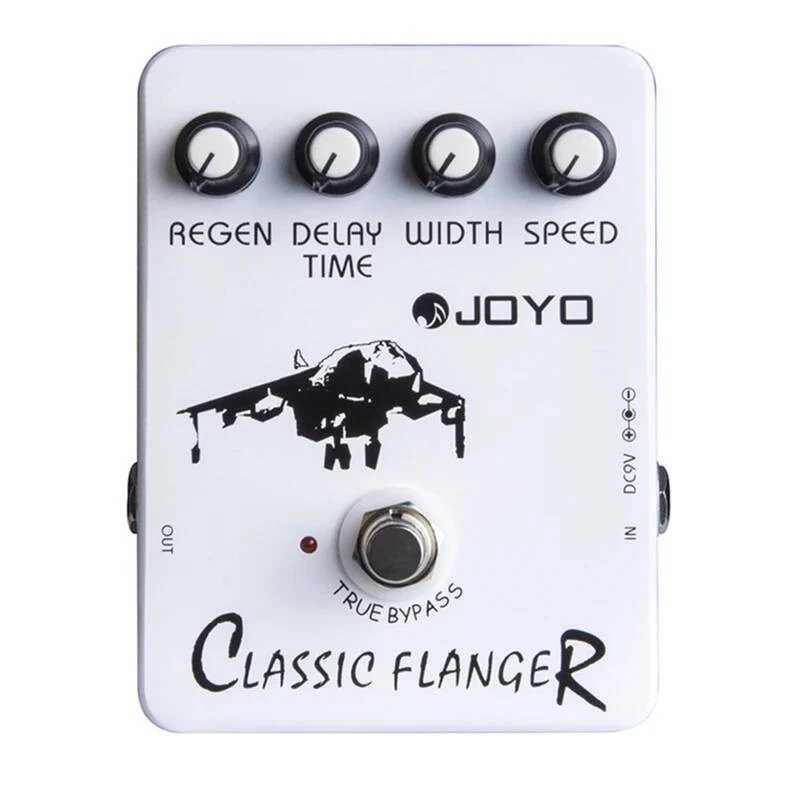

JOYO JF-07 Classic Flanger Pedal de efectos para guitarra

Guitarists seeking the swirling, jet-plane sweep of a classic flanger often face bulky, expensive units or digital emulations that lack warmth. The JOYO JF-07 Classic Flanger solves this by delivering authentic analog flanging in a compact, pedalboard-friendly enclosure. With controls for Rate, Depth, Manual, and Resonance, it offers precise shaping of the modulation, from subtle chorus-like movement to dramatic, metallic sweeps. True bypass ensures your dry signal remains pristine when the effect is off, and the rugged aluminum alloy housing withstands the rigors of live performance. Whether you play electric guitar or bass, the JF-07 adds a professional, vintage-inspired dimension to your sound without breaking the bank.

Who is it for

This pedal is ideal for guitarists and bassists who want classic flanger tones in a reliable, affordable package. It suits players of all levels, from bedroom experimenters to touring professionals, and is especially valuable for those building a compact pedalboard where space is at a premium. If you love the sounds of '70s and '80s rock, funk, or experimental music, the JF-07 will quickly become a go-to for adding movement and depth to your playing.

Main features

• Authentic analog flanger circuit for warm, organic modulation
• Four intuitive controls: Rate, Depth, Manual, and Resonance for detailed sound shaping
• True bypass switching preserves your guitar's natural tone when disengaged
• Sturdy aluminum alloy enclosure built for stage and studio use
• Works with electric guitar and bass, expanding its versatility
• Low current draw (6mA) for efficient power consumption
• Can be powered by 9V battery or optional DC adapter (center negative)
• Bright LED indicator shows effect on/off status at a glance

Specifications

• Effect Type: Flanger
• Controls: Rate, Depth, Manual, Resonance
• Bypass Type: True Bypass
• Circuitry: Analog
• Input Impedance: 1MΩ
• Output Impedance: 10KΩ
• Power Requirements: DC 9V (Center Negative)
• Current Draw: 6mA
• Battery Support: Yes (9V PP3 type)
• Power Adapter Included: No
• Enclosure Material: Aluminum Alloy
• Input Connector: 1/4" Mono Audio Jack
• Output Connector: 1/4" Mono Audio Jack
• LED Indicator: Yes (Effect On/Off)
• Product Series: JOYO JF Series
• Intended Instrument: Electric Guitar, Bass

Tips

To achieve a classic jet-plane flanger sound, set Rate to around 10 o'clock, Depth to 3 o'clock, Manual to noon, and Resonance to taste. For a subtle chorus-like effect, reduce Depth and Resonance. Experiment with the Manual control to shift the flanger's sweep range and find the sweet spot for your pickups. Since the JF-07 is true bypass, place it after distortion or overdrive in your signal chain for a more pronounced effect, or before for a subtler wash. Always use a regulated 9V DC power supply with center-negative polarity to avoid damage, or keep a fresh 9V battery as backup.
