JUNG CD134.18WU Interruptor de llave, conmutador 2 polos, 250 V AC, 10 A, empotrar, blanco alpino

Rated at 250 V AC and 10 A, this 2-pole changeover key switch delivers dependable control for security-sensitive circuits. Its momentary action and key removal in the 0 position ensure authorised operation only.

Overview

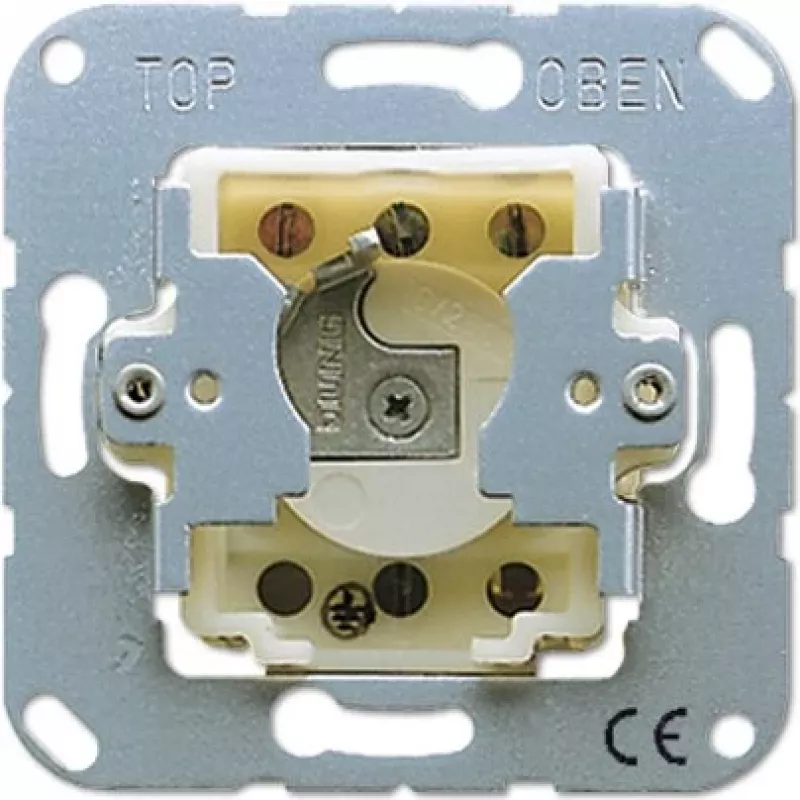

The JUNG CD134.18WU is a flush-mounted key switch from the CD series, compatible with CD 500, CD plus, and CD universal design lines. It features a robust thermoplastic construction in Alpine White, screw terminals, and IP20 protection, making it suitable for indoor applications where controlled switching is required.

What stands out

• 2-pole changeover contact for versatile circuit control
• Momentary switching with key removable only in off position
• Supplied with 2 keys for convenience
• Flush-mounted design integrates seamlessly with JUNG CD frames
• Durable, break-resistant thermoplastic housing

Technical details

• Switch type: Key switch (momentary)
• Number of poles: 2
• Contact configuration: Changeover (Wechsler)
• Switching positions: 2 (0-1)
• Key removal position: 0
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Material: Thermoplastic (break-resistant)
• Colour: Alpine White
• IP protection class: IP20
• Operating temperature: -5 to +40 °C
• Number of keys supplied: 2
• Lock system: JUNG standard lock (e.g., 1800 series)

Our verdict

A reliable and secure key switch for controlled access applications, built to JUNG's high standards and easy to integrate into existing CD series installations.
