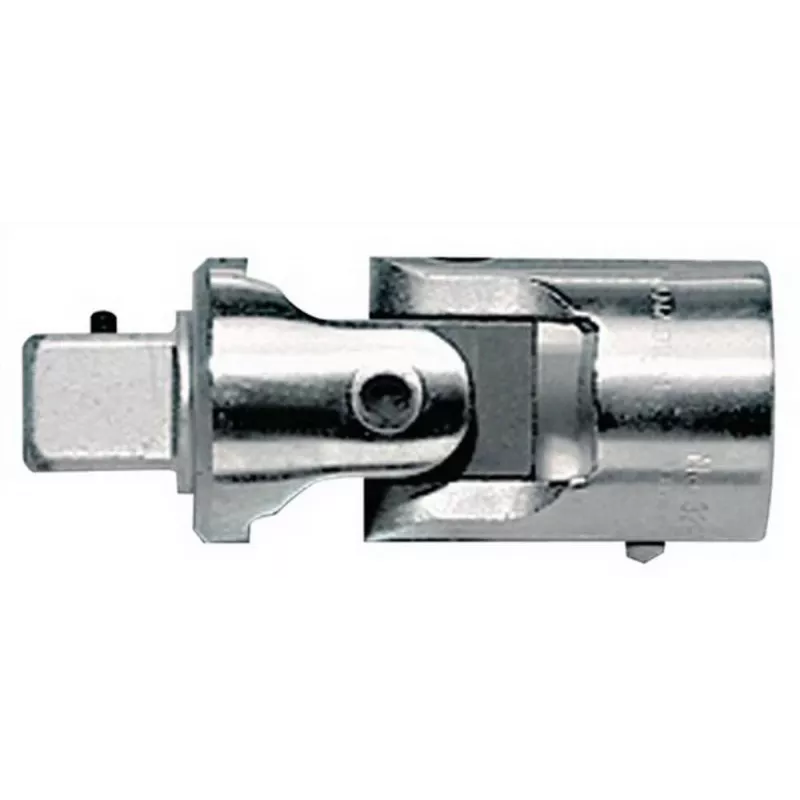

Junta universal GEDORE 3295, cuadradillo de 3/4 pulgadas, acero cromo-vanadio, DIN 3123/ISO 3316

Working in tight engine bays or around heavy machinery often means sockets can't align straight onto fasteners. The GEDORE 3295 universal joint solves this by allowing a 3/4" square drive to pivot up to approximately 45 degrees, transferring torque smoothly into offset or hard-to-reach nuts and bolts. It's the kind of tool that turns a frustrating, time-consuming job into a straightforward one.

Who is it for

Professional mechanics, industrial maintenance crews, and demanding DIYers who rely on 3/4" drive tools for high-torque applications. If you regularly work on trucks, agricultural equipment, or heavy plant machinery, this universal joint is an essential addition to your socket set.

Main features

• 3/4" square drive on both ends, compatible with standard 3/4" sockets and extensions.
• Articulates up to ~45 degrees, giving you access to fasteners at awkward angles.
• Forged from chrome vanadium steel for exceptional strength and durability under high torque.
• Chrome-plated, polished finish resists corrosion and wipes clean easily.
• Meets DIN 3123 and ISO 3316 standards for dimensional accuracy and performance.
• Compact overall length of 100 mm with a head diameter of approximately 48 mm.

Specifications

• Brand: GEDORE
• Model: 3295
• MPN: 6279170
• EAN: 4010886627914
• Drive size: 3/4 inch (19.05 mm)
• Tool type: Universal joint
• Material: Chrome vanadium steel
• Finish: Chrome-plated, polished
• Overall length: 100 mm
• Head diameter: approx. 48 mm
• Maximum articulation angle: approx. 45 degrees
• Standards: DIN 3123, ISO 3316
• Country of origin: Germany

Tips

Always ensure the universal joint is fully seated on both the drive tool and the socket before applying torque. For maximum service life, wipe down the joint after use and store it in a dry toolbox. Avoid using impact wrenches unless the joint is specifically rated for impact use.
