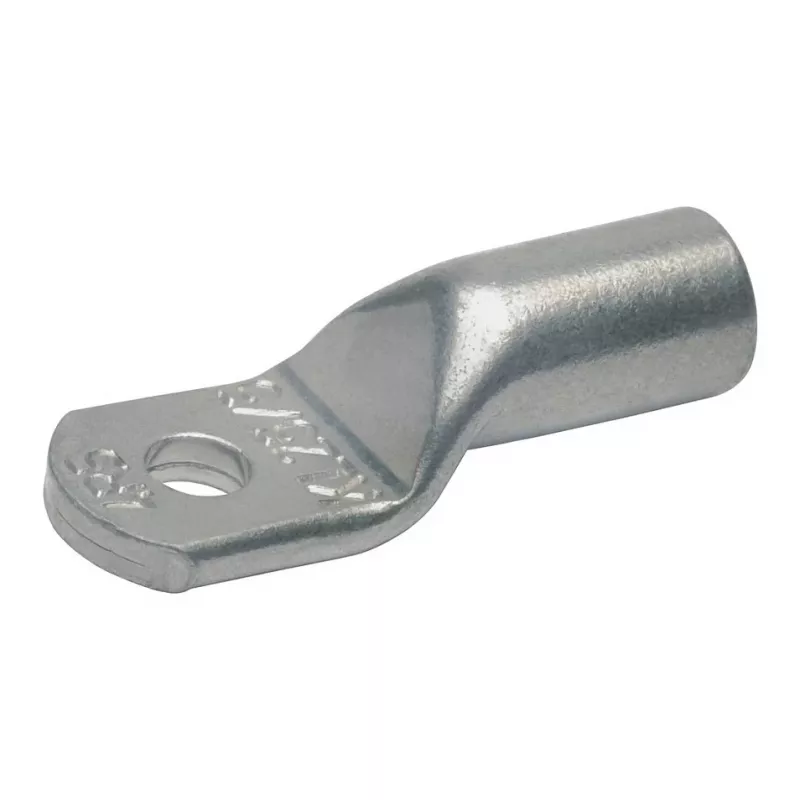

Klauke 5R12MS Terminal tubular 35mm² M12 E-Cu galvanizado estañado con orificio de inspección

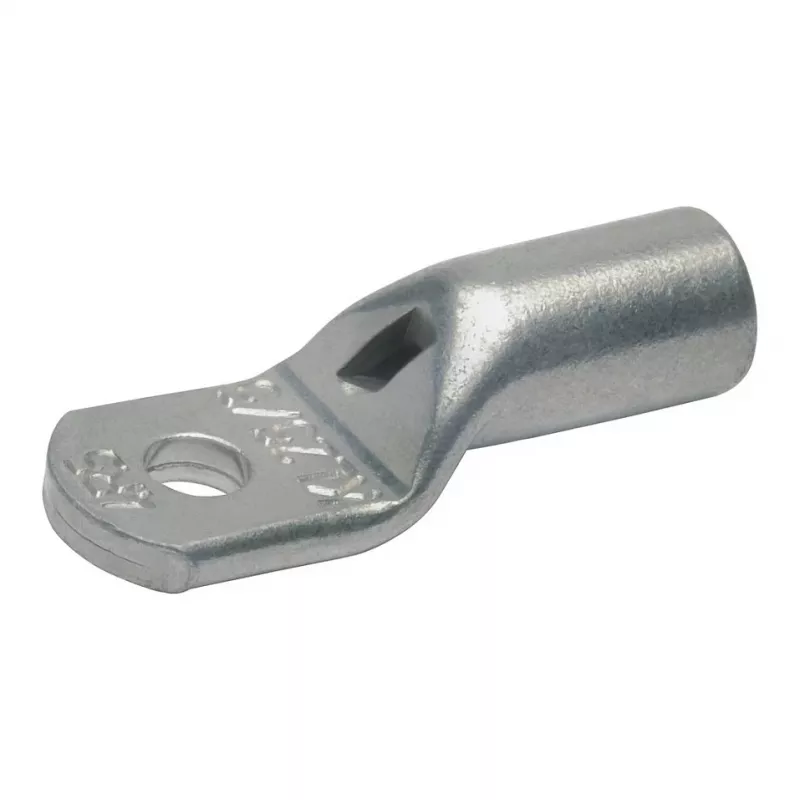

The Klauke 5R12MS is a high-quality tubular cable lug designed for reliable electrical connections. Made from electrolytic copper (E-Cu) with galvanic tinning, it offers excellent corrosion resistance and conductivity. The inspection hole allows for visual verification of proper conductor insertion after crimping. Suitable for fine-stranded, stranded, and solid copper conductors, this lug meets DIN 46235 standards and is ideal for power distribution and industrial applications.

Advantages

Galvanically tinned surface provides superior corrosion protection. Inspection hole ensures correct crimping. High conductivity electrolytic copper minimizes power loss. Robust construction withstands temperatures up to 150°C.

Suitable for

• Electrical connections in power distribution systems
• Industrial machinery and control panels
• Automotive and renewable energy installations
• Any application requiring secure, long-lasting cable terminations

Key specifications

• Product Type: Tubular Cable Lug
• Conductor Cross-section: 35 mm²
• Bolt Hole Diameter: M12 (approx. 12.5 mm)
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Galvanically Tinned
• Feature: With Inspection Hole
• Connection Type: Crimp
• Conductor Compatibility: Fine-stranded, Stranded, Solid Copper Conductors
• Standard Compliance: DIN 46235
• Insulation: Uninsulated
• Max. Voltage Rating: Up to 1000 V
• Max. Temperature Resistance: 150 °C
• Number of Bolt Holes: 1
• Color: Metallic (Silver/Tin-plated Copper)
• Shape: Tubular
• Manufacturer Series: R-Series
• RoHS Compliant: Yes
• Conductor Type: Round and Sector-shaped

Recommendations

For optimal performance, use with Klauke crimping tools and dies. Ensure proper conductor stripping and insertion before crimping. Always follow applicable electrical codes and standards.
