LAPP EPIC® M23 Kit de conector hembra de 8+1 polos con conexión por tornillo, IP67 75009698

Rated for 20 A at 250 V, this EPIC® M23 female connector kit from LAPP delivers reliable power and signal transmission in demanding industrial environments. The 8+1 configuration provides eight power contacts plus a protective earth, ensuring safe operation for motors, drives, and automation systems.

Overview

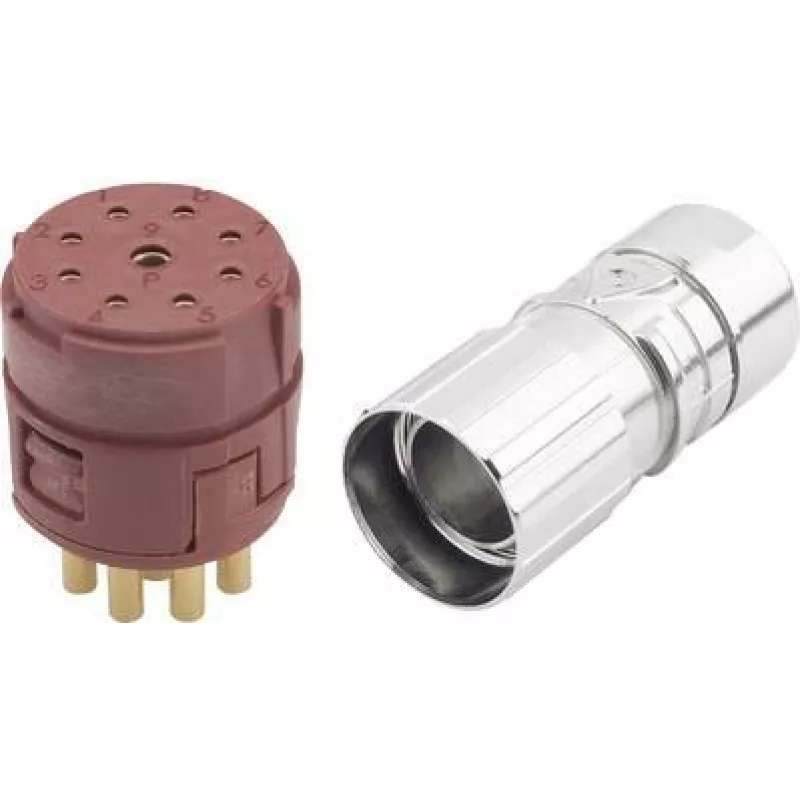

The EPIC® KIT M23 D6 8+1-POL FEMALE is a complete connector set for field assembly. It includes a nickel-plated zinc die-cast housing, a female insert with silver-plated copper alloy contacts, screw terminals, and an M25 cable gland. Designed for cables with an outer diameter of 9–13 mm, this kit simplifies on-site wiring without specialized tools.

What stands out

• IP67 protection when mated, suitable for harsh washdown and outdoor use.
• Wide operating temperature range from -25°C to +125°C.
• Screw termination for secure, vibration-resistant connections.
• Over 500 mating cycles for long service life.
• UL 94 V-0 flammability-rated insert for enhanced safety.

Technical details

• Connector type: Circular, EPIC® M23 series
• Gender: Female (socket)
• Contacts: 8 power + 1 PE
• Rated voltage: 250 V (IEC)
• Rated current: 20 A
• Termination: Screw
• Housing material: Zinc die-cast, nickel-plated
• Contact material: Copper alloy, silver-plated
• Cable gland thread: M25
• Cable diameter range: 9–13 mm
• Pollution degree: 3
• Overvoltage category: III

Our verdict

This LAPP connector kit offers a robust, field-installable solution for M23 applications. Its high current rating, IP67 sealing, and wide temperature range make it a dependable choice for industrial machinery and automation projects.
