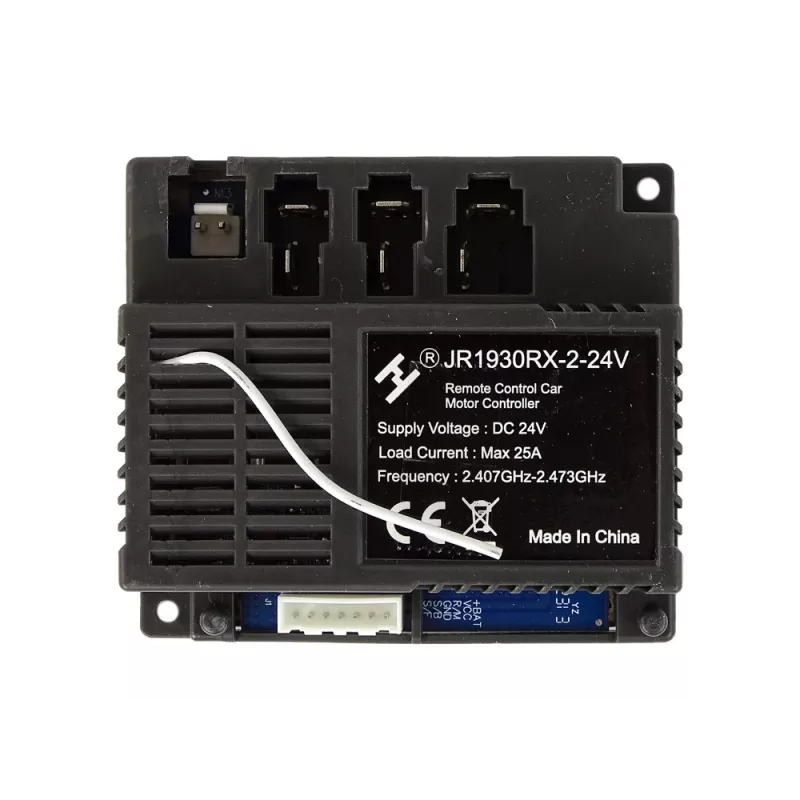

LEAN CARS Módulo central SX2038 - Receptor Bluetooth 2.4G JR1930RX-2-24V para coches eléctricos infantiles

Parents upgrading their child's 24V ride-on car will find the LEAN CARS Central Module SX2038 a direct-fit control unit that brings reliable 2.4 GHz Bluetooth communication between the vehicle and its JR-series remote. The module manages drive motors, steering, and speed adjustment through a proprietary one-to-one pairing protocol, ensuring no interference from other nearby toys.

Key specifications

• Operating voltage: 24V DC
• Wireless technology: 2.4 GHz Bluetooth, proprietary protocol
• Receiver model: JR1930RX-2, series SX2038
• Control functions: forward/reverse motor control, steering control, speed adjustment
• Outputs: multiple 2-pin connectors for drive motors, 2-pin steering motor connector, auxiliary outputs for lights/music (model dependent)
• Protection: overload and short-circuit protection
• Indicators: power and pairing status LEDs
• Mounting: screw holes for secure installation
• Operating temperature: -10°C to 50°C
• Material: FR-4 PCB with durable plastic enclosure

Why choose it

This module is engineered for exact compatibility with JR1930RX-2 systems, eliminating guesswork during repairs or upgrades. The robust enclosure and protective circuitry guard against common electrical faults, while the Bluetooth pairing keeps the connection stable even when the car is in motion.

Ideal use cases

• Replacing a faulty receiver in a 24V kids electric car
• Upgrading an older ride-on to modern 2.4G remote control
• Building or customising a ride-on vehicle with a JR-series control system
• Maintaining a fleet of ride-on cars in rental or amusement settings

Good to know

The module's proprietary 2.4 GHz protocol ensures a secure one-to-one link with the remote, reducing the risk of cross-interference. Its FR-4 PCB and plastic enclosure provide durability for the vibrations and bumps typical of ride-on toys.
