LEAN CARS Placa de control principal 12V para Weelye RX19 S2388 S2588 coches eléctricos infantiles

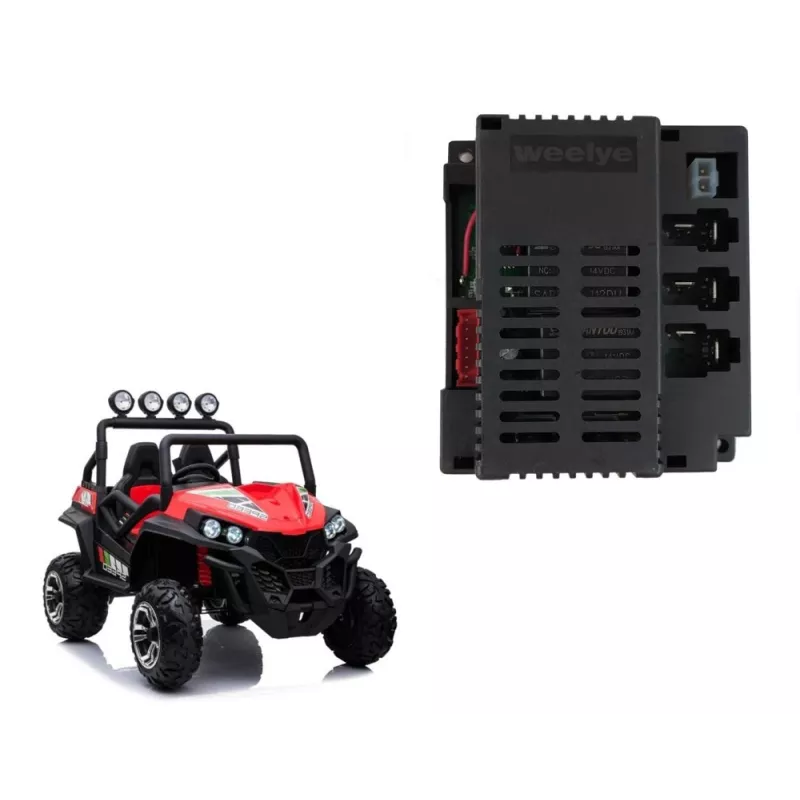

This main control board is the central receiver unit for Weelye 12V electric ride-on vehicles, delivering reliable 2.4 GHz wireless control and robust motor management. It supports up to two drive motors and one steering motor, enabling smooth forward/reverse movement, precise turning, and adjustable speed with soft start. The board comes pre-programmed and plug-and-play, compatible with Weelye JYP-12V series 2.4G remotes and models S2388, S2588, S3088, S9088, and similar 12V ride-on cars.

Advantages

Engineered for safety and durability, the board features overload and short circuit protection, a wide input voltage range of 10V to 14V DC, and a maximum continuous current of approximately 15A. The green FR-4 PCB with secure screw holes ensures stable mounting, while dedicated ports for motors, battery, steering, lights, music, power switch, and charging simplify installation. A power/status LED provides clear operational feedback.

Suitable for

• Replacing a faulty control board in Weelye S2388 or S2588 ride-on cars
• Upgrading compatible 12V children's electric vehicles for improved performance
• DIY repairs and maintenance of ride-on toys
• Use with Weelye JYP-12V series 2.4G remote controls

Key specifications

• Operating voltage: 12V DC (input range 10V–14V DC)
• Control frequency: 2.4 GHz
• Motor support: up to 2 drive motors + 1 steering motor
• Functions: forward/reverse, left/right turn, speed control, soft start
• Safety: overload protection, short circuit protection
• Max continuous current: ~15A
• Operating temperature: 0°C to 40°C
• Material: FR-4 PCB with plastic connectors
• Installation: plug-and-play with compatible Weelye components
• Indicator: power/status LED
• Mounting: screw holes for secure attachment
• Colour: green PCB with black connectors

Recommendations

For optimal performance, verify that your ride-on car model and remote control are compatible with the Weelye RX19 receiver system. Always disconnect the battery before installation and ensure all connectors are firmly seated. This control board is an ideal replacement part to restore full functionality to your child's electric vehicle.
