Name: Lenovo 7ZT7A00507 Tarjeta de red Interna Fibra 25000 Mbit/s
Brand: LENOVO
SKU: 1514853
Price: 234.56 EUR
Availability: OutOfStock

Lenovo 7ZT7A00507 Tarjeta de red Interna Fibra 25000 Mbit/s

0 opiniones • Escribir una opinión

234,56 €

Cant.

Agotado

Añadir a la lista de deseos Comparar este producto

Stock AgotadoSin stock Código 1514853 Marca LENOVO Modelo 7ZT7A00507 Garantía 2 años

Envíos y devoluciones

Vista rápida

StarTech.com US2GC30 adaptador USB-C a 2,5 Gigabit Ethernet, USB 3.0, NBASE-T, 2.5GBASE-T, RJ45, 10/100/1000/2500 Mbps, negro/gris espacial

58,99 €

Sin IVA:48,75 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

StarTech.com Adaptador de red USB-C a Gigabit con puerto USB 3.0 adicional

64,00 €

Sin IVA:52,89 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Lenovo 7ZT7A00493 tarjeta de red interna fibra óptica 10000 Mbit/s

238,64 €

Sin IVA:197,23 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Lenovo Emulex Emulex Dual-Port 10 Gigabit Ethernet SFP+

223,29 €

Sin IVA:184,53 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Tarjeta Ethernet interna Citizen IF5-ES04 1000 Mbit/s cableada

224,31 €

Sin IVA:185,38 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Tarjeta de red MikroTik R52HND WLAN interna

50,67 €

Sin IVA:41,88 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Adaptador USB-C a RJ45 Gigabit Ethernet LOGILINK UA0456 — USB 3.2 Gen 1 (5 Gbit/s) conector macho a conector hembra RJ45

35,25 €

Sin IVA:29,13 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Tarjeta de red Trendnet TUC-ETG Ethernet 2000 Mbit/s

32,91 €

Sin IVA:27,20 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Tarjeta de red Conceptronic ABBY12GC Ethernet 2500 Mbit/s

30,92 €

Sin IVA:25,55 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Adaptador USB Type-A macho a LAN 2,5 Gigabit DeLOCK 66646

31,59 €

Sin IVA:26,11 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

ConnectX-4 from Mellanox is a family of high-performance and low-latency Ethernet and InfiniBand adapters. The ConnectX-4 Lx EN adapters are available in 40 Gb and 25 Gb Ethernet speeds and the ConnectX-4 Virtual Protocol Interconnect (VPI) adapters support either InfiniBand or Ethernet.

These adapters address virtualized infrastructure challenges, delivering best-in-class performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.

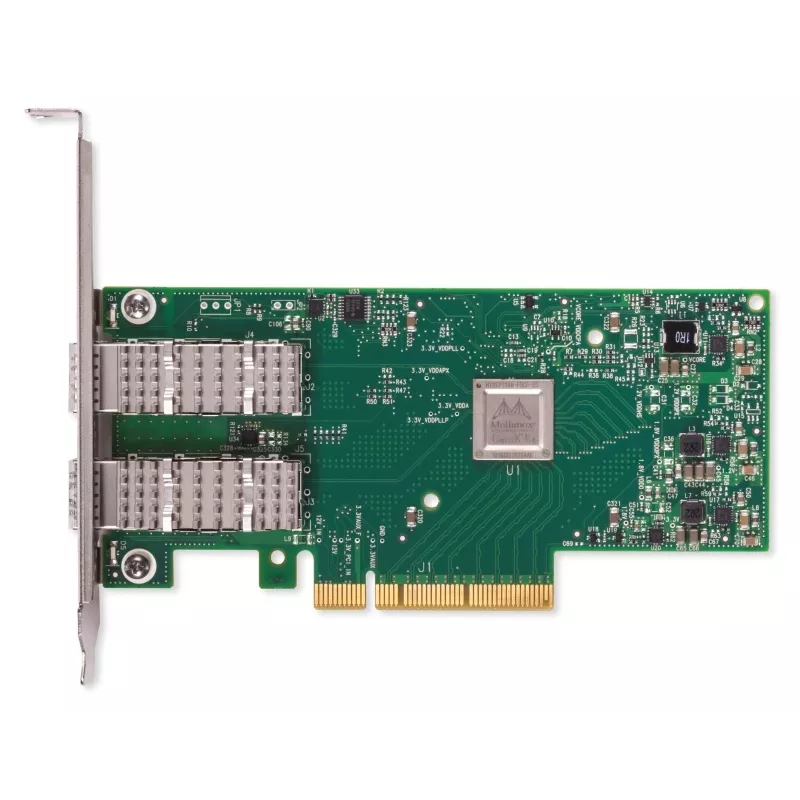

The following figure shows the Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adapter (the standard heat sink has been removed in this photo).

Lenovo 7ZT7A00507. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 25000 Mbit/s. Product colour: Green

Aspectos destacados

ConnectX-4 Lx Ethernet adapters
The ConnectX-4 Lx adapters discussed in this product guide offer a high performance Ethernet adapter solution for Ethernet speeds up to 40 Gb/s, enabling seamless networking, clustering, or storage. The Lx adapters reduce application runtime, and offer the flexibility and scalability to make infrastructure run as efficiently and productively as possible
ConnectX-4 100 Gb Ethernet / EDR InfiniBand
ConnectX-4 with Virtual Protocol Interconnect (VPI) offers the highest throughput VPI adapter, supporting EDR 100Gb/s InfiniBand and 100Gb/s Ethernet and enabling any standard networking, clustering, or storage to operate seamlessly over any converged network leveraging a consolidated software stack
I/O Virtualization
ConnectX-4 SR-IOV technology provides dedicated adapter resources and guaranteed isolation and protection for virtual machines (VMs) within the server. I/O virtualization with ConnectX-4 gives data center administrators better server utilization while reducing cost, power, and cable complexity, allowing more Virtual Machines and more tenants on the same hardware
Overlay Networks
In order to better scale their networks, data center operators often create overlay networks that carry traffic from individual virtual machines over logical tunnels in encapsulated formats such as NVGRE and VXLAN. While this solves network scalability issues, it hides the TCP packet from the hardware offloading engines, placing higher loads on the host CPU. ConnectX-4 Lx effectively addresses this by providing advanced NVGRE and VXLAN hardware offloading engines that encapsulate and de-capsulate the overlay protocol header as well as offloads TCP stateless activities on the encapsulated packet
RDMA over Converged Ethernet (RoCE)
ConnectX-4 adapters supports RoCE specifications delivering low-latency and high-performance over Ethernet networks. The ConnectX-4 VPI adapter also supports IBTA RDMA (Remote Data Memory Access) for InfiniBand network performance. Leveraging data center bridging (DCB) capabilities as well as ConnectX-4 advanced congestion control hardware mechanisms, RoCE provides efficient low-latency RDMA services over Layer 2 and Layer 3 networks
Mellanox PeerDirect
PeerDirect communication provides high efficiency RDMA access by eliminating unnecessary internal data copies between components on the PCIe bus (for example, from GPU to CPU), and therefore significantly reduces application run time. ConnectX-4 advanced acceleration technology enables higher cluster efficiency and scalability to tens of thousands of nodes
Wired
PCI Express 3.0 Fiber
25000 Mbit/s
Internal

Especificaciones

Cantidad por paquete

1 pc(s)

Certificación

CE, FCC, VCCI, ICES, RCM

Certificados de conformidad

RoHS

Código del Sistema Armonizado (HS)

85176990

Color del producto

Green

Conector de fibra óptica

SFP28

Estándares de red

IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3az

Humedad relativa de funcionamiento (H-H)

0 - 90%

Interfaz

Fiber

Interfaz de host

PCI Express

Interno

Yes

Número de puertos de fibra

Seguridad

CB, cTUVus, CE

Sistemas operativos compatibles

Microsoft Windows Server 2012 (no SR-IOV support) Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition, U7 Red Hat Enterprise Linux 7, U2 SUSE LINUX Enterprise Server 11 for AMD64/EM64T, SP4** SUSE LINUX Enterprise Server 12, SP1** VMware ESXi 5.5, U3* VMware ESXi 6.0, U2*

Tecnología de conectividad

Wired

Temperatura de almacenamiento (T-T)

-40 - 70 °C

Temperatura de funcionamiento (T-T)

0 - 55 °C

Velocidad máxima de transferencia de datos

25000 Mbit/s

Versión PCI

3.0

Folleto

Abrir documento
