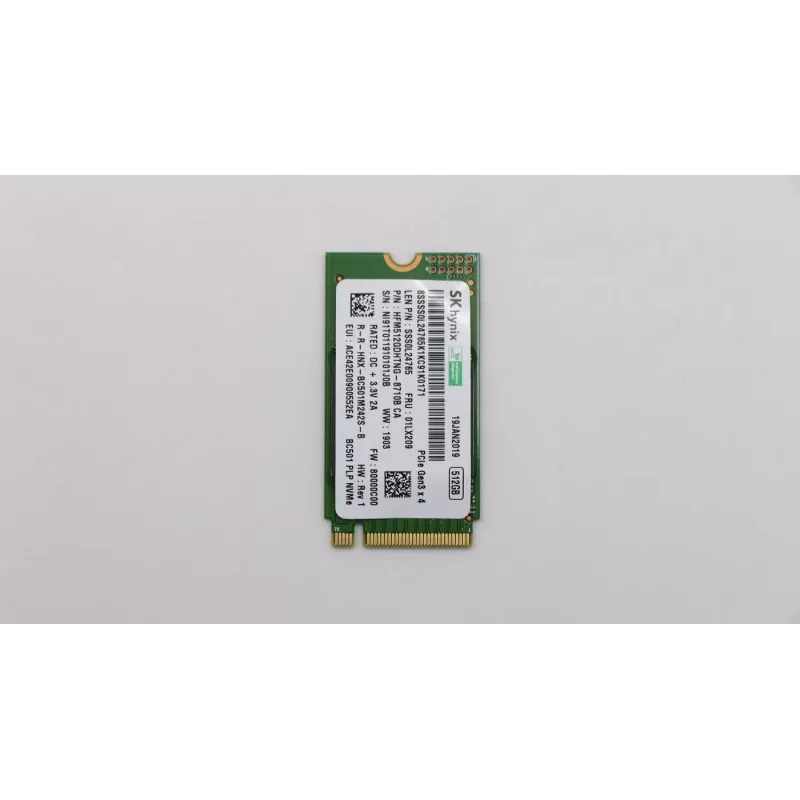

Lenovo SSD 512GB M.2 PCIe NVMe (01LX209)

Slow boot times and sluggish application loading can cripple productivity. The Lenovo SSD 512GB M.2 PCIe NVMe (01LX209) eliminates these bottlenecks with blazing-fast data transfer and rapid access, transforming your system's responsiveness.

Who is it for

This drive is ideal for professionals and enthusiasts upgrading Lenovo ThinkPads or any compatible system with an M.2 2280 slot. It suits users who demand quick file transfers, fast operating system boots, and seamless multitasking, as well as those needing hardware-based data security.

Main features

• 512GB storage capacity for operating system, applications, and essential files.
• M.2 2280 form factor for compact, high-performance integration.
• PCIe Gen3 x4 interface with NVMe 1.2 protocol for low-latency performance.
• Sequential read speeds up to 3000 MB/s and write speeds up to 1700 MB/s.
• Random read up to 360,000 IOPS and random write up to 330,000 IOPS.
• TCG Opal 2.0 self-encrypting drive (SED) for hardware-based data protection.
• High reliability with MTBF of 1,500,000 hours.
• Low power consumption: 5.7W active read, 5.8W active write, 0.03W idle.

Specifications

• Capacity: 512 GB
• Form Factor: M.2 2280
• Interface: PCIe Gen3 x4
• NVMe Version: 1.2
• Sequential Read: Up to 3000 MB/s
• Sequential Write: Up to 1700 MB/s
• Random Read (4KB, QD32): Up to 360,000 IOPS
• Random Write (4KB, QD32): Up to 330,000 IOPS
• NAND Flash: Samsung 3rd-gen V-NAND (TLC)
• Controller: Samsung Polaris
• MTBF: 1,500,000 hours
• Power Consumption (Active Read): ~5.7 W
• Power Consumption (Active Write): ~5.8 W
• Power Consumption (Idle): ~0.03 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Shock Resistance: 1500G (0.5ms half sine)
• Vibration Resistance (Operating): 20G (peak to peak, 10-2000Hz)
• Encryption: TCG Opal 2.0 (SED)
• Compatibility: Lenovo ThinkPads and other systems supporting M.2 2280 PCIe NVMe SSDs

Tips

Before installation, ensure your system's BIOS is updated and the M.2 slot supports PCIe NVMe. For optimal performance, keep at least 10% of the drive free. Use the drive's hardware encryption to protect sensitive data without performance loss.
