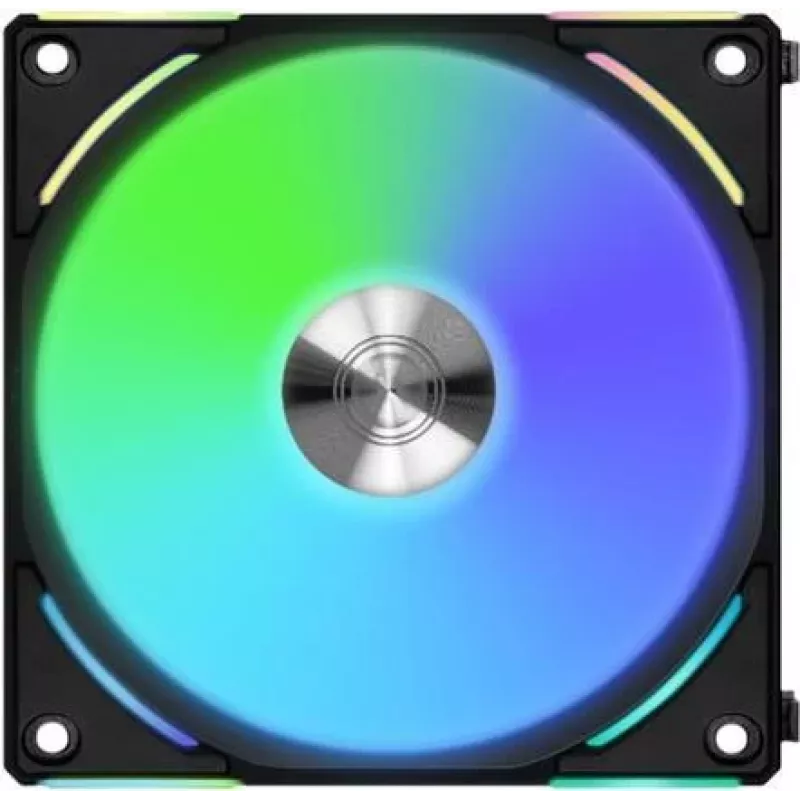

Lian Li UNI FAN AL120 V2 ventilador para carcasa 120mm ARGB PWM - negro

PC builders often struggle to balance airflow, noise, and RGB aesthetics, especially when managing multiple fans and their cables. The Lian Li UNI FAN AL120 V2 solves this by combining high-performance cooling with a daisy-chain interlocking design that reduces cable clutter and simplifies installation.

Who is it for

This fan is ideal for enthusiasts and system integrators who want a clean, high-airflow build with vibrant addressable RGB lighting. It suits mid-tower and full-tower cases, AIO radiators, and custom water-cooling loops where consistent performance and visual impact matter.

Main features

• 120mm fluid dynamic bearing fan with PWM control for speeds up to 2000 RPM
• 32 addressable RGB LEDs for vivid, customizable lighting effects
• Daisy-chain design: connect up to 6 fans with a single cable set, reducing clutter
• High static pressure of 2.8 mmH2O and airflow of 77.3 CFM for effective cooling
• 28mm thick frame optimizes blade geometry for improved performance
• Low noise level of 28.7 dB(A) at maximum speed
• Durable construction with 40,000-hour MTBF

Specifications

• Fan size: 120mm
• Fan thickness: 28mm
• Bearing type: Fluid Dynamic Bearing (FDB)
• Speed range: 0 - 2000 RPM (PWM)
• Max airflow: 77.3 CFM
• Max static pressure: 2.8 mmH2O
• Max noise level: 28.7 dB(A)
• LED type: Addressable RGB (ARGB), 32 LEDs
• Fan connector: 4-pin PWM
• LED connector: 3-pin ARGB (5V)
• Rated voltage: 12V DC (fan), 5V DC (LED)
• Rated current: 0.17A (fan), 0.7A (LED)
• Power consumption: 2.04W (fan), 3.5W (LED)
• MTBF: 40,000 hours
• Colour: Black

Tips

For best results, connect the fan PWM and ARGB cables to a compatible motherboard header or Lian Li controller. Use the included screws to mount the fan securely, and ensure adequate clearance for the 28mm thickness. Daisy-chain multiple fans in the same orientation for uniform airflow and lighting.
