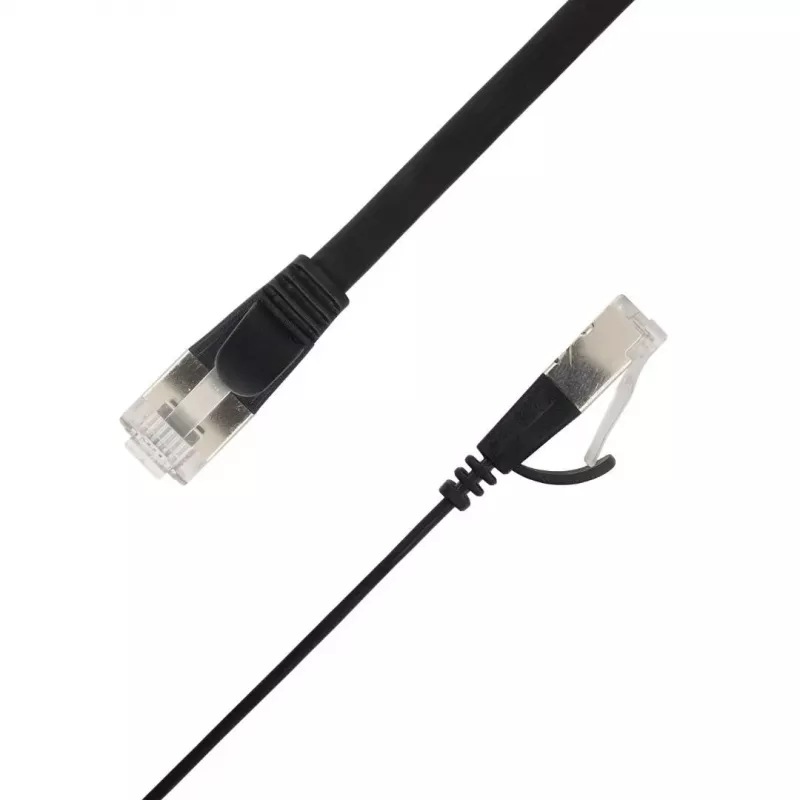

LINKIT Cable de red Ethernet plano U/FTP Cat6A, 4,5 m, negro STP-FL6A-00450-BLK

Flat Cat6A Ethernet patch cable with U/FTP shielding, delivering up to 10 Gigabit speeds and 500 MHz bandwidth over 4.5 meters. The flat design allows discreet routing under carpets or along baseboards, while individual foil shielding on each twisted pair protects against crosstalk and EMI.

Advantages

Oxygen-free copper conductors with 28 AWG gauge ensure reliable signal integrity. Gold-plated RJ45 connectors resist corrosion and maintain optimal contact. Supports Power over Ethernet (PoE) for simplified device deployment.

Suitable for

• 10GBASE-T network connections in offices and data centers
• High-density patch panels where flat cables save space
• PoE-powered devices such as IP cameras and wireless access points

Key specifications

• Cable standard: Cat6A (Category 6A)
• Cable type: U/FTP (Unshielded Foiled Twisted Pair)
• Cable form factor: Flat
• Length: 4.5 m
• Colour: Black
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor material: Oxygen-Free Copper (OFC)
• Conductor gauge: 28 AWG
• Connector plating: Gold-plated
• Jacket material: PVC
• PoE support: Yes
• Wiring standard: TIA/EIA-568-B.2-10
• Impedance: 100 Ohm
• Operating temperature: -20°C to 60°C
• Backward compatibility: Cat6, Cat5e, Cat5

Recommendations

Ideal for high-performance networking where flat cable routing is required. Verify that your equipment supports Cat6A specifications to achieve maximum throughput.
