LogiLink Cable de instalación Cat.6, U/UTP, 100 m, EconLine

Running Gigabit Ethernet over long distances in fixed installations often reveals the weaknesses of ordinary patch cables: signal degradation, crosstalk, and poor fire safety. The LogiLink Cat.6 Installation Cable solves these issues with solid copper conductors, tight twists, and an LSZH jacket, ensuring reliable 1000BASE-T performance up to 100 meters.

Who is it for

This cable is intended for professional network installers and system integrators who need a dependable, standards-compliant solution for permanent cabling in offices, data centers, and industrial environments. It is also suitable for advanced DIY users building a home network with future-proof performance.

Main features

• Cat.6 performance with bandwidth up to 250 MHz, supporting Gigabit Ethernet and beyond.
• U/UTP construction: 4 unshielded twisted pairs of solid bare copper, AWG 24/1, for minimal attenuation and crosstalk.
• LSZH (Low Smoke Zero Halogen) grey jacket for enhanced fire safety in public and confined spaces.
• CPR fire class Dca-s2,d2,a1, compliant with EU Construction Products Regulation.
• Supports Power over Ethernet (PoE, PoE+, 4PPoE) according to IEEE 802.3af/at/bt, enabling data and power over one cable.
• Supplied on a convenient reel-in-box for easy pulling and kink-free installation.

Specifications

• Cable type: Cat.6 U/UTP
• Length: 100 m
• Conductor: Solid bare copper, AWG 24/1
• Number of pairs: 4
• Outer diameter: 6.2 mm
• Jacket material: LSZH
• Jacket colour: Grey
• Bandwidth: Up to 250 MHz
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Fire class (CPR): Dca-s2,d2,a1
• Operating temperature: -20°C to +60°C
• Storage temperature: -20°C to +75°C
• Application: Fixed installation, Gigabit Ethernet (1000BASE-T), 100BASE-TX, 10BASE-T

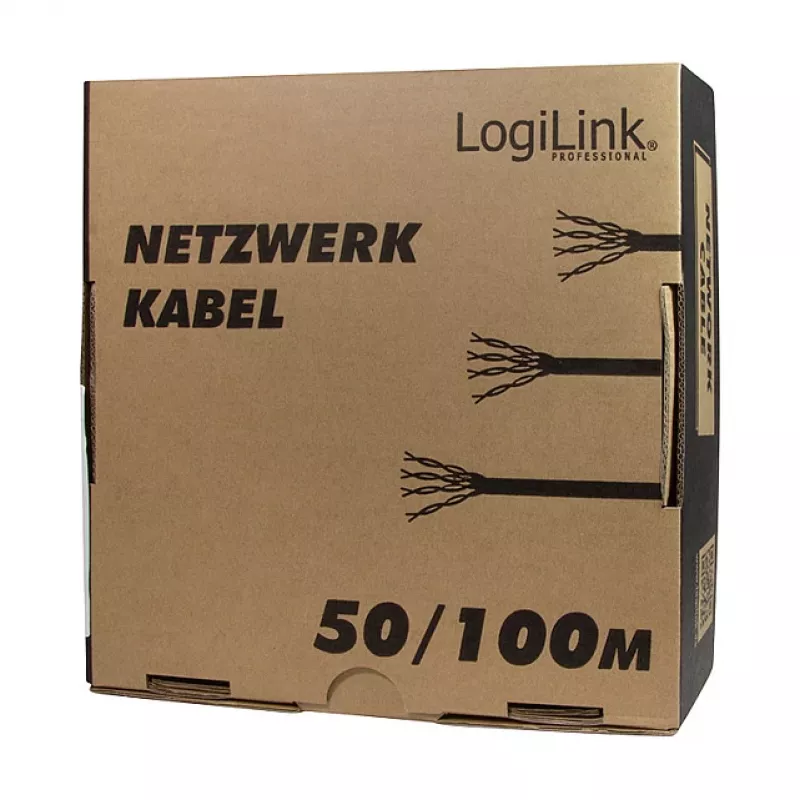

• Packaging: Reel in box

Tips

For best performance, avoid sharp bends and maintain the twist rate of pairs up to the termination point. Use compatible Cat.6 connectors and keystone jacks to preserve the channel rating. When installing in bundles, consider cable management to reduce alien crosstalk. Test the link with a certification tester to ensure compliance with Cat.6 standards.
