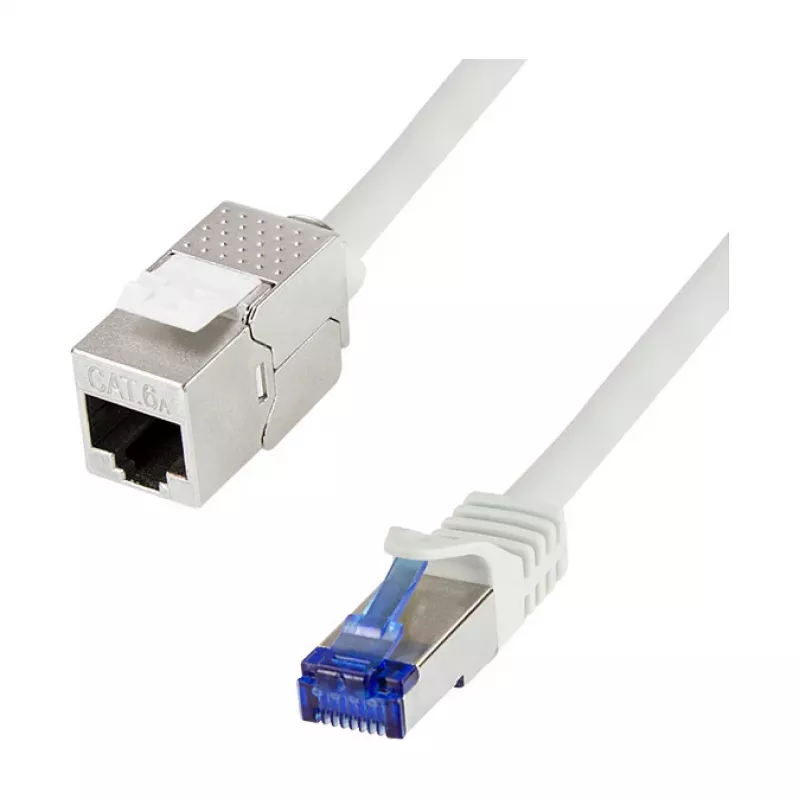

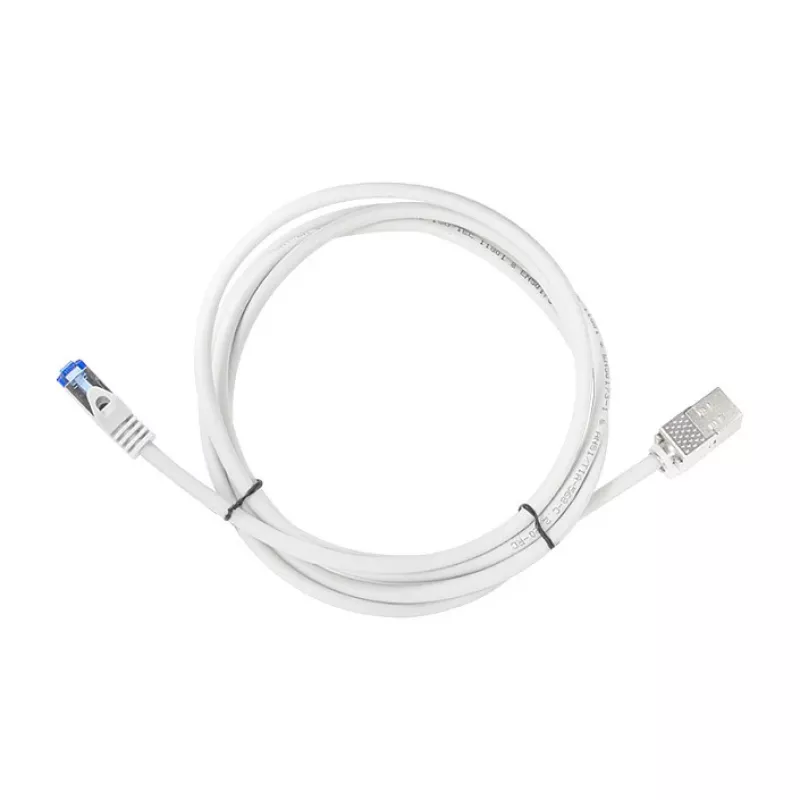

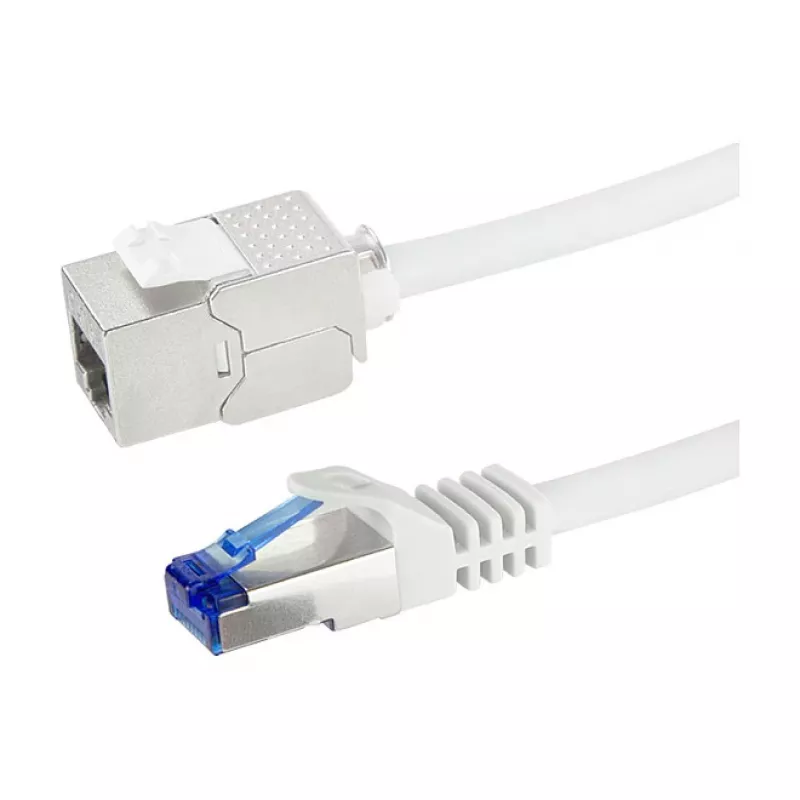

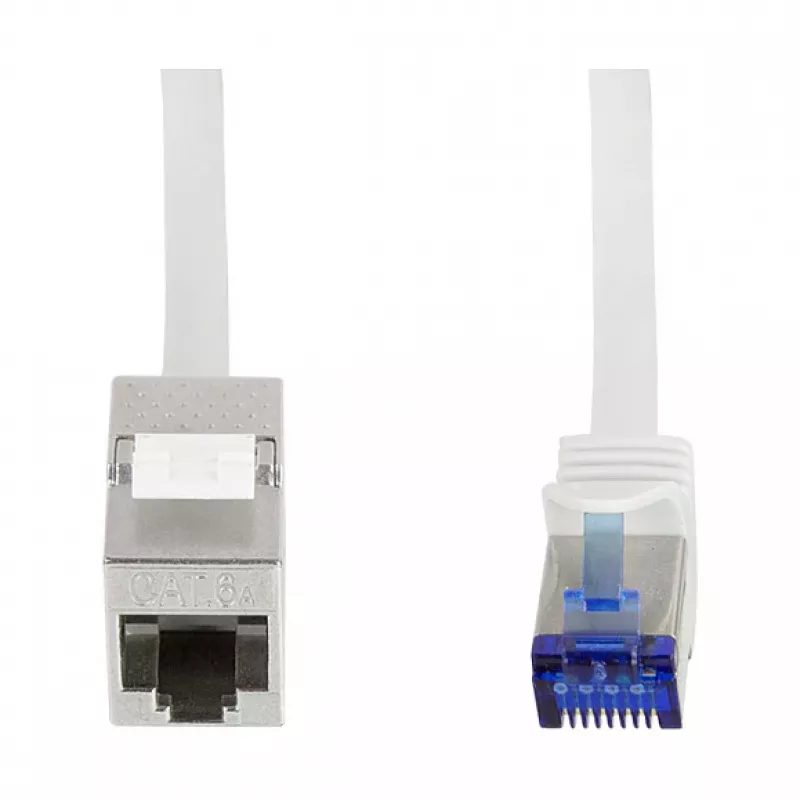

LogiLink CC5102S Cable de conexión Cat.6A S/FTP RJ45 – 15 m, gris (Consolidation Point)

Where standard patch cords fall short in dense, EMI-heavy environments, the LogiLink CC5102S consolidation point cable steps in with Cat.6A performance and a safety-first LSZH jacket. This 15-metre grey cord is built for structured cabling systems, bridging horizontal runs and active equipment with confidence.

Highlights

• Cat.6A / Class EA certified for 10 Gigabit Ethernet (10GBASE-T) at 500 MHz
• S/FTP (PiMF) shielding – individually screened pairs plus overall braid for superior EMI/RFI rejection
• LSZH (Low Smoke Zero Halogen) jacket reduces toxic emissions and smoke during combustion
• Gold-plated RJ45 connectors with 50µ plating for corrosion-resistant, reliable contacts
• Snap-in protection on the connector latch prevents accidental disconnection
• Stranded copper conductors (AWG 26/7) offer flexibility and long-term durability

In daily use

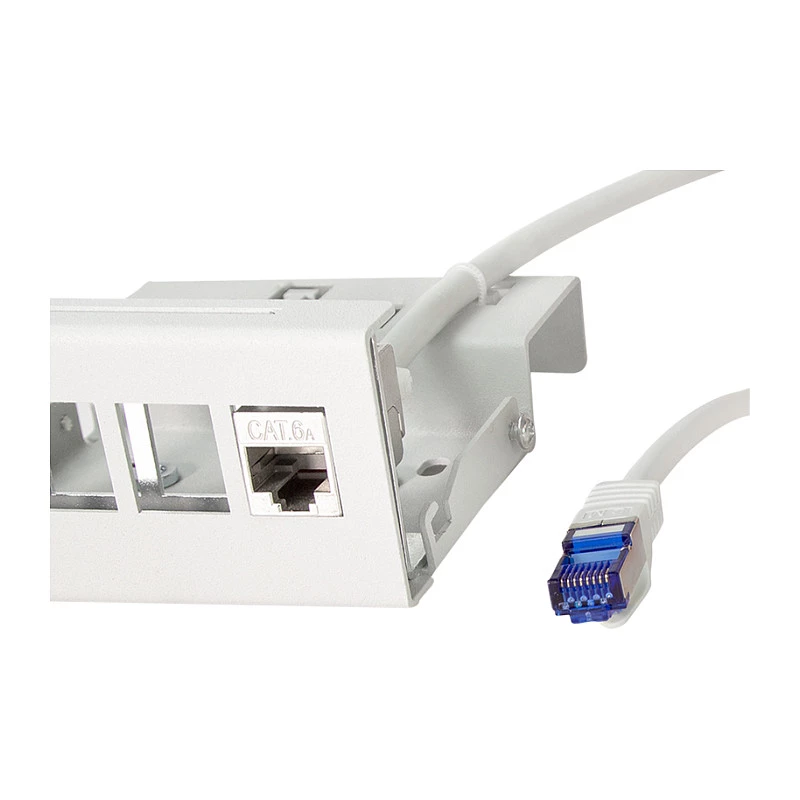

As a consolidation point cable, this cord is ideal for permanent link installations where horizontal cabling meets active equipment. Its grey colour blends unobtrusively into server racks and network cabinets, while the robust S/FTP construction keeps crosstalk and external interference at bay even in high-density environments. The 15-metre length provides ample reach for routing through cable trays or patch panels, and the snap-in latch ensures a secure connection that withstands vibration and accidental tugs.

Full specifications

• Product type: Consolidation Point Cable
• Ethernet category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 15 m
• Colour: Grey
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold (50µ)
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH
• Bandwidth: 500 MHz
• Data transfer rate: 10 Gbps
• Wiring standard: TIA/EIA 568B
• Outer diameter: 6.2 mm (approx.)
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Halogen free: Yes
• Flame retardancy: IEC 60332-1

Final note

For structured cabling where performance and fire safety are non-negotiable, the LogiLink CC5102S delivers a dependable, standards-compliant link.
