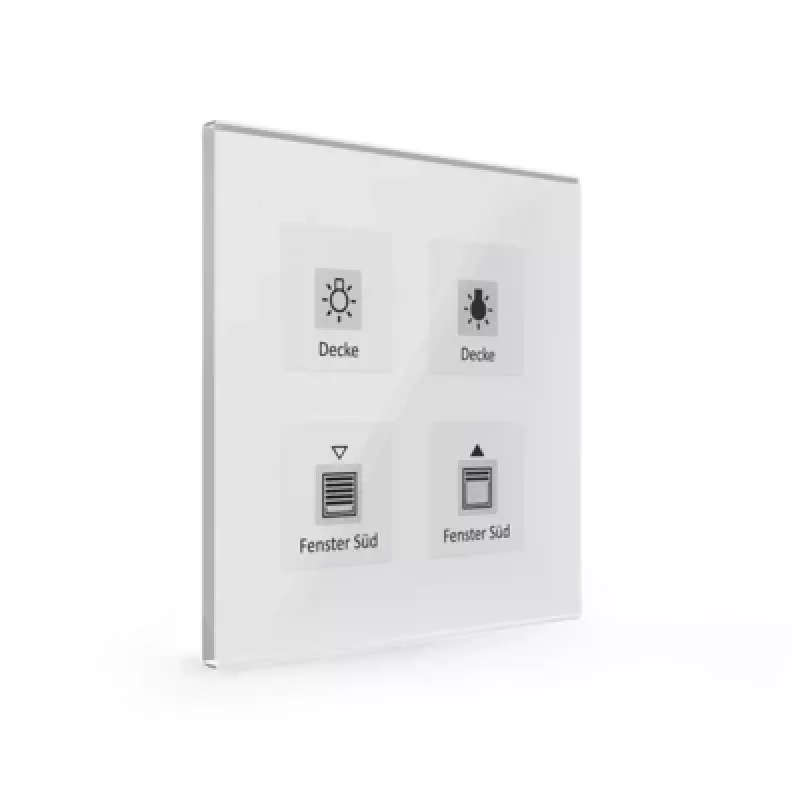

MDT BE-GTT4W.01 Pulsador de cristal Plus 4 canales blanco con sensor de temperatura

The MDT BE-GTT4W.01 is a KNX glass push-button plus with four individually programmable touch surfaces, integrating temperature, humidity, proximity, and brightness sensors. Its active color display shows icons, text, and values, while adjustable backlighting enhances visibility. The device supports switching, dimming, blind control, value transmission, scene recall, and HVAC functions, with an integrated room thermostat and up to four logic blocks.

Advantages

Combines multiple sensors and a display in one flush-mounted device, enabling comprehensive room automation. The glass surface offers a premium look and easy cleaning. Logic functions allow local automation without additional components.

Suitable for

• Smart homes and building automation
• Hotel rooms and offices
• Retrofit projects using standard wall boxes

Key specifications

• Touch surfaces: 4
• Integrated sensors: temperature, humidity, proximity, brightness
• Display: active color display
• KNX functions: switching, dimming, blind control, value transmitter, scene recall, HVAC
• Room thermostat: yes
• Logic blocks: up to 4 (AND, OR, XOR, GATE)
• Power supply: KNX bus voltage
• ETS version: ETS5 or higher
• Operating temperature: 0 to +45 °C
• Protection class: IP20

Recommendations

For optimal performance, ensure the KNX bus is properly installed and the device is configured with ETS5 or higher. Place the sensor away from direct sunlight and heat sources for accurate temperature readings.
