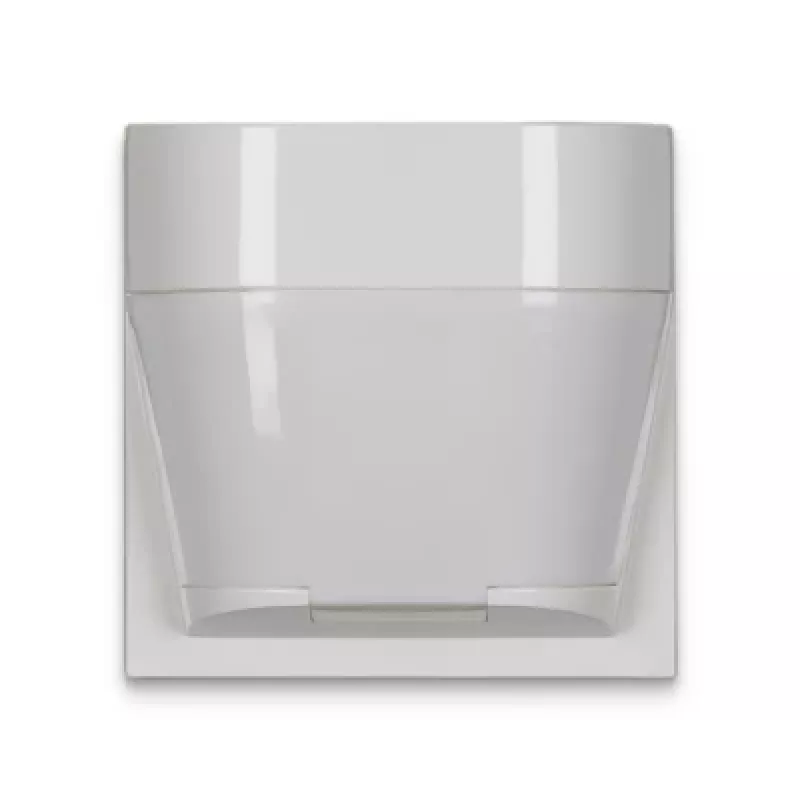

MDT KNX Detector de presencia 2,2 m TS 55, PSE-B552T02.02S

Detect presence across a 95 m² area with 360° coverage from a single flush-mounted device. The MDT KNX Presence Detector PSE-B552T02.02S integrates six sensors—presence, light, temperature, humidity, air pressure, and CO2—into one TS 55-compatible unit.

Overview

Designed for ceiling installation at a height of 2.2 m, this KNX presence detector monitors a circular zone approximately 11 m in diameter. It operates directly on the KNX bus (21-30 V DC) and consumes only 0.2 W. The integrated push button allows manual control or teach-in, while the LED provides local status indication.

What stands out

• Six built-in sensors eliminate the need for separate environmental monitors.
• Eight logic gates enable complex automation without extra modules.
• Constant light control and HVAC functions support energy-efficient building management.
• Flush-mounted design fits standard TS 55 switch ranges from Gira, Jung, Berker, and others.

Technical details

• Detection angle: 360°
• Detection area at 2.2 m height: approx. 11 m diameter (95 m²)
• Integrated sensors: presence (PIR), light, temperature, humidity, air pressure, CO2
• Bus system: KNX
• Operating voltage: 21-30 V DC (KNX bus)
• Power consumption: 0.2 W
• Protection class: IP20
• Material: plastic
• Colour: matt white
• Configuration: ETS

Our verdict

A compact, multi-sensor KNX presence detector that delivers comprehensive room automation in a familiar TS 55 form factor.
