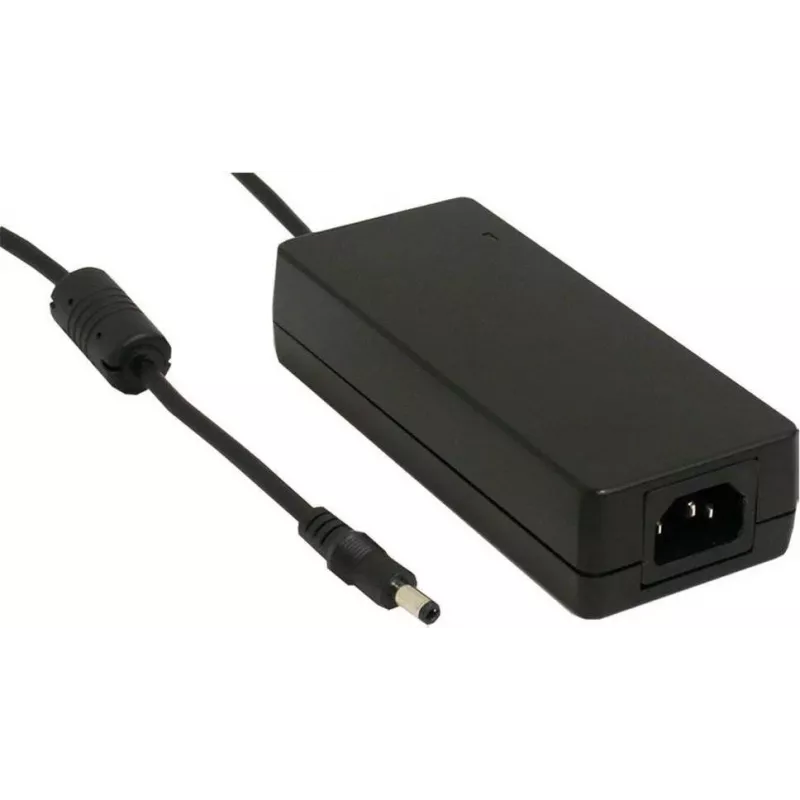

MEAN WELL GST90A48-P1M Fuente de alimentación adaptador 90W 48V DC con conector hueco 2,1x5,5mm

AC/DC desktop power adapter delivering 90W at 48V DC with a 2.1 x 5.5mm barrel plug, ideal for powering LED lighting, industrial equipment, and other 48V devices. The fully enclosed plastic case and free air convection cooling ensure reliable operation in a wide temperature range from -30°C to +70°C.

Advantages

High efficiency up to 91% and low no-load power consumption below 0.15W reduce energy costs. Comprehensive protection against overload, over voltage, short circuit, and over temperature safeguards connected equipment. Universal AC input (90-264V) with IEC320-C14 connector enables worldwide use.

Suitable for

• LED lighting systems
• Industrial automation
• Telecommunications equipment
• Test and measurement instruments

Key specifications

• Output power: 90W
• Output voltage: 48V DC
• Output current: 1.88A
• Input voltage: 90-264V AC
• DC connector: 2.1 x 5.5mm barrel plug, center positive
• Efficiency: up to 91%
• Ripple & noise: 150mVp-p
• Operating temperature: -30°C to +70°C
• MTBF: 300,000 hours

Recommendations

For reliable 48V power in harsh environments, pair with a suitable AC power cord (sold separately). Verify connector polarity before use.
