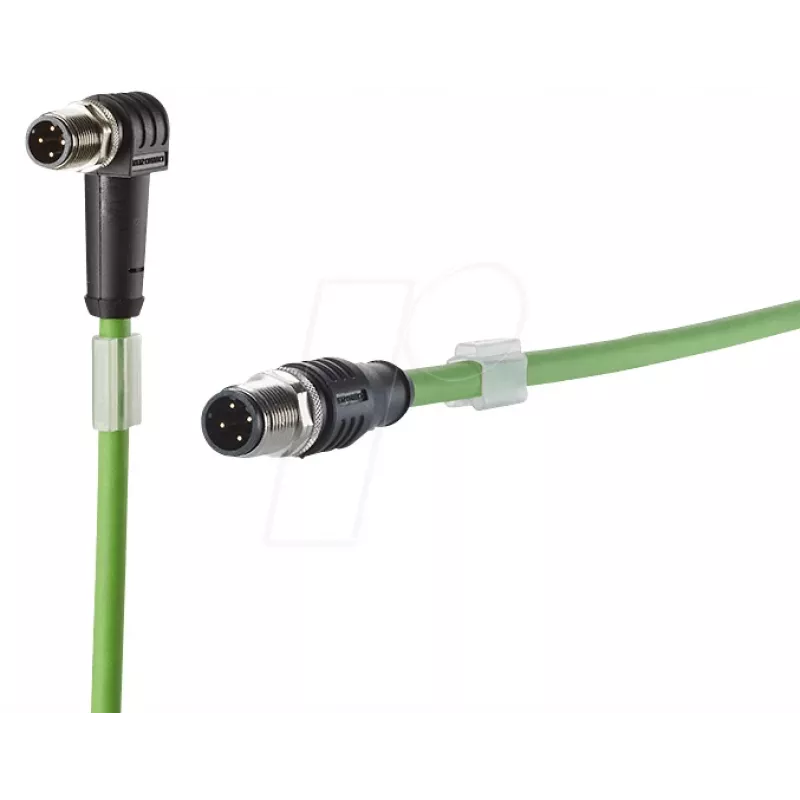

METZ CONNECT 142M1D19020 Cable de conexión Cat5e M12, 2 m, verde, codificado D, apantallado, PUR

The METZ CONNECT 142M1D19020 is a high-quality industrial Ethernet patch cable designed for reliable data transmission in demanding environments. With Cat5e performance, M12 D-coded connectors, and a shielded PUR jacket, this cable ensures robust connectivity for PROFINET and Fieldbus applications.

Advantages

This cable offers excellent durability and flexibility thanks to its PUR jacket, which is resistant to oils, chemicals, and abrasion. The IP67-rated mated connectors provide protection against dust and water ingress, making it ideal for factory automation and harsh industrial settings. The shielded F/UTP construction minimizes electromagnetic interference, ensuring stable data transfer at 10/100 Mbps.

Suitable for

• Industrial Ethernet networks
• PROFINET and Fieldbus systems
• Automation and control applications
• Harsh environments requiring IP67 protection

Key specifications

• Cable type: Ethernet Patch Cable
• Cable standard: Cat5e
• Connector 1: M12, Male, D-coded
• Connector 2: M12, Male, D-coded
• Cable length: 2 m
• Cable colour: Green
• Shielding: Shielded (F/UTP)
• Jacket material: PUR (Polyurethane)
• IP rating (mated): IP67
• Data transfer rate: 10/100 Mbps
• Frequency bandwidth: 100 MHz
• Number of positions: 4-pin
• Conductor material: Copper
• Operating temperature: -20°C to +80°C
• Halogen free: Yes

Recommendations

For optimal performance in industrial environments, pair this cable with compatible M12 D-coded devices and ensure proper mating to maintain IP67 protection. Suitable for use in cable trays, machinery, and control cabinets.
