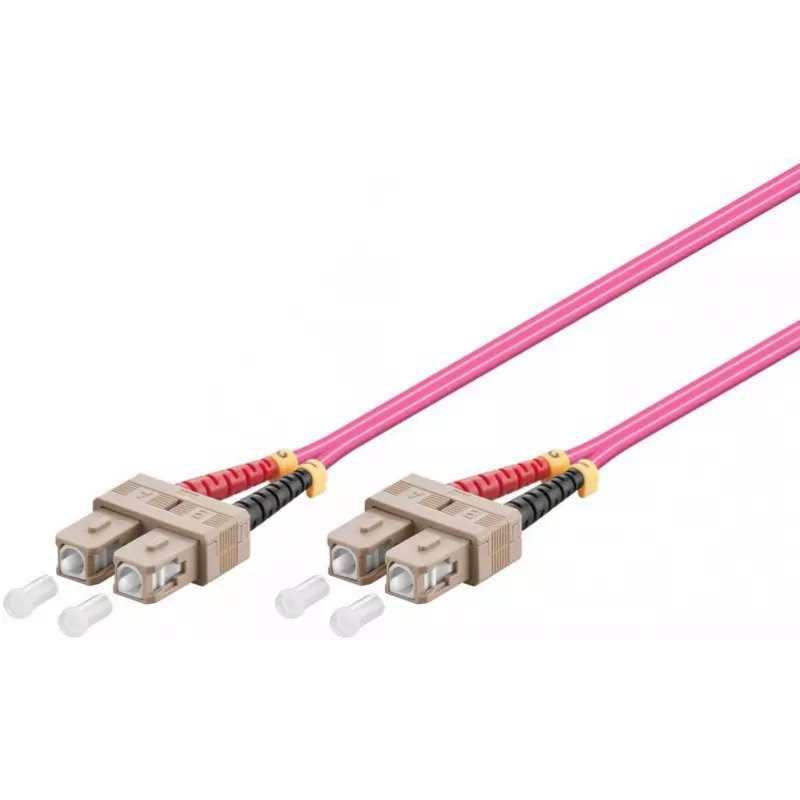

Microconnect FIB222010-4 Cable InfiniBand/fibra óptica 10 m SC rosa

The Microconnect FIB222010-4 InfiniBand fibre optic cable is a 10 m OM4 multimode patch cord with SC connectors and a 50/125 µm core/cladding. Designed for high-speed and legacy networks, this cable supports full duplex communication and is suitable for 10G, 40G and 100G Ethernet and InfiniBand links used in data centers and networking environments.

Advantages

The OM4 multimode construction provides higher bandwidth and extended reach compared with lower-grade multimode fibres, and the LSZH jacket improves safety in confined spaces. SC connectors ensure reliable, easy mating and compatibility with equipment using SC interfaces. The cable conforms to common industry standards such as Telcordia, EIA/TIA and IEC, making it appropriate for professional installations.

Suitable for

• 40G BiDi SR and 10G SR multimode transceiver connections
• InfiniBand and high-speed Ethernet links in data centers
• QSFP+, SFP+ ports and other duplex multimode interfaces

Key specifications

• Length: 10 m
• Fibre type: OM4 multimode (50/125 µm)
• Connectors: SC — SC (duplex)
• Jacket: LSZH
• Supports: 10G/40G/100G Ethernet, InfiniBand
• Standards: Telcordia, EIA/TIA, IEC compliant

How to use

Verify that devices use SC duplex interfaces and that OM4 multimode fibre is supported by the transceivers. Route the cable avoiding sharp bends and tight bundles, then insert SC connectors into the corresponding SC ports until they click. Ensure proper fiber handling and keep connector endfaces clean before mating to maintain signal quality.

Recommendations

For best performance, use OM4 patch cords for short- to medium-range multimode links in data centers and network racks, pair them with compatible OM4-rated transceivers (10G SR, 40G BiDi SR, QSFP+, SFP+), and handle connectors with dust caps removed only at installation to prevent contamination.
