MicroConnect FIB222010 Cable de conexión de fibra óptica multimodo dúplex OM2 SC/UPC a SC/UPC, LSZH, azul, 10m

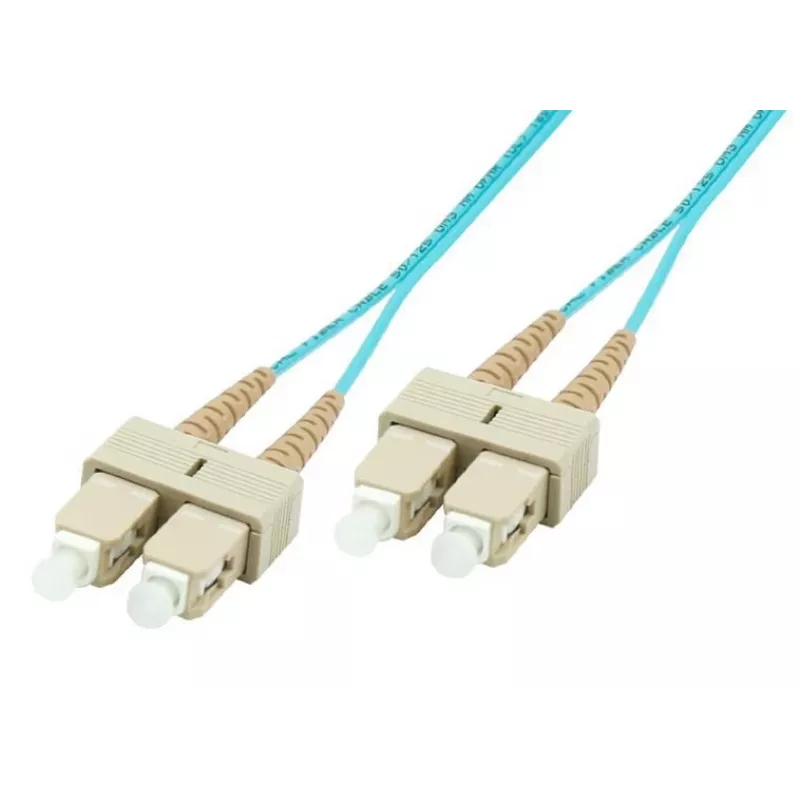

High-speed data links over longer distances demand a cable that maintains signal integrity without compromise. The MicroConnect FIB222010 is a 10-meter duplex multimode fiber optic patch cable terminated with SC/UPC connectors on both ends, engineered for reliable performance in enterprise networks, data centers, and telecommunication rooms. Its OM2 50/125µm core supports Gigabit Ethernet and beyond, while the blue LSZH jacket ensures safety in dense installations.

Who is it for

Network administrators, system integrators, and IT professionals who need a dependable, low-loss fiber connection between switches, routers, patch panels, or media converters. It is equally suited for backbone cabling, storage area networks, and high-bandwidth workstation links where copper cannot meet distance or EMI requirements.

Main features

• 10-meter length with SC/UPC to SC/UPC connectors for standard fiber infrastructure
• OM2 multimode fiber (50/125µm) optimized for 850nm and 1300nm wavelengths
• Duplex construction with crossed A-B polarity for proper transmit/receive alignment
• Low insertion loss (≤0.3 dB) and high return loss (≥30 dB) for clean signal transmission
• LSZH (Low Smoke Zero Halogen) blue jacket for fire safety in enclosed spaces
• Compliant with RoHS and CE standards

Specifications

• Cable type: Fiber optic patch cable, duplex
• Fiber mode: Multimode OM2
• Core/cladding diameter: 50/125 µm
• Connectors: SC/UPC (male) to SC/UPC (male)
• Cable length: 10 m
• Jacket material: LSZH
• Cable colour: Blue
• Insertion loss (max): 0.3 dB
• Return loss (min): 30 dB
• Attenuation at 850 nm: 3.0 dB/km
• Attenuation at 1300 nm: 1.0 dB/km
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Minimum bend radius: 30 mm
• Compliance: RoHS, CE

Tips

Always inspect and clean connector end faces before mating to prevent contamination and signal loss. Avoid exceeding the minimum bend radius during installation to maintain fiber integrity. For best performance, pair with OM2-compatible transceivers and patch panels.
