Microconnect FIB422003P cable InfiniBand/fibra óptica 3 m LC SC violeta

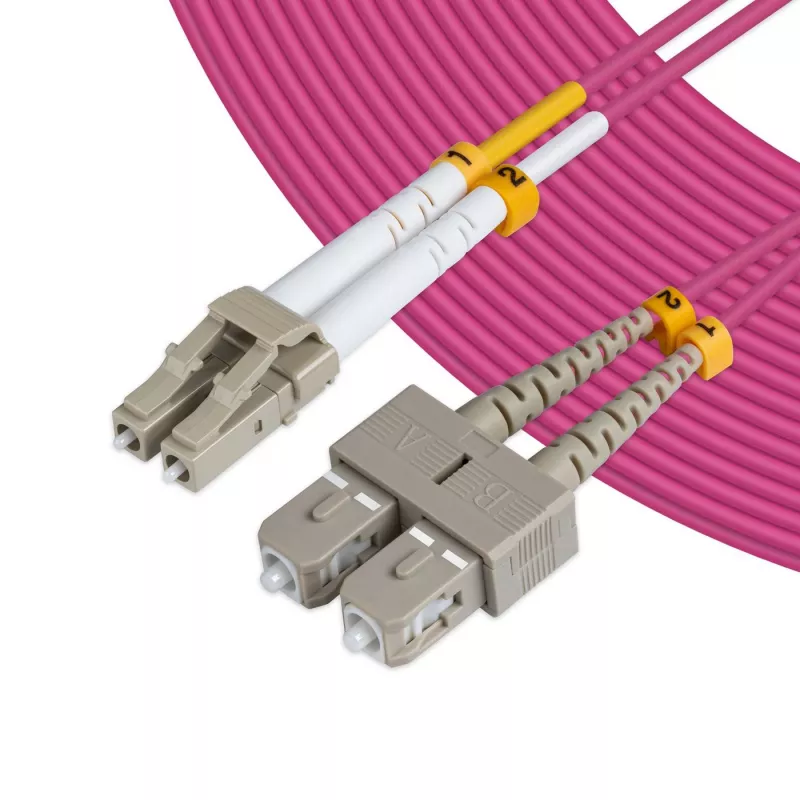

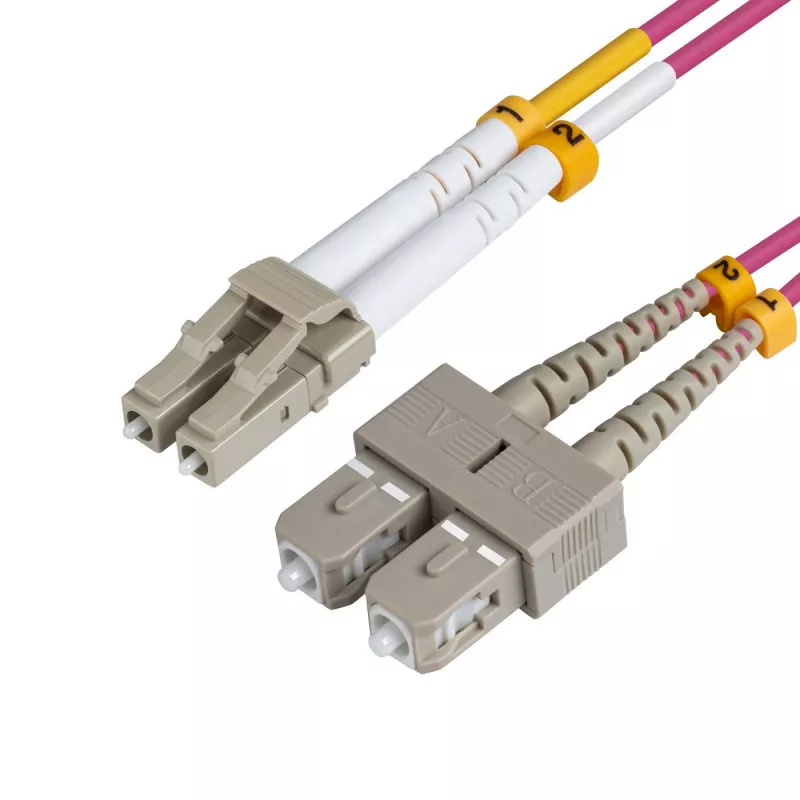

The Microconnect FIB422003P is a 3 m fibre optic cable with LC and SC connectors, using OM4 50/125 µm multimode bend-insensitive fibre. Designed for high-speed data links, it supports 10G, 40G and 100G Ethernet transceivers (for example 10G SR, 10G LRM and SFP+ modules) and provides low attenuation when bent or twisted. The cable is full duplex, comes in violet colour and is suitable for structured cabling in data centres and enterprise networks.

Advantages

OM4 multimode fibre with 50/125 µm core offers improved bandwidth and lower loss under bending compared with older multimode types, making installation and routing easier in confined spaces. The use of LSZH jacket material reduces smoke and toxic gases in case of fire and the LC–SC connector combination ensures broad compatibility with common transceivers and patch panels.

Suitable for

• 10G Ethernet (SR/LRM) connections
• 40G and 100G multimode links
• Interconnects between switches, transceivers and patch panels
• High-density data centre cabling and enterprise networks

Key specifications

• Length: 3 m
• Fibre type: OM4 multimode, 50/125 µm
• Connectors: LC to SC (full duplex)
• Jacket: LSZH
• Colour: Violet
• Weight: 0.026 kg

How to use

Connect the LC and SC ends to matching ports on your transceivers or network devices, ensuring correct orientation for full duplex operation. Route the cable without sharp kinks and avoid excessive tensile force; the bend-insensitive OM4 fibre tolerates tighter bends but standard handling practices should be followed. Verify link status on the connected devices and perform optical testing if precise attenuation or insertion loss measurements are required.

Recommendations

For best performance, use this OM4 LC–SC patch cable with compatible multimode transceivers and adhere to manufacturer guidelines for connector cleaning and fiber handling. Keep bend radius within recommended limits and use appropriate cable management in racks and patch panels.
