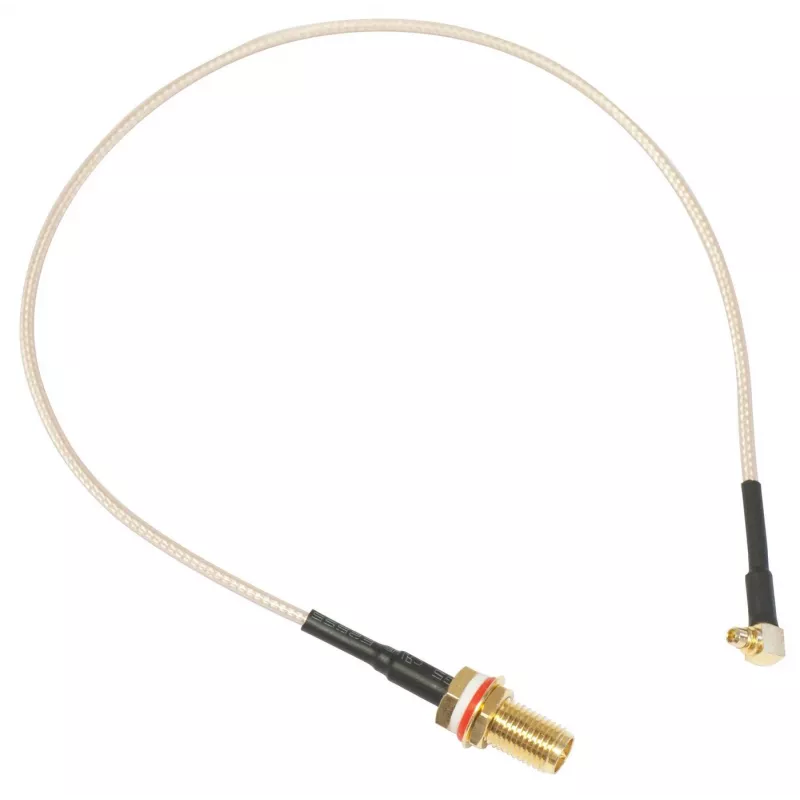

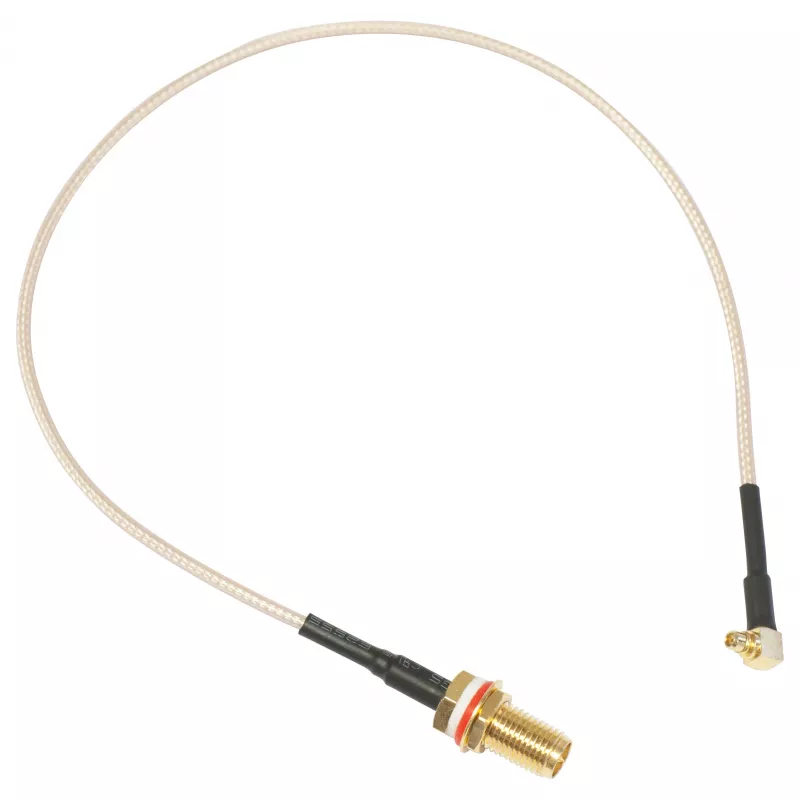

MikroTik ACMMCXRPSMA cable pigtail coaxial 0,26 m MMCX a RP-SMA conector macho, 50 Ohm, RG178, negro

Field technicians extending antenna reach on MikroTik wireless devices will appreciate this 0.26 m MMCX to RP-SMA pigtail cable. It bridges the compact internal MMCX connector on routerboards and access points to standard RP-SMA antennas, enabling reliable external antenna connections in tight enclosures, rooftop boxes, or custom RF builds. The short run minimizes signal loss while the flexible RG178 coax with PTFE dielectric handles tight bends without cracking, making it ideal for space-constrained installations where signal integrity cannot be compromised.

Key specifications

• Connector 1: MMCX Male
• Connector 2: RP-SMA Male
• Cable Length: 0.26 m
• Impedance: 50 Ohm
• Cable Standard: RG178
• Jacket Color: Black
• Conductor Material: Copper
• Dielectric Material: PTFE
• Outer Diameter: 1.8 mm
• Frequency Range: DC - 6 GHz
• Connector Plating: Gold-plated
• Operating Temperature: -40°C to +85°C

Why choose it

This pigtail is built for reliability in wireless networks. The gold-plated connectors resist corrosion and maintain stable contact, ensuring consistent performance even in humid or outdoor environments. The black jacket blends discreetly into equipment racks and outdoor housings, while the rugged construction withstands harsh temperatures from freezing cold to extreme heat. Whether you're adding an external antenna to a routerboard or repairing a broken pigtail, this cable provides a clean, professional connection that field technicians and hobbyists can trust.

Ideal use cases

• Extending antenna reach on MikroTik wireless devices with MMCX ports
• Custom RF setups in rooftop enclosures or indoor access points
• Replacing damaged pigtails in existing installations
• Connecting external antennas to routerboards for improved signal coverage

Good to know

The MMCX male connector snaps securely into the device, while the RP-SMA male end screws onto most common antennas, ensuring a versatile and secure connection. With a frequency range up to 6 GHz, this cable supports a wide range of wireless applications, from Wi-Fi to other RF systems.
