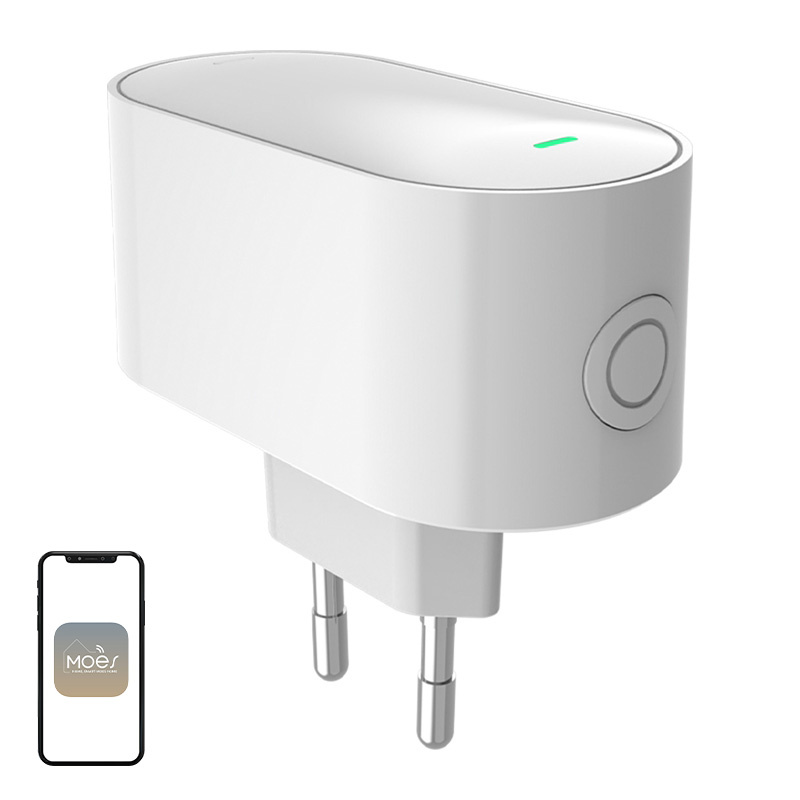

MOES MPH-S1 Gateway Mesh Wi-Fi/ZigBee/Bluetooth

The MOES MPH-S1 stands apart as a triple-protocol smart home hub, uniting Wi-Fi, ZigBee 3.0, and Bluetooth Mesh in a single compact device. This convergence eliminates the need for multiple bridges, allowing diverse smart devices to operate under one unified control point.

Highlights

• Triple-protocol support: Wi-Fi, ZigBee 3.0, and Bluetooth Mesh
• Connect up to 128 ZigBee devices and 50 Bluetooth Mesh devices
• Works with Tuya Smart and Smart Life apps
• Voice control via Amazon Alexa and Google Home
• Compact white ABS housing with LED status indicator

In daily use

The MPH-S1 connects to your home's 2.4 GHz Wi-Fi network and serves as a central coordinator for your smart ecosystem. ZigBee devices pair automatically and form a robust mesh, while Bluetooth Mesh extends coverage for compatible sensors and actuators. The hub is powered by a standard 5V/1A micro USB supply and operates reliably across a wide temperature range from -10°C to 50°C.

Full specifications

• Wireless protocols: Wi-Fi, ZigBee 3.0, Bluetooth Mesh
• Wi-Fi standard: IEEE 802.11 b/g/n, 2.4 GHz
• ZigBee standard: ZigBee 3.0
• Bluetooth standard: BLE Mesh
• Power input: DC 5V/1A, micro USB
• Max ZigBee devices: 128
• Max Bluetooth devices: 50
• Operating temperature: -10°C to 50°C
• Operating humidity: 0% to 95% RH (non-condensing)
• Housing material: ABS
• Security encryption: WPA/WPA2

Final note

The MPH-S1 is a future-ready hub that simplifies multi-protocol smart home setups, offering extensive device capacity and broad ecosystem compatibility.
