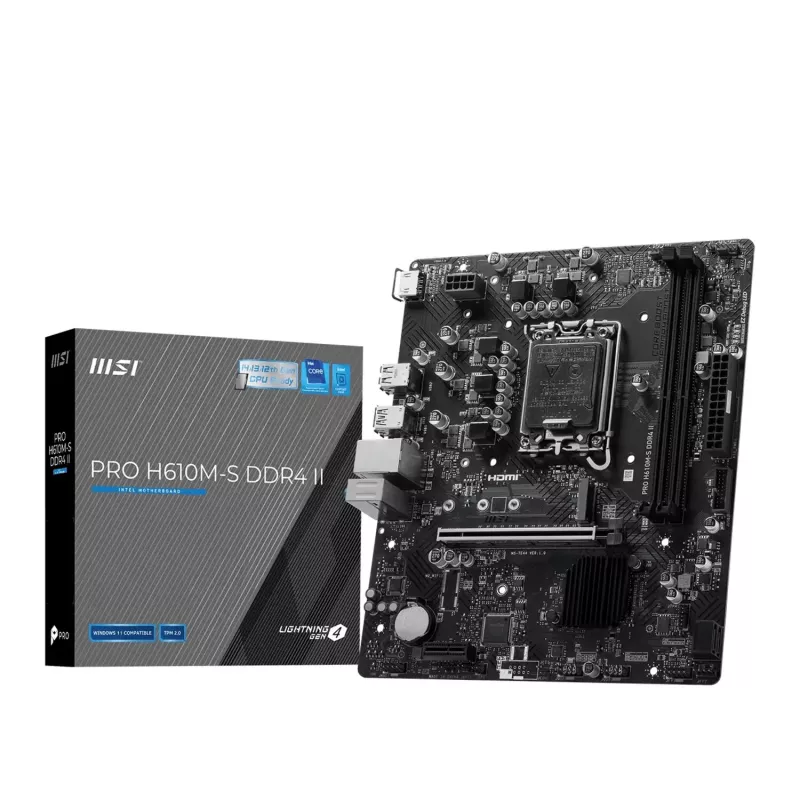

MSI PRO H610M-S DDR4 II placa base LGA1700 Micro-ATX

The MSI PRO H610M-S DDR4 II stands out as a no-nonsense foundation for Intel's latest desktop platforms, delivering essential features without the bloat that drives up cost. Built around the LGA1700 socket and Intel H610 chipset, it supports 14th, 13th, and 12th Gen Core processors, Pentium Gold, and Celeron CPUs, making it a versatile pick for office PCs, home servers, or budget-conscious builds. Its Micro-ATX footprint fits a wide range of cases, while the dual DDR4 slots allow up to 64GB of memory at speeds up to 3200 MHz (OC), ensuring smooth multitasking and responsive performance for everyday computing.

Highlights

• Supports Intel Core 14th/13th/12th Gen, Pentium Gold, and Celeron processors on LGA1700
• Dual DDR4 DIMM slots, up to 64GB capacity, 3200 MHz (OC) speed
• PCIe 4.0 x16 slot for modern graphics cards, plus PCIe 3.0 x1 for expansion
• One M.2 slot (PCIe 3.0 x4) for fast NVMe SSDs, plus four SATA 6Gb/s ports
• Rear I/O: HDMI 1.4 and VGA for dual displays, two USB 3.2 Gen 1, four USB 2.0
• Realtek ALC897 7.1-channel audio and Realtek RTL8111H Gigabit LAN
• UEFI AMI BIOS with user-friendly interface for easy configuration

In daily use

This board is engineered for reliability and simplicity. The 24-pin ATX and 8-pin ATX 12V power connectors ensure stable power delivery, while the Micro-ATX layout keeps cable management straightforward. The M.2 slot accommodates 2242, 2260, and 2280 SSDs, enabling fast boot times and quick application loading. With four SATA ports, you can add ample storage for media libraries or backups. The rear panel offers both HDMI and VGA outputs, so you can connect modern monitors or legacy displays without adapters. Audio is handled by the Realtek ALC897 codec, providing 7.1-channel high-definition sound for immersive multimedia. Networking is covered by the Realtek RTL8111H Gigabit LAN controller, delivering stable wired connectivity for online work and streaming.

Full specifications

• CPU Socket: LGA1700
• Chipset: Intel H610
• Memory: 2x DDR4 DIMM, max 64GB, up to 3200 MHz (OC)
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Storage: 1x M.2 (PCIe 3.0 x4, 2242/2260/2280), 4x SATA 6Gb/s
• Rear USB: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A
• Video Outputs: 1x HDMI 1.4, 1x VGA (D-Sub)
• Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio
• LAN: Realtek RTL8111H Gigabit LAN
• Power Connectors: 1x 24-pin ATX, 1x 8-pin ATX 12V
• BIOS: UEFI AMI BIOS
• Form Factor: Micro-ATX

Final note

The MSI PRO H610M-S DDR4 II delivers exactly what a value-oriented build needs: solid performance, essential connectivity, and the trusted MSI build quality, all in a compact package that won't break the bank.
