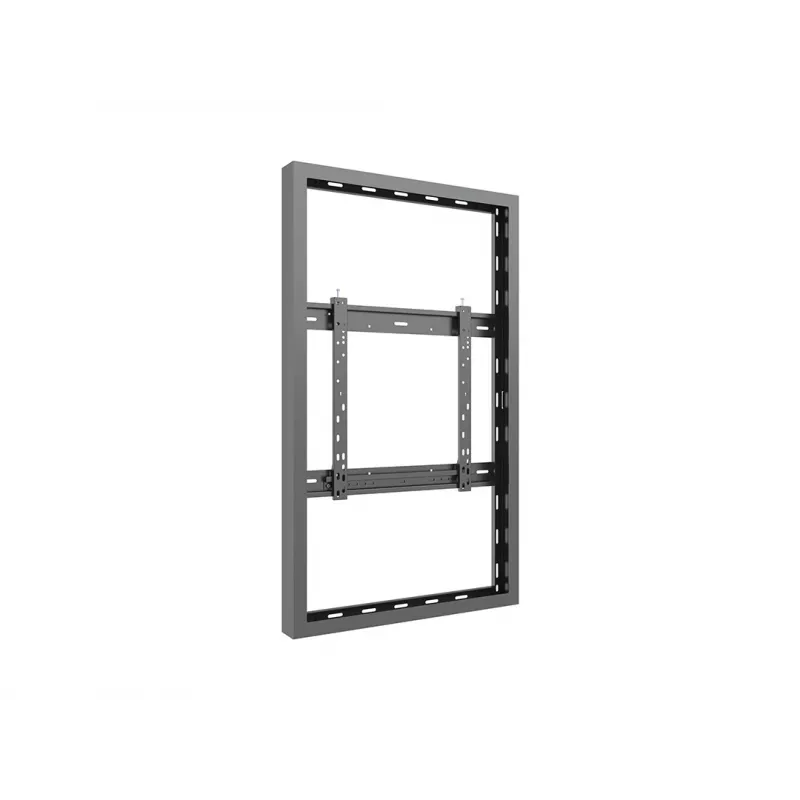

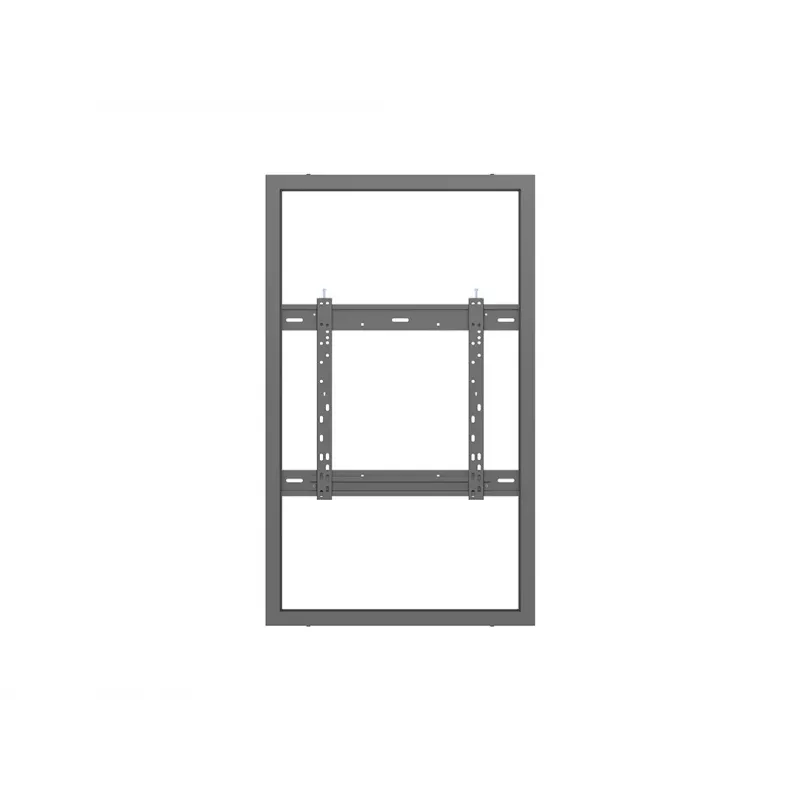

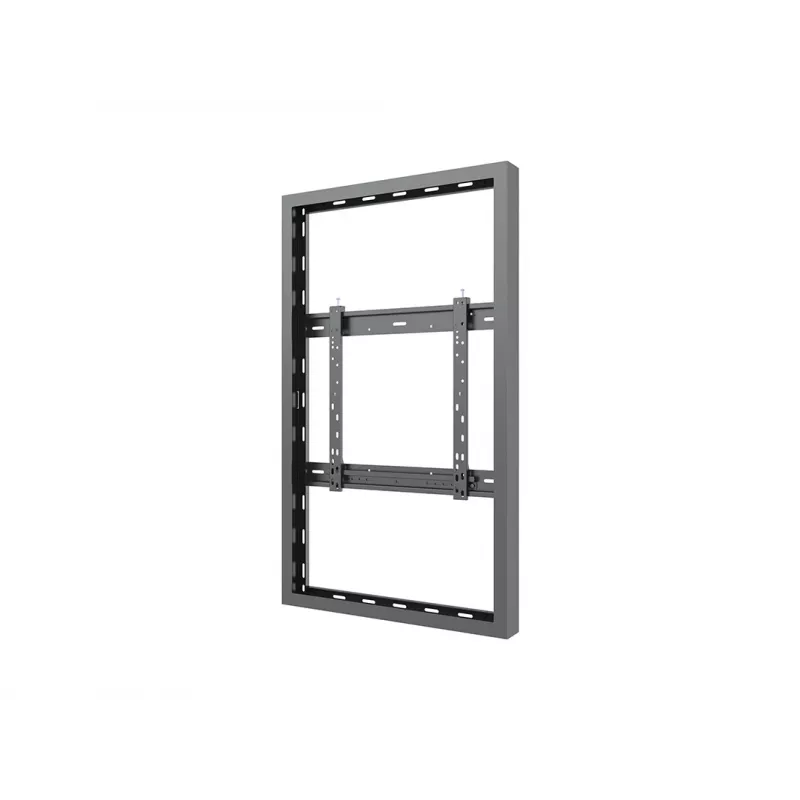

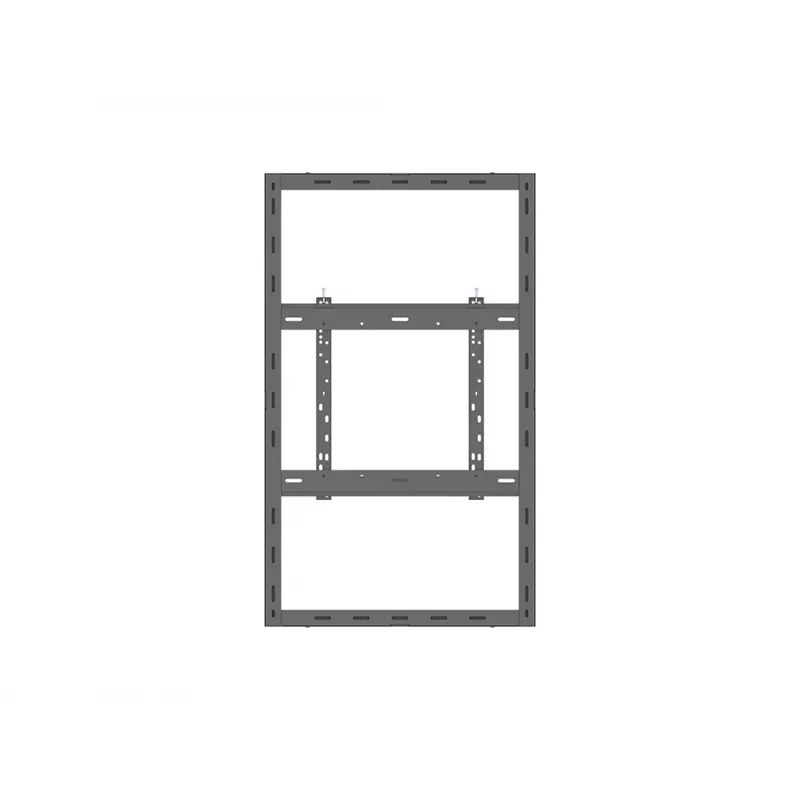

Multibrackets M Pro Series Carcasa 50" Pared Medium Negro Acero Horizontal/Vertical

The Multibrackets M Pro Series Enclosure 50" Wall Medium Black is a steel casing for 50" signage displays that supports both landscape and portrait mounting. The enclosure features a depth-adjustable exterior frame, reversible hinges, integrated passive cooling vents and options for active thermal management. It is designed to accommodate most brands of digital signage, compensate for uneven walls, and provide unobstructed service access while protecting the installed display with tamperproof security hardware.

Advantages

This Pro Series enclosure offers a minimalistic, low-profile appearance in black steel and a versatile mounting design that accepts multiple display depths and orientations. The reversible hinges and depth-adjustable frame simplify installation and maintenance, while passive cooling (with optional active thermal management) helps keep internal temperatures controlled. The enclosure is built to fit a wide range of displays and includes security hardware to protect the device.

Suitable for

• Retail and shop window digital signage
• Corporate lobbies and reception areas
• Public information displays in transit hubs
• Exhibition and event installations

Key specifications

• Maximum screen size: 50"
• Maximum weight capacity: 25 kg
• Maximum VESA mount: 600 x 400

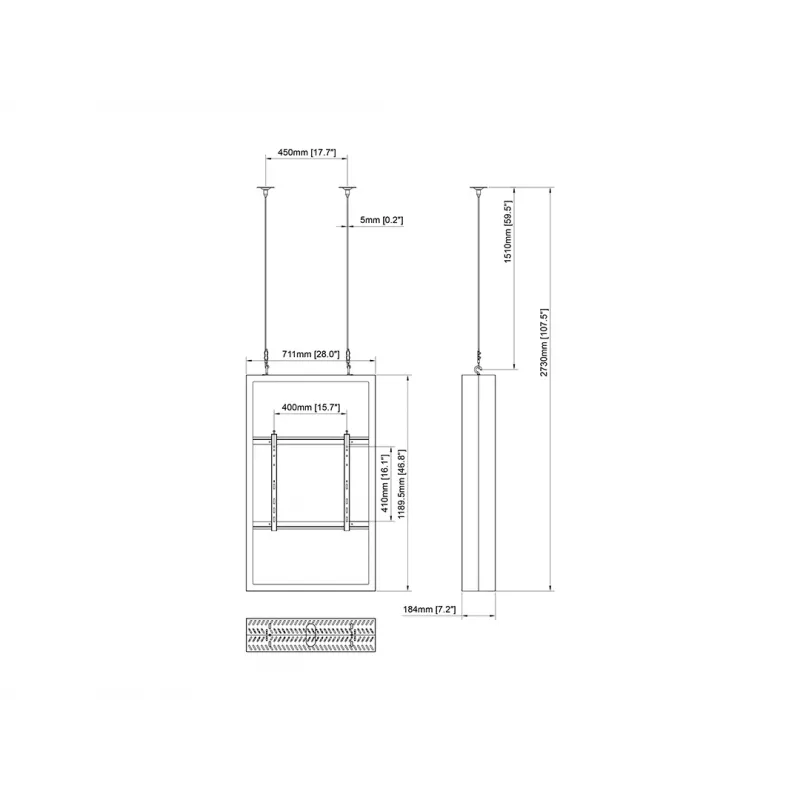

• Dimensions (W×D×H): 710 mm × 100 mm × 1190 mm
• Product colour: Black
• Product weight: 9 kg

How to use

Choose the required orientation (landscape or portrait) and adjust the exterior frame depth to fit the display thickness. Mount the enclosure to a suitable wall using appropriate fixings for substrate and load, following the VESA alignment. Use the reversible hinges for a preferred service access direction. Install the display inside the enclosure, secure with the supplied tamperproof hardware, and connect power and signal cables through the provided cable management openings.

Recommendations

Install on structurally sound walls and verify that wall fixings and anchors are rated for the combined weight of the enclosure and display (up to 25 kg). Ensure adequate ventilation space and, if operating in high ambient temperatures or enclosed environments, consider the active thermal management option. Follow local regulations for public display installations and use authorized service personnel for maintenance.
