Multibrackets M Pro Series kiosco negro 15-32" 20 kg de capacidad

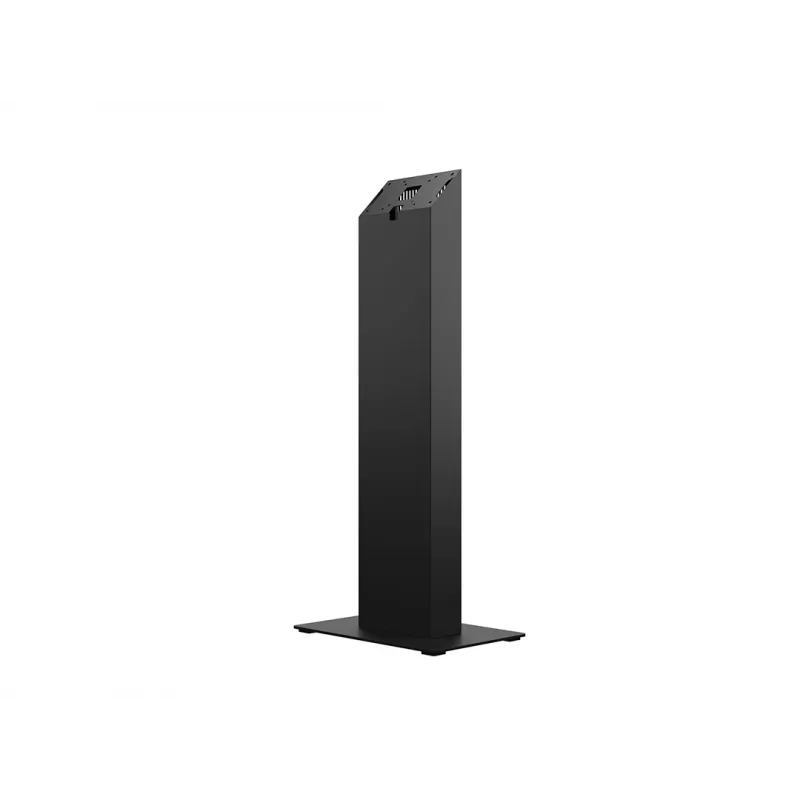

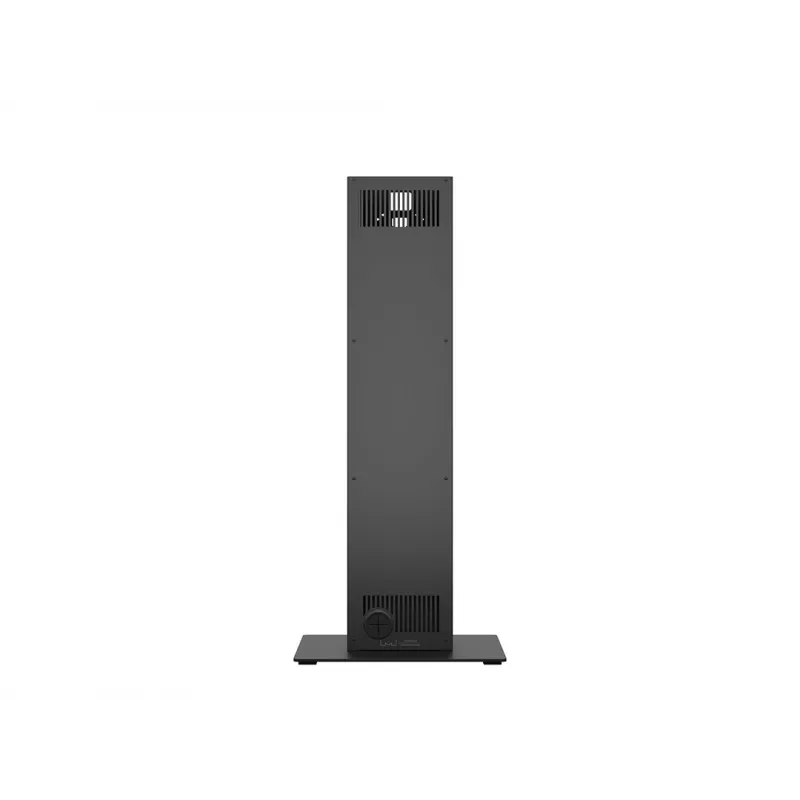

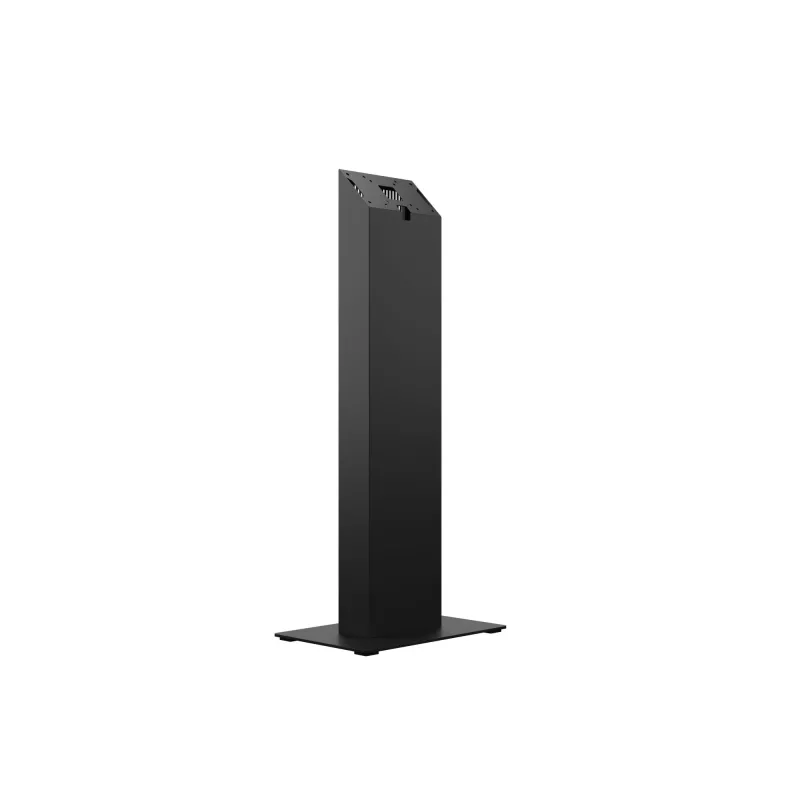

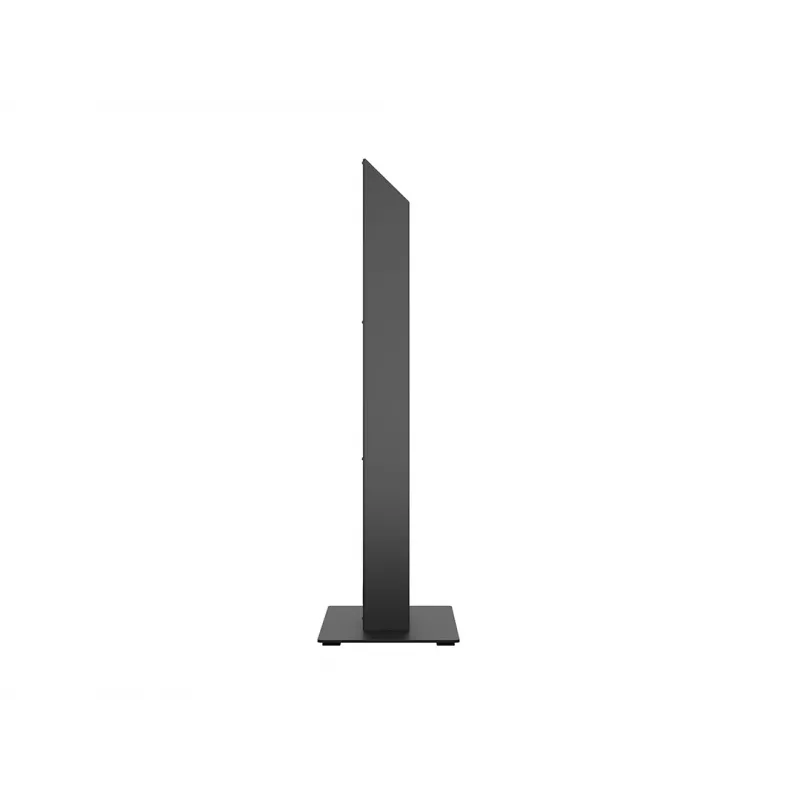

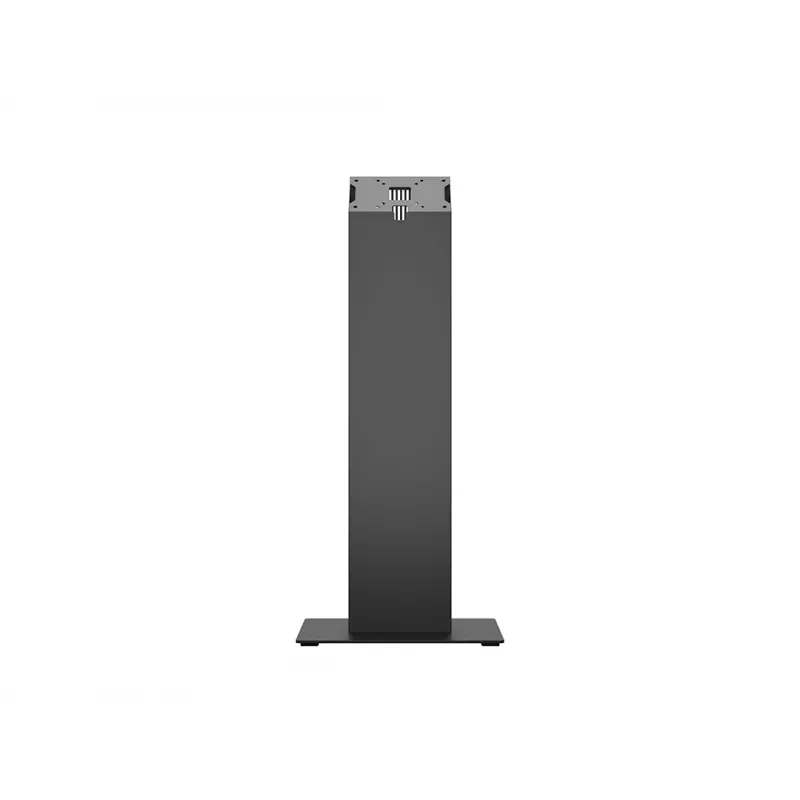

The Multibrackets M Pro Series Kiosk Black is an indoor multimedia kiosk designed for displays from 15" to 32" with a maximum weight capacity of 20 kg. The unit combines a slim, modern appearance with an ergonomic form that invites user interaction and provides secure, service-friendly access to internal components such as a NUC, power and data cabling. The kiosk supports VESA 75/100/200 mounting standards and can be used in portrait or landscape orientation; an optional adapter extends compatibility to VESA 300/400.

Advantages

The kiosk offers market-leading flexibility with support for both portrait and landscape mounting, a flat base that can be free-standing or bolted to the floor, and concealed screw locks for theft protection. Its design allows quick access for installation and maintenance while keeping cables and small PCs neatly housed. The black finish suits a variety of indoor environments and professional settings.

Suitable for

• Information centres and digital signage
• Shopping malls and retail displays
• Museums and exhibition spaces
• Queueing systems and HR/self-service terminals
• Hospitality and corporate reception areas

Key specifications

• Supported screen size: 15"–32"
• Maximum weight capacity: 20 kg

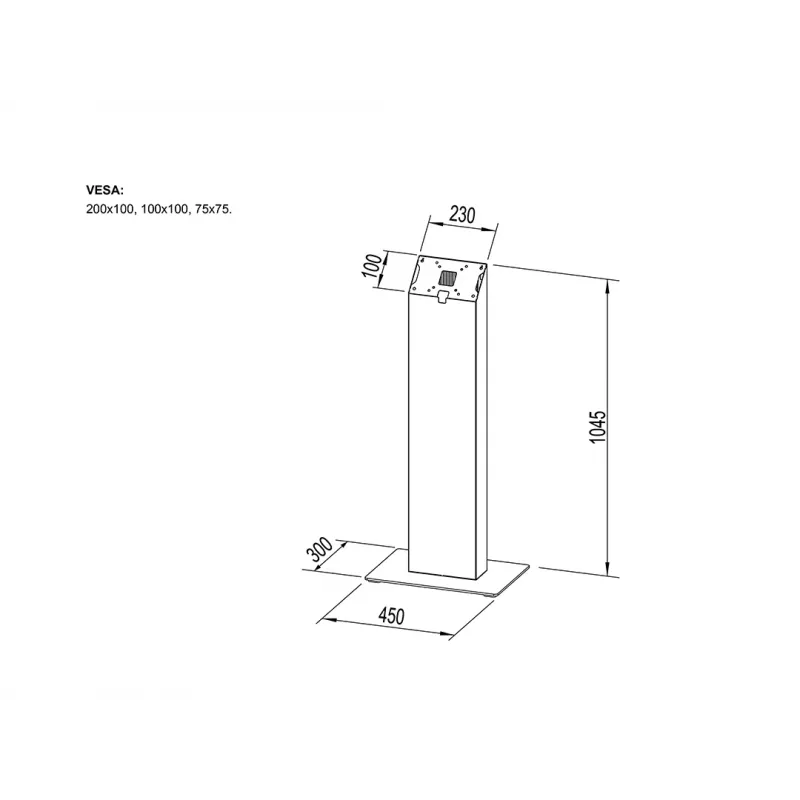

• VESA compatibility: 75 x 75, 100 x 100, 200 x 200 (optional adapter for 300/400)
• Number of displays supported: 1
• Product colour: Black

How to use

Mount a compatible display to the kiosk using the supported VESA points, choosing portrait or landscape orientation as required. Position the kiosk on its flat base either as a free-standing unit or bolt it to the floor for added stability. Route power and data cables through the internal compartments and install a NUC or other small PC if needed. Use the rear screw locks to secure the internal area against tampering.

Recommendations

For optimal performance, use displays and small form-factor PCs that do not exceed the specified 20 kg weight limit and ensure the chosen screen’s VESA pattern is supported. If a larger VESA pattern is required, fit the Multibrackets VESA adapter (M Pro Series – Kiosk VESA adapter 200x200/300/400). Regularly check mounting hardware and locks for security and stability.
