Multibrackets M VESA Deskmount HD Dual Vertical Widescreen 32" – 50" pinza/pasante

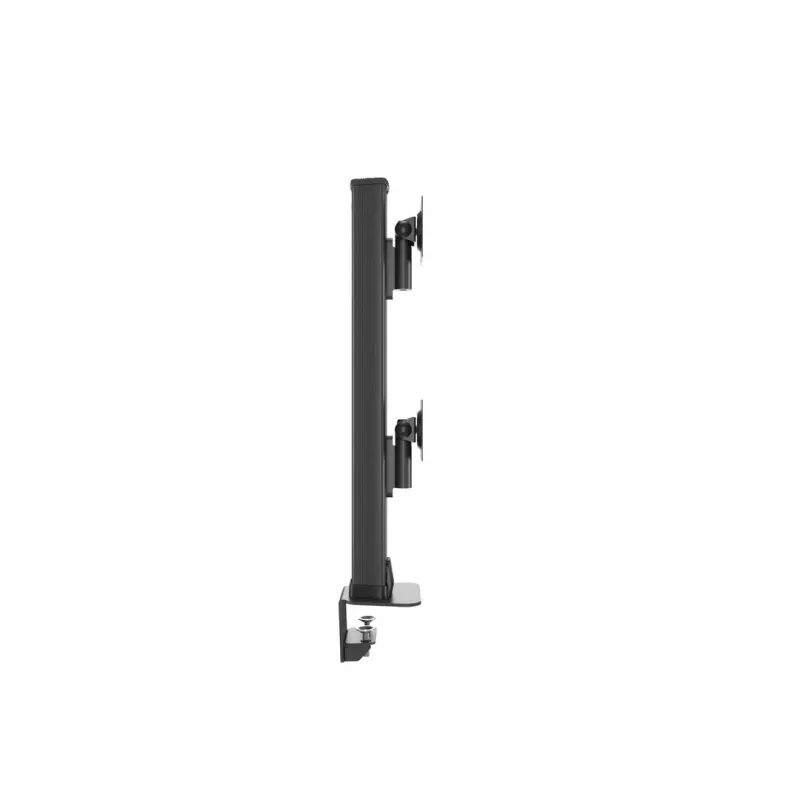

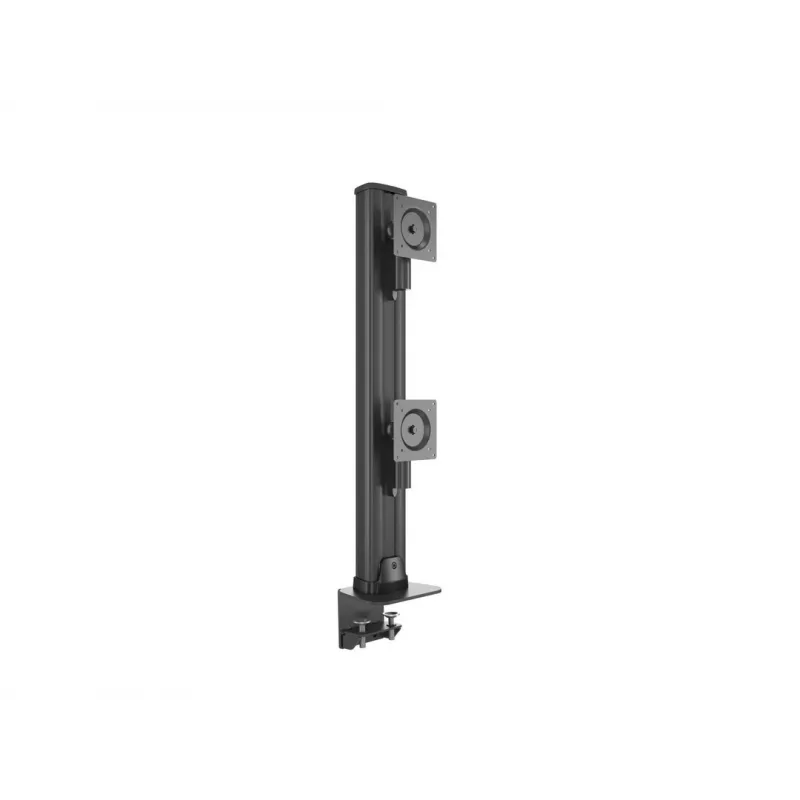

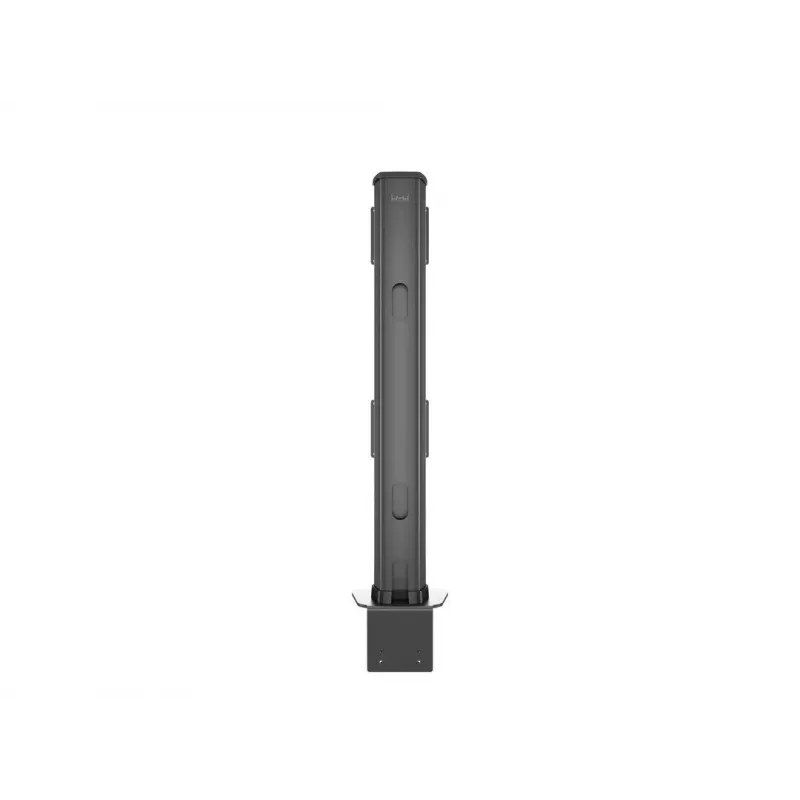

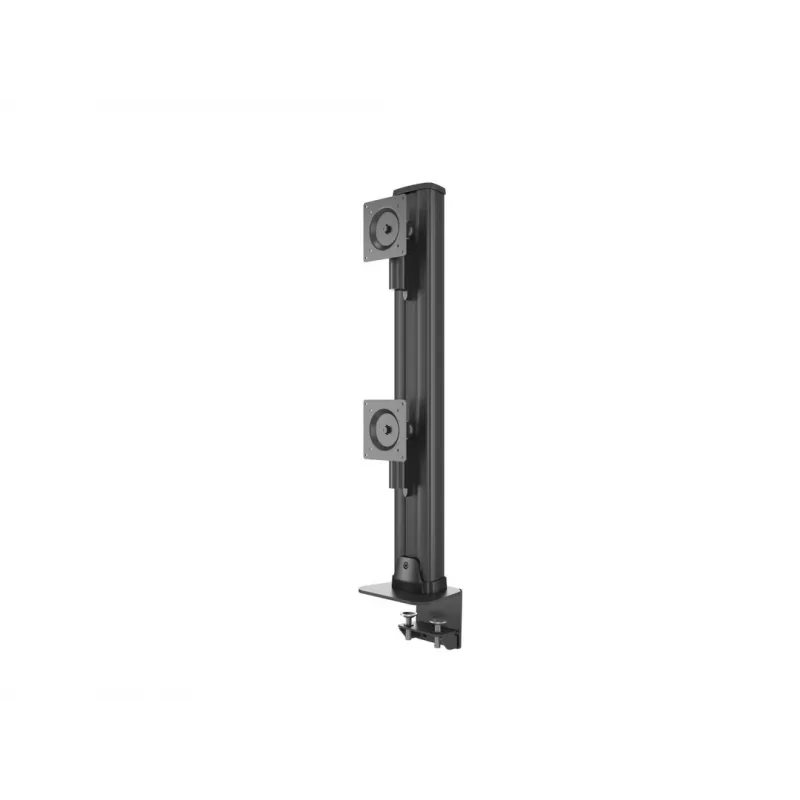

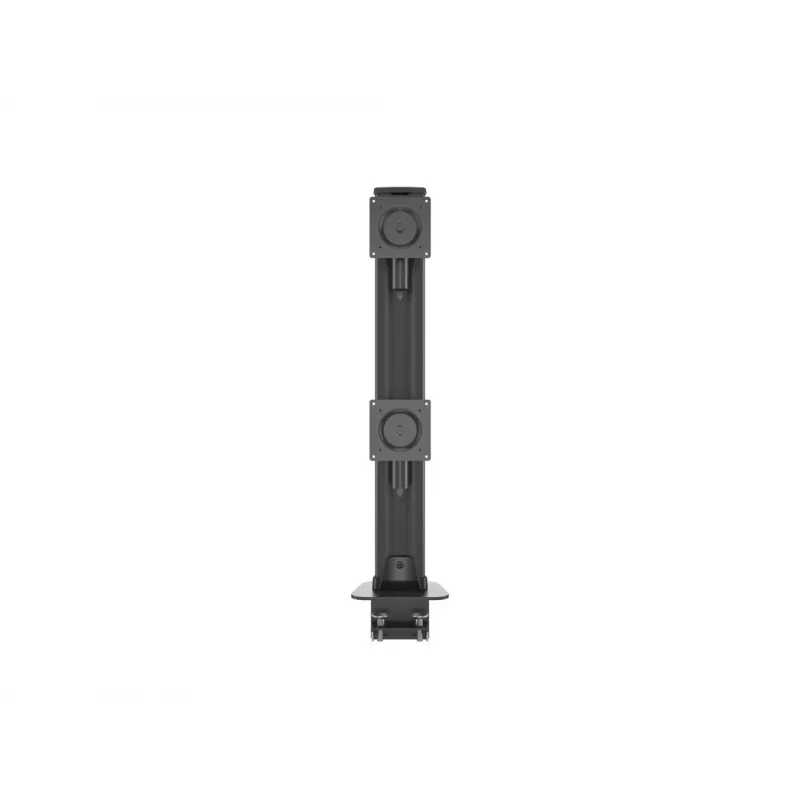

Multibrackets M VESA Deskmount HD Dual Vertical Widescreen 32" - 50" is a dual-monitor desk mount that stacks two widescreen displays vertically to save desk space and enable ergonomic positioning. The mount supports VESA patterns 75 x 75 mm and 100 x 100 mm and is compatible with most LCD screens in the 32"–50" range, with a combined maximum weight capacity of 48 kg (up to 24 kg per screen). The central pillar is 800 mm high to accommodate two vertically arranged monitors.

Advantages

The design allows precise height adjustment, independent tilt and swivel for each screen and a secure clamp or bolt-through desk attachment. Its slim, black construction provides a streamlined appearance while supporting heavy widescreen panels. The mount supports tilt from -15° to 20° and swivel from -20° to 20°, enabling flexible alignment and improved viewing ergonomics for multi-screen setups.

Suitable for

• Office workstations that require vertical dual-monitor configurations
• Trading desks and control rooms where stacked widescreens save space
• Home offices needing ergonomic multi-monitor arrangements
• Design and coding workstations where vertical screen stacking improves workflow

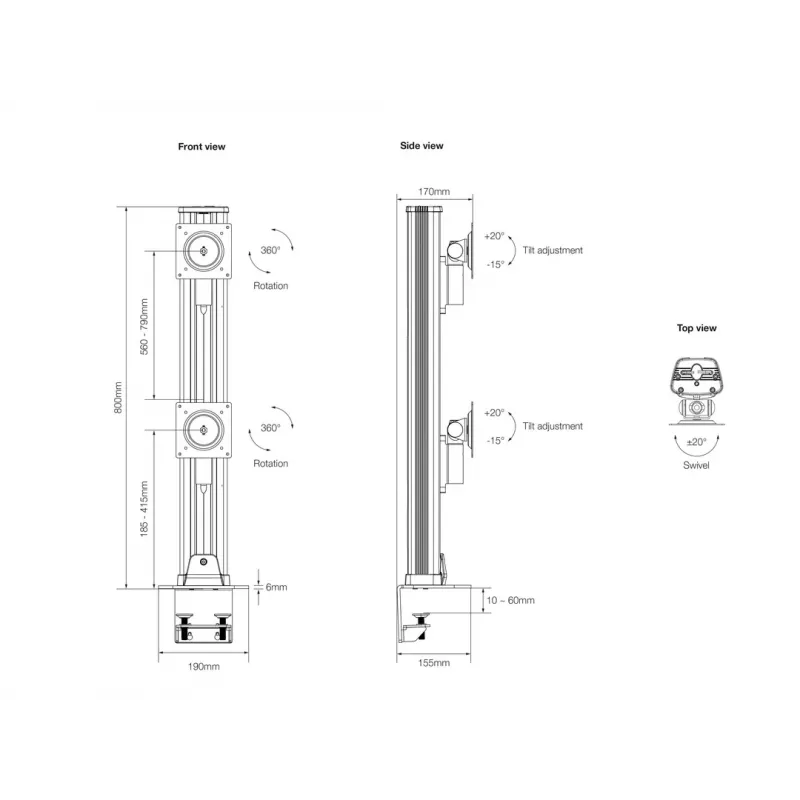

Key specifications

• Compatible screen size: 32"–50" per display
• VESA compatibility: 75 x 75 mm, 100 x 100 mm
• Maximum weight capacity: 48 kg total (up to 24 kg per display)
• Pillar height: 800 mm (supports two vertically arranged screens)
• Adjustment ranges: tilt -15° to 20°, swivel -20° to 20°
• Mounting options: desk clamp or bolt-through
• Product weight: 8 kg
• Colour: Black

How to use

Attach the mounting plate to each monitor using the matching VESA holes (75 x 75 mm or 100 x 100 mm). Secure the plates to the vertical pole and set the required height within the 800 mm pillar range. Fasten the desk clamp or bolt-through base to your desk according to the included instructions and manufacturer torque recommendations. Once mounted, adjust the tilt and swivel for each screen to achieve the desired viewing angles and alignment.

Recommendations

Ensure each display does not exceed 24 kg and confirm your monitor’s VESA pattern before installation. Install the mount on a stable desk surface and follow the provided assembly manual. For safety, check all fasteners periodically and do not overload the mount beyond the specified maximum weight.
