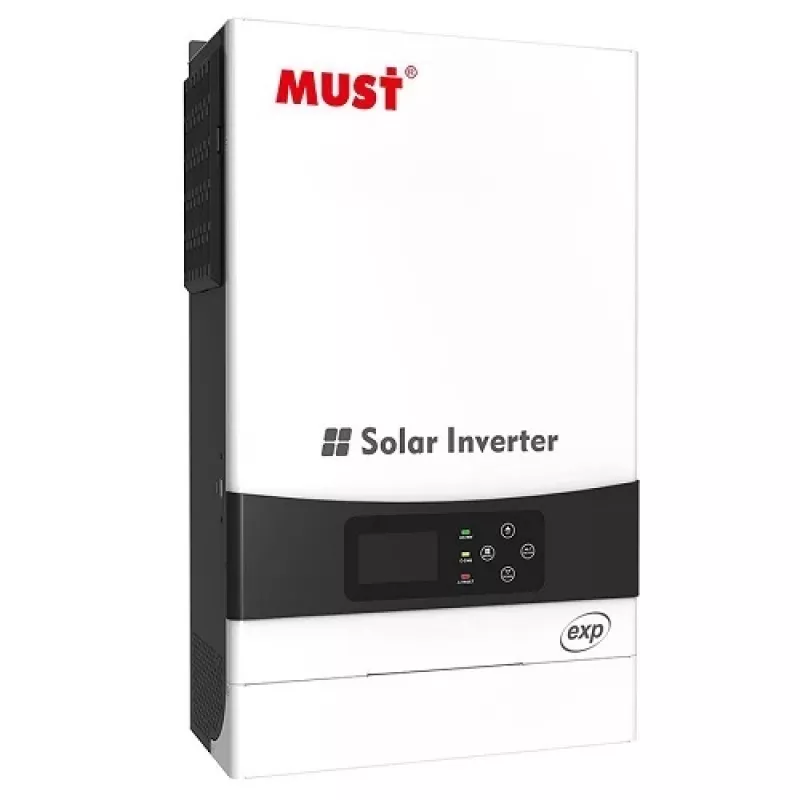

Inversor MUST PV19-4024 EXP, 4kW, monofásico, 24V, 100A MPPT, 500V

The MUST ENERGY POWER CO. Inverteris PV19-4024 EXP is a 4kW single-phase hybrid inverter designed for 24V battery systems, integrating an inverter, MPPT solar charger, and battery charger into a compact unit. It supports a maximum PV input of 100A at up to 500V DC, with an MPPT voltage range of 150–450V DC, enabling efficient solar energy utilization. The inverter can operate without a battery and features an LCD screen for setting operating parameters and priorities. It supports flexible scheduling for charging and discharging, and includes USB and RS485 communication ports.

Key features

• Rated power: 4kW, single-phase output
• Battery voltage: 24V DC
• Maximum PV input current: 100A
• Maximum PV open-circuit voltage: 500V DC
• MPPT voltage range: 150–450V DC
• Maximum solar panel power: 5kW
• Integrated MPPT solar charge controller with battery charger
