Niedax carril portante NIED 2934/2GL-20 perfil C carril ranurado 2000mm galvanizado en caliente

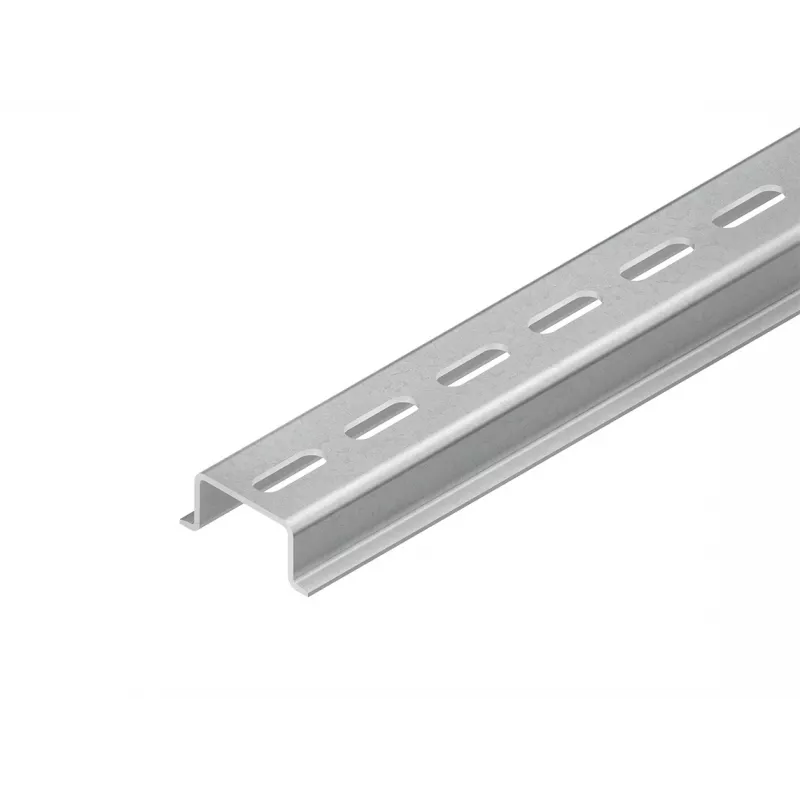

The Niedax NIED Tragschiene 2934/2GL-20 is a high-quality C-profile mounting rail designed for secure cable management and support systems. Manufactured from hot-dip galvanized steel, this 2000 mm long rail offers excellent corrosion resistance and durability for industrial and commercial installations.

Advantages

Hot-dip galvanized surface ensures long-lasting protection against rust and environmental factors. The slotted design with 8.5 mm wide slots allows for flexible attachment of clamps and accessories. Lightweight yet sturdy construction with a weight of only 0.6 kg per meter simplifies handling and installation.

Suitable for

• Cable tray and ladder rack support systems
• Mounting of electrical and data cables
• Industrial and commercial building infrastructure
• Use with Niedax clamp rails and accessories

Key specifications

• Profile Type: C-Profile
• Material: Steel, hot-dip galvanized
• Length: 2000 mm
• Profile Height: 30 mm
• Profile Width: 15 mm
• Material Thickness: 1.5 mm
• Slot Width: 8.5 mm
• Slot Length: 15 mm
• Slot Spacing (center-to-center): 20 mm
• Perforation: Slotted
• Weight per meter: 0.6 kg/m

Recommendations

For optimal performance, pair with Niedax compatible clamp rails and mounting brackets. Ensure proper support spacing according to load requirements.
