Niedax NIED canal de cables LLK 60.150 con tapa y fondo perforado

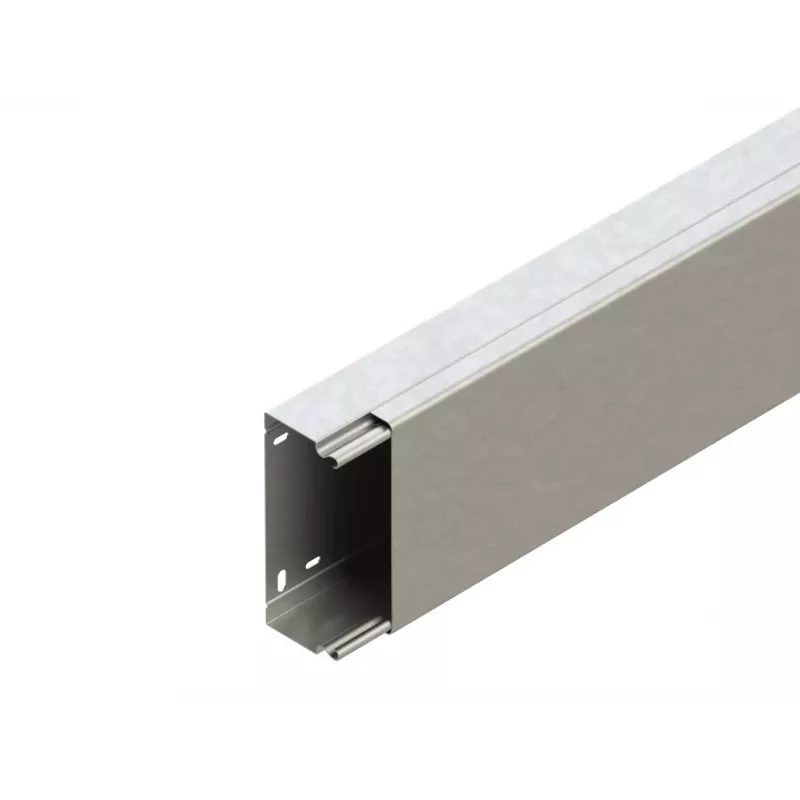

The Niedax NIED Cable Trunking LLK 60.150 is a high-quality steel cable trunking system designed for professional indoor cable routing. This closed trunking comes with a loose cover and base perforation, providing flexibility for cable entry and installation. Manufactured from Sendzimir galvanized steel according to DIN EN 10346, it offers excellent corrosion resistance and durability. With dimensions of 60 mm height and 150 mm width, and a length of 3000 mm, it provides a usable cross-section of 9000 mm², making it suitable for a wide range of cable management applications.

Advantages

This cable trunking system offers numerous benefits: robust steel construction ensures long-lasting performance; Sendzimir galvanized surface treatment provides superior protection against corrosion; base perforation allows for easy cable entry and fixing; halogen-free and UV-resistant materials ensure safety and longevity; simple wall or ceiling mounting saves installation time; and the loose cover design facilitates quick access to cables.

Suitable for

• Indoor cable routing in commercial and industrial buildings
• Office environments requiring organized cable management
• Installations where halogen-free materials are mandatory
• Projects needing UV-resistant cable protection

Key specifications

• Material: Steel, Sendzimir Galvanized
• Height: 60 mm
• Width: 150 mm
• Length: 3000 mm
• Material Thickness: 0.75 mm
• Usable Cross-Section: 9000 mm²
• Cover Type: Loose cover
• Base Perforation: Yes
• Halogen-free: Yes
• UV-resistant: Yes
• Protection Class: IP20 (when installed)
• Standard: DIN EN 50085-1

Recommendations

For a complete cable management solution, pair this trunking with compatible Niedax accessories such as corners, end caps, and mounting brackets. Ensure proper installation by following the manufacturer's guidelines for wall or ceiling mounting.
