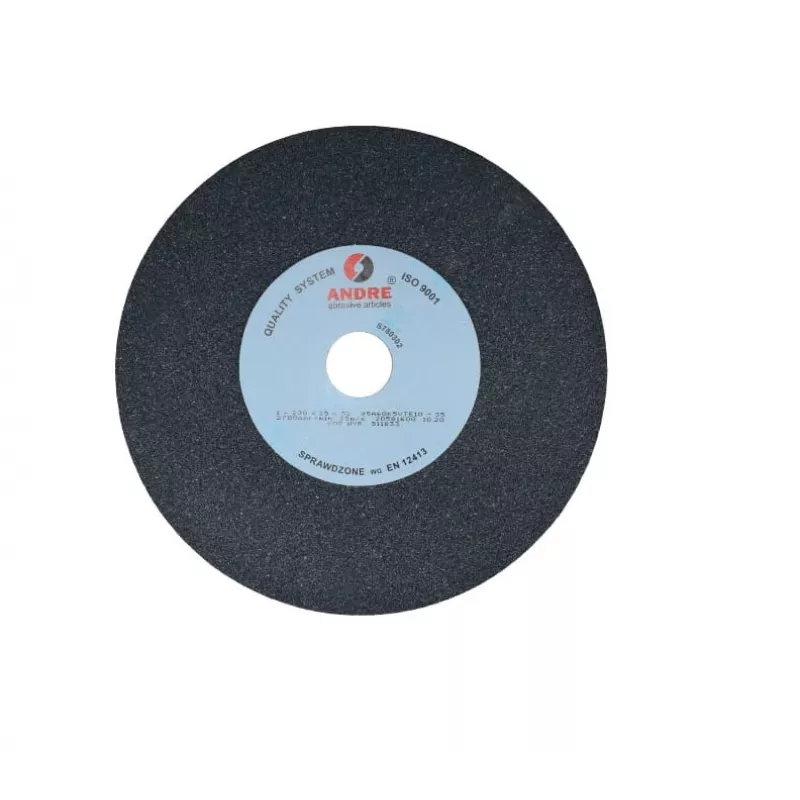

ANDRE Disco de desbaste plano 250mm x 25mm x 32mm 95AY60K5VTE10-35 Gris Tipo 1

In a busy metalworking shop, machinists rely on this ANDRE flat grinding wheel for consistent stock removal and surface finishing on steel and cast iron components. Its 250 mm diameter and 25 mm thickness provide a substantial grinding face, while the 32 mm bore fits standard bench and pedestal grinders. The wheel is built from 95A fused aluminum oxide abrasive with a 60 grit size, K hardness grade, and vitrified bond, delivering a balanced cut that is aggressive enough for efficient material removal yet controlled for fine finishes.

Key specifications

• Wheel diameter: 250 mm
• Wheel thickness: 25 mm
• Bore diameter: 32 mm
• Abrasive material: 95A fused aluminum oxide
• Grain size: 60 (medium)
• Hardness grade: K (medium-hard)
• Structure: 5 (medium density)
• Bond type: Vitrified (V)
• Wheel shape: Type 1 (straight/flat)
• Colour: Grey
• Max operating speed: 3050 RPM
• Max surface speed: 40 m/s
• Manufacturer bond code: TE10-35
• ISO standard: ISO 525

Why choose it

The combination of 95A aluminum oxide and a medium-hard K grade makes this wheel well-suited for general purpose grinding on ferrous metals. The vitrified bond provides excellent form holding and cool cutting, reducing the risk of burning the workpiece. Its Type 1 flat profile allows for straightforward face grinding, and the grey colour is typical of aluminum oxide wheels, offering reliable performance in demanding environments.

Ideal use cases

• Surface grinding of steel and cast iron parts
• Sharpening and shaping of cutting tools
• Deburring and edge blending in fabrication shops
• General maintenance and repair grinding operations

Good to know

Always inspect the wheel for damage before mounting and ensure the machine speed does not exceed the maximum rated RPM. Use appropriate guards and personal protective equipment. The wheel conforms to ISO 525 standards, ensuring consistent quality and safety.
