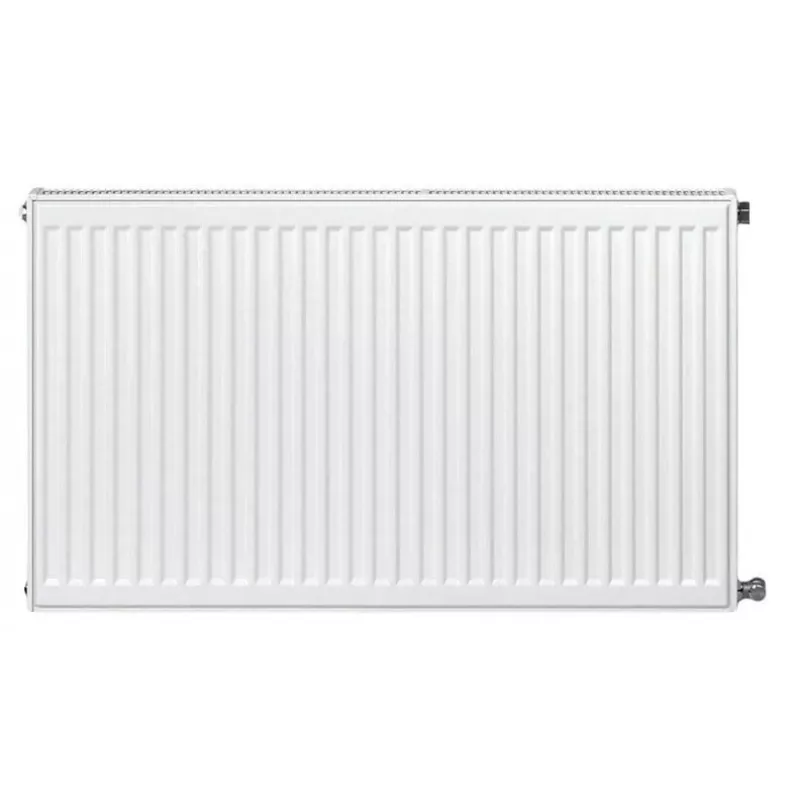

Radiador VKU 22 500x1200 mm radiador compacto con conexión inferior, blanco

Panel radiator Type 22 with bottom connection and integrated valve insert delivers a powerful 2284 W heat output, making it an efficient heating solution for residential and commercial spaces. Its double panel and double convector design ensures rapid warmth distribution and high thermal performance.

Advantages

This radiator combines robust cold-rolled steel construction with a phosphate anti-corrosion treatment and electrostatic powder coating in RAL 9016 white, ensuring durability and a clean, modern appearance. The integrated valve insert simplifies installation and maintenance, while the bottom connection allows for neat pipework concealment. Compliant with EN 442, it guarantees reliable and safe operation.

Suitable for

• Central heating systems in homes, apartments, and offices
• Low-temperature heating systems such as heat pumps
• Rooms requiring high heat output with limited wall space
• Renovation projects where existing pipework is bottom-fed

Key specifications

• Type: 22 (double panel, double convector)
• Height: 500 mm, Length: 1200 mm, Depth: 100 mm
• Heat output at ΔT 50K: 2284 W
• Max operating pressure: 10 bar; test pressure: 13 bar
• Max operating temperature: 110 °C
• Water volume: 6.7 liters
• Connection: G 1/2" internal thread, bottom connection
• Material: Cold-rolled steel, phosphate treated, powder coated
• Colour: White (RAL 9016)
• Standard: EN 442

Recommendations

For optimal performance, pair with a thermostatic radiator valve (not included) to control room temperature efficiently. Ensure proper wall mounting with suitable brackets (sold separately) and verify system pressure does not exceed the maximum rating. Regular cleaning with a soft cloth will maintain the finish.
