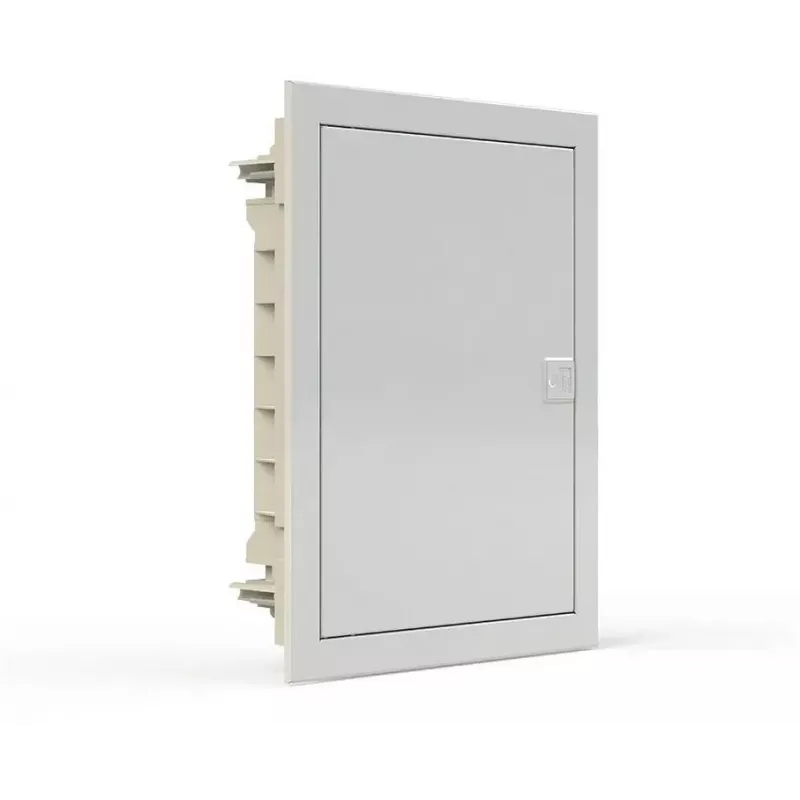

Noark PMF 12 Caja de plástico empotrable con puerta metálica, IP40, 1 fila, 12 módulos

The Noark PMF 12 is a high-quality flush-mounted plastic enclosure designed for indoor electrical installations. Featuring a robust metal door and a sleek white finish (RAL 9003), this enclosure offers reliable protection and easy access for maintenance. With a capacity of 12 modules in a single row, it is ideal for residential and commercial distribution boards.

Advantages

Durable construction with a metal door ensures long-lasting performance. The flush-mounted design saves space and provides a clean, professional appearance. IP40 protection guards against solid objects larger than 1 mm, while Class II insulation enhances safety. The 180° door opening angle allows convenient access to internal components.

Suitable for

• Indoor electrical distribution boards
• Residential and commercial buildings
• Flush-mounted installations in walls

Key specifications

• Mounting Type: Flush-mounted
• Number of Rows: 1
• Module Capacity: 12 modules (1x12)
• Enclosure Material: Plastic
• Door Material: Metal
• IP Protection Rating: IP40
• Insulation Class: Class II
• Glow Wire Test Temperature: 650°C
• Operating Temperature Range: -25°C to +60°C
• Door Opening Angle: 180°
• Enclosure Color: White
• Door Color: White (RAL 9003)
• Standards Compliance: EN 60670-24, EN 62208
• Recessed Depth: 60 mm
• DIN Rail Included: Yes
• Terminal Blocks: N+PE (Neutral + Protective Earth) included

Recommendations

This enclosure is perfect for electricians and installers seeking a reliable, space-saving solution for flush-mounted distribution boards. Pair with Noark circuit breakers and accessories for a complete electrical system.
