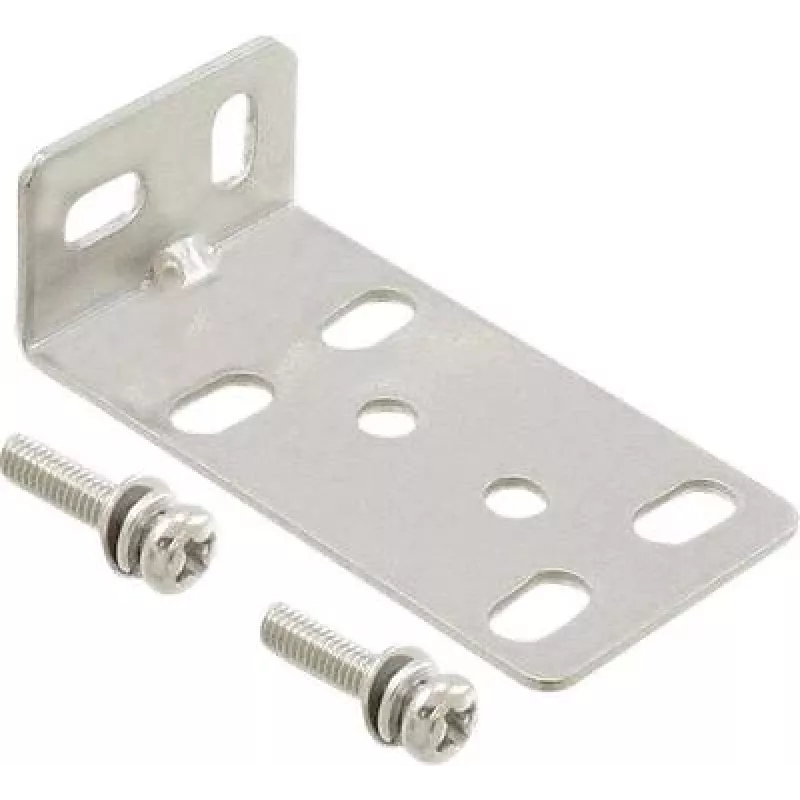

Panasonic Escuadra de montaje MSCX21 — escuadra de instalación metálica para serie MSCX

Panasonic mounting bracket MSCX21 – metal installation angle for MSCX series is a robust metal angle bracket designed to secure MSCX series devices to panels, frames or structural surfaces. The MSCX21 offers a stable mounting point that keeps equipment firmly positioned while allowing correct orientation and alignment for service and operation. It is intended for industrial and commercial environments where a dedicated metal bracket ensures repeatable and durable installation.

Advantages

The metal construction provides strength and resistance to deformation under load, ensuring long-term mechanical support. The bracket’s shape and mounting holes are arranged to match MSCX series devices, which simplifies installation and reduces the need for custom adapters. Its compact design minimizes space consumption while delivering reliable fixation, and the standardized geometry helps maintain consistent positioning across multiple units.

Suitable for

• Mounting MSCX series controllers and modules to panels or racks
• Industrial control cabinets and equipment enclosures
• Commercial installations requiring secure device attachment
• Retrofit projects where a dedicated mounting angle is needed

Key specifications

• Material: metal construction for structural support
• Type: installation angle / mounting bracket compatible with MSCX series
• Finish: protective coating to reduce corrosion risk in typical industrial settings
• Design: pre-drilled mounting holes and angled profile for stable attachment
• Dimensions: compact profile suited for tight installation spaces

How to use

Position the MSCX21 mounting bracket against the chosen surface and align the bracket’s holes with the device mounting points and the panel or rack attachment points. Use appropriate fasteners (screws, bolts, or rivets) rated for the installation environment to secure the bracket to both the device and the mounting surface. Verify alignment and tighten fasteners to the manufacturer-recommended torque for the connected equipment. After installation, check that the device is stable and that there is no undue strain on connectors or wiring.
