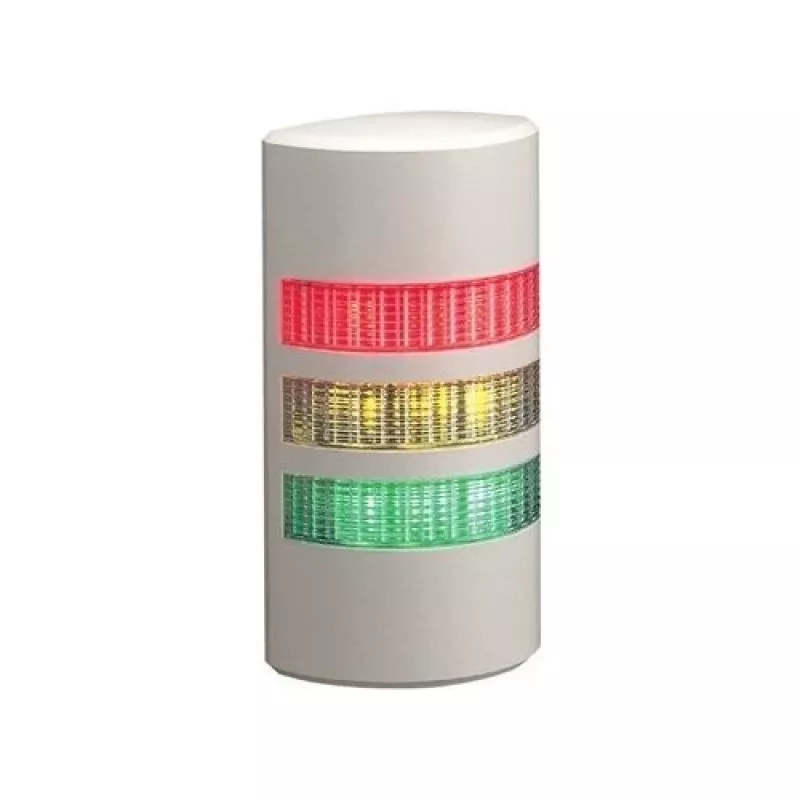

PATLITE WEP-302FB-RYG baliza LED, 3 niveles rojo/amarillo/verde, zumbador, montaje en pared, 24V DC, IP65, blanco

The PATLITE WEP-302FB-RYG is a high-performance LED signal tower designed for industrial environments. This 3-tier stack light features red, yellow, and green LED modules with an integrated buzzer, providing clear visual and audible alerts. The wall-mountable design and IP65 protection rating make it suitable for harsh conditions. Operating at 24V DC, it offers selectable steady or flashing light functions and a loud 85 dB buzzer.

Advantages

Reliable and durable LED technology ensures long service life and low maintenance. The IP65 rating protects against dust and water jets, ideal for factory floors. Easy wall mounting with rear cable entry simplifies installation. The buzzer provides an additional layer of safety in noisy environments.

Suitable for

• Industrial automation and machinery status indication
• Warehouse and logistics alert systems
• Process control and production line monitoring
• Safety warning applications

Key specifications

• Product Type: LED Signal Tower / Stack Light
• Light Source: LED
• Number of Tiers: 3
• Light Colors: Red, Yellow, Green
• Audible Alarm: Yes (Buzzer, 85 dB at 1 m)
• Mounting Type: Wall Mount
• Operating Voltage: 24V DC
• Current Consumption: Approx. 100 mA (all lights + buzzer)
• Protection Rating: IP65
• Light Functions: Steady / Flashing (selectable)
• Housing Color: Ivory / Off-White
• Lens Material: Polycarbonate
• Body Material: ABS Resin
• Diameter: 60 mm
• Connection Type: Terminal Block
• Cable Entry: Rear
• Series: WEP Series
• Certifications: CE, RoHS, UL (cULus)

Recommendations

For optimal performance, use with a regulated 24V DC power supply. Ensure proper wiring to terminal block. Suitable for indoor and outdoor use where IP65 protection is sufficient.
