Pedal de embrague Moza Racing SR-P Lite con cable negro 2,2 kg

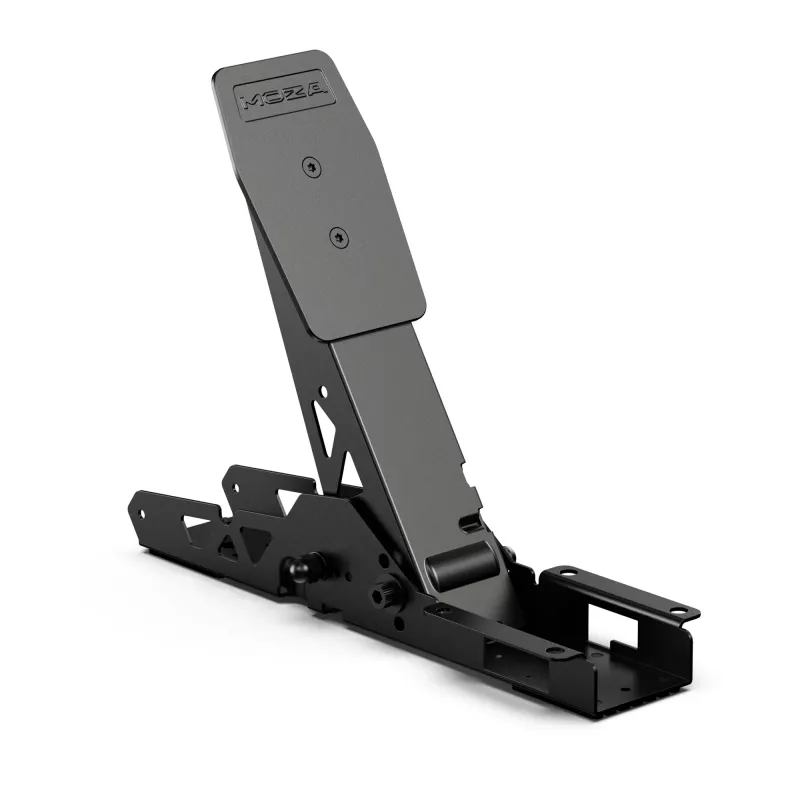

Floor mounted organ-type accelerator pedal designed to align the driver’s foot trajectory with the pedal for smoother and more accurate throttle control. The MOZA SR-P pedals combine pressure sensing and high-resolution magnetic encoders across throttle, brake and clutch to provide precise input, while offering USB PC connectivity and removable pedals for flexible mounting options.

Advantages

The organ-style accelerator improves foot-to-pedal alignment for more consistent throttle modulation. A high-precision pressure sensor on the brake supports up to 75 kg range, enabling users to modulate braking force by pressure. All pedals use 16-bit magnetic encoders (65,536 PPR) for stable, high-resolution input. Dual-sensor fusion on the brake blends angle and pressure feedback to refine initial and final braking stages. A combined braking spring and damping block reproduces realistic pedal stiffness and travel. USB connection allows direct PC pairing and calibration via MOZA Pit House software. The unit includes an anti-slip mat for non-bracket use and detachable pedals for mounting on other professional brackets or reversing for advanced setups.

Key specifications

• Brake pressure sensor maximum range: 75 kg
• Encoder type: 16-bit magnetic encoder
• Encoder resolution: 65,536 PPR
• Sensors: pressure sensor and angle sensor (dual-sensor fusion on brake)
• Connection: USB to PC
• Software: MOZA Pit House calibration and curve adjustment
• Design: floor-mounted, organ-type accelerator; detachable and reversible pedals
• Anti-slip base for non-bracket use

How to use

Connect the MOZA SR-P pedals to a PC via the USB port and launch MOZA Pit House to perform initial calibration. Adjust pedal output curves and sensor settings in the software to match personal preference or specific sim racing setups. Mount the pedals on a professional bracket if required or use the included anti-slip mat for temporary placement. For advanced configurations, detach and reattach pedals to compatible brackets or reverse the pedal orientation as needed. Use pressure control on the brake to fine-tune braking force and rely on the dual-sensor behavior for smooth transition between angle-dominant and pressure-dominant braking stages.

Recommendations

Calibrate pedals in MOZA Pit House before each major session and adjust the output curve to match vehicle type; ensure the anti-slip mat is positioned correctly when not using a dedicated pedal bracket.
