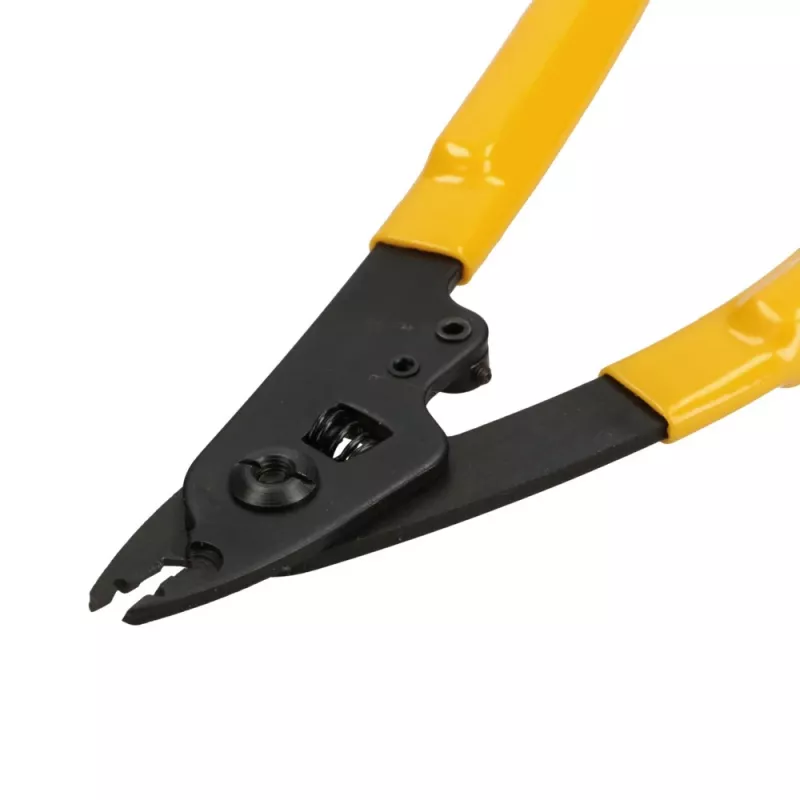

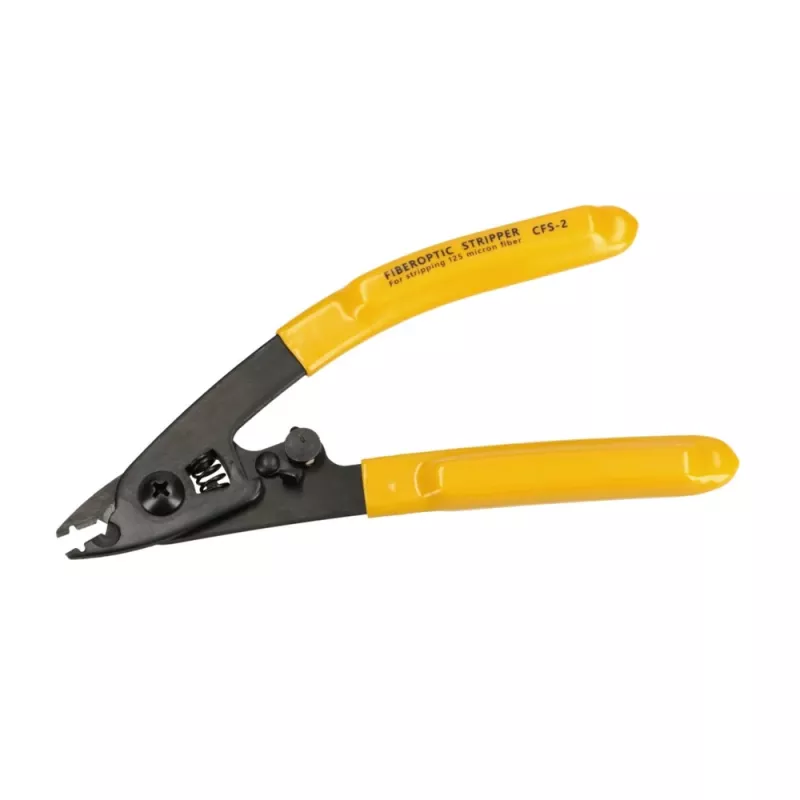

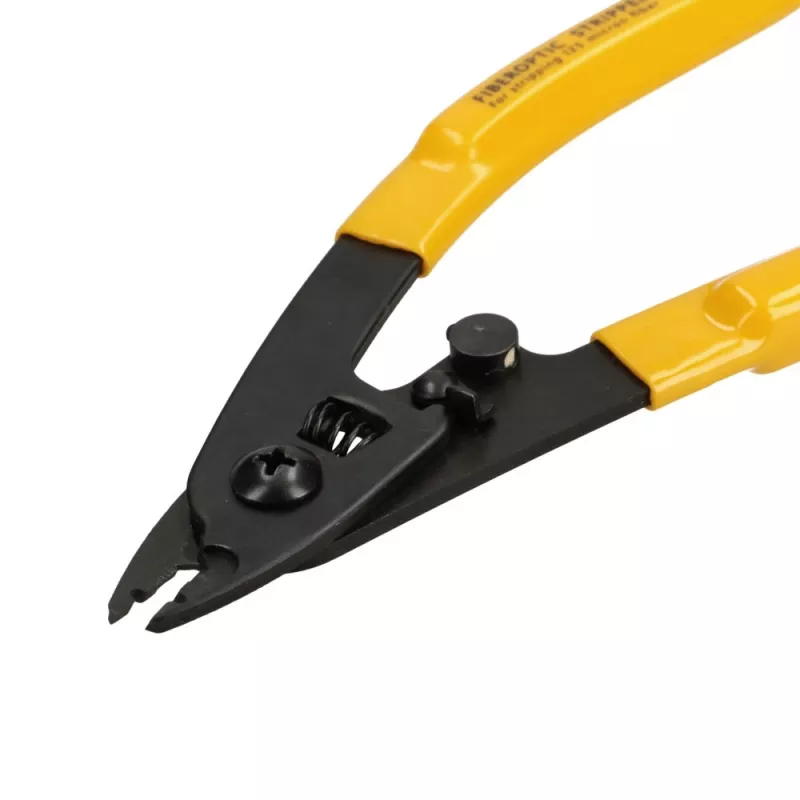

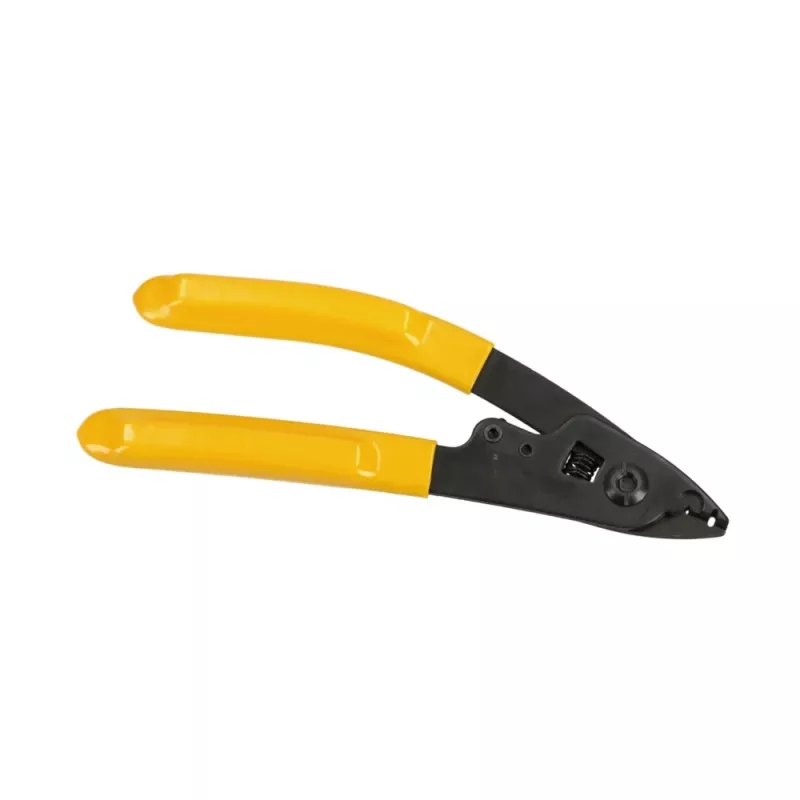

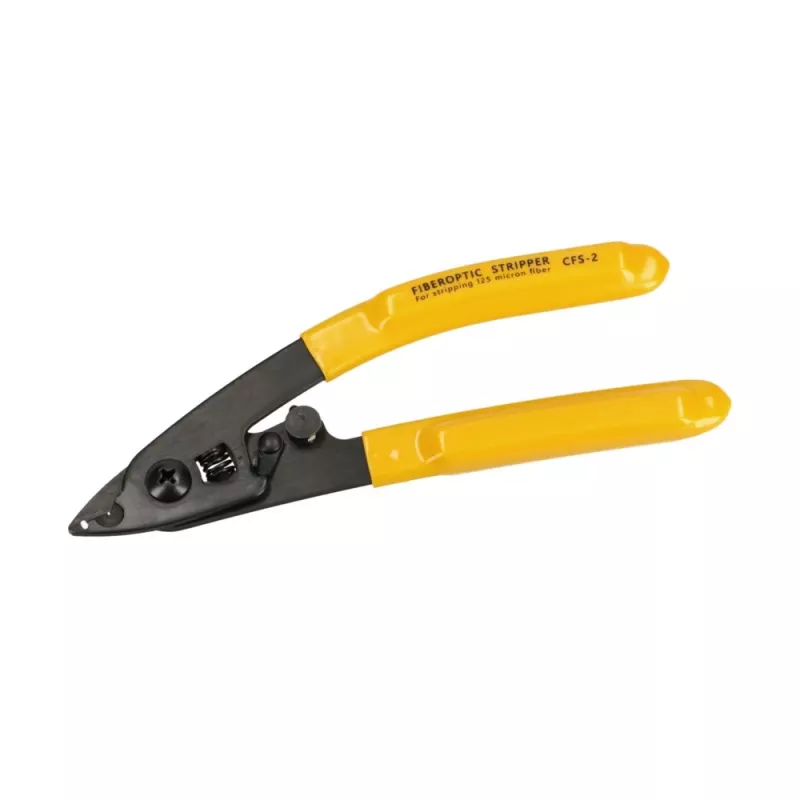

Pelacables de fibra óptica Extralink CFS-2 0,9 mm 0,125 mm

Fiber optic stripper for 0.9 mm jacket and 0.125 mm glass fiber, designed for precise removal of outer jacket and buffer coating without damaging the glass core. The tool is pre-set and ready to use, featuring ergonomic handles and a locking mechanism for safe storage.

Advantages

The stripper provides accurate, clean strips thanks to precisely manufactured stripping surfaces and a 140 µm diameter hole with a V-opening for reliable 250 µm buffer removal from 125 µm fiber. A 1.0 mm diameter stripping hole at the tip enables safe jacket removal. The tool is factory pre-set, will not scratch or nick glass fiber, and includes a lock and protective insulation for safe handling.

Key specifications

• Stripping holes: 1.0 mm (jacket), 140 µm (buffer)
• Compatible fiber glass diameter: 0.125 mm (125 µm)
• Compatible buffer/jacket: up to 1.0 mm (max stripping capacity 1 mm)
• V-opening blade for 250 µm buffer removal
• Pre-set at factory — no adjustments required
• Will not scratch or nick glass fiber
• Ergonomic comfort grip handles with lock
• Protective insulation
• Color: Yellow

How to use

Place the fiber into the appropriate stripping hole (1.0 mm for the jacket, 140 µm V-opening for the 250 µm buffer) and close the handles to cut through the coating without contacting the glass. Pull the removed jacket or buffer off the fiber with a steady motion. Use the lock to secure the tool when not in use. No adjustments are necessary due to factory pre-setting.

Recommendations

For best results, ensure the correct hole is used for the jacket or buffer size and perform stripping with steady, even pressure. Inspect stripped fibers for cleanliness before splicing or connectorization and store the tool locked and insulated when not in use.
