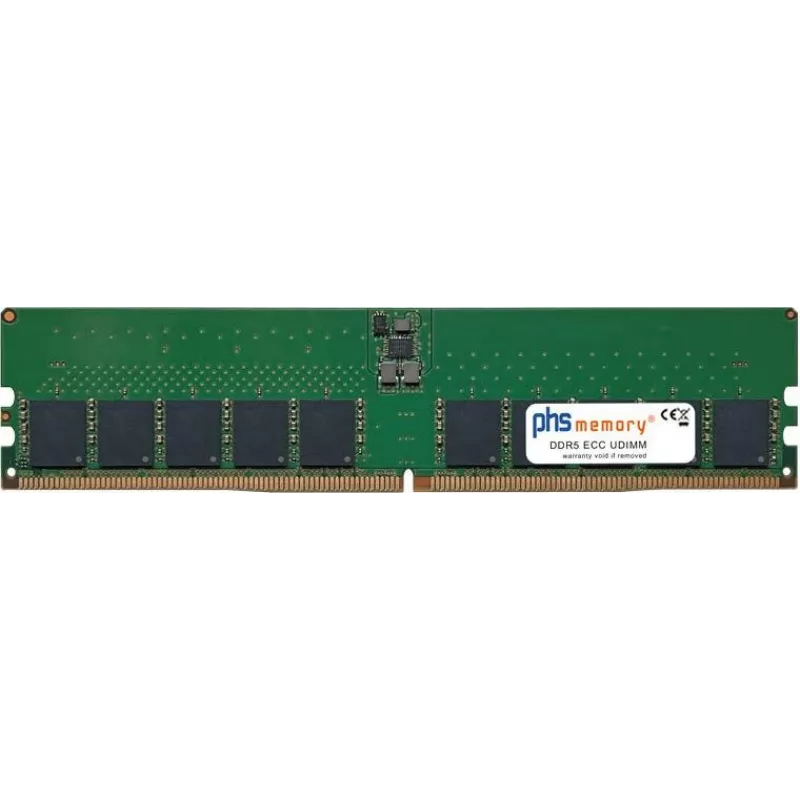

PHS-memory 32GB DDR5 ECC UDIMM 4800MHz RAM para MSI ATX MS-CF05 (SP540106)

Server and workstation systems built on the MSI ATX MS-CF05 platform often face memory bottlenecks when running virtual machines, databases, or other memory-intensive workloads. This 32GB DDR5 ECC UDIMM module directly addresses that limitation by providing high-capacity, error-correcting memory that keeps critical applications stable and responsive.

Who is it for

System integrators, IT administrators, and advanced users who need reliable, high-density memory for MSI ATX MS-CF05 motherboards. It is particularly suited for entry-level servers, workstations, and embedded systems that require ECC protection without the cost or complexity of registered memory.

Main features

• 32GB capacity on a single unbuffered DIMM
• DDR5 technology with 4800 MHz speed
• ECC error correction for data integrity
• 288-pin UDIMM form factor
• 1.1V operating voltage for improved energy efficiency
• PC5-38400E rating with 38.4 GB/s transfer rate

Specifications

• Memory capacity: 32 GB
• Memory type: DDR5
• Module type: UDIMM
• Error correction: ECC
• Speed: 4800 MHz
• PC rating: PC5-38400E
• Data transfer rate: 38.4 GB/s
• Pin count: 288-pin
• Voltage: 1.1 V
• Form factor: DIMM
• Compatibility: MSI ATX MS-CF05
• Number of modules: 1

Tips

Check your motherboard manual to confirm support for ECC UDIMMs before installation. For dual-channel operation, install two identical modules in the appropriate slots.
