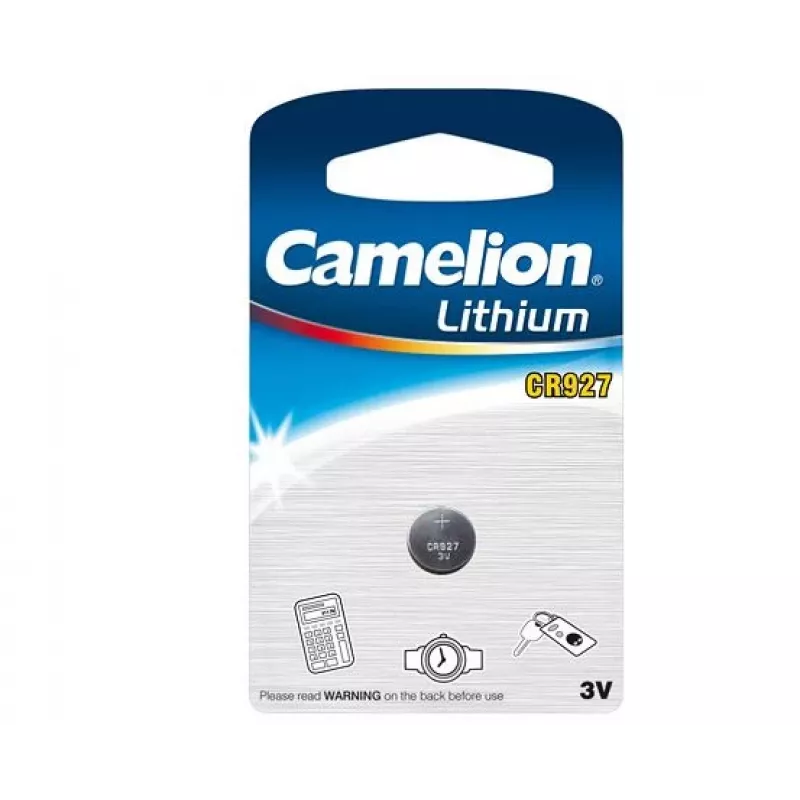

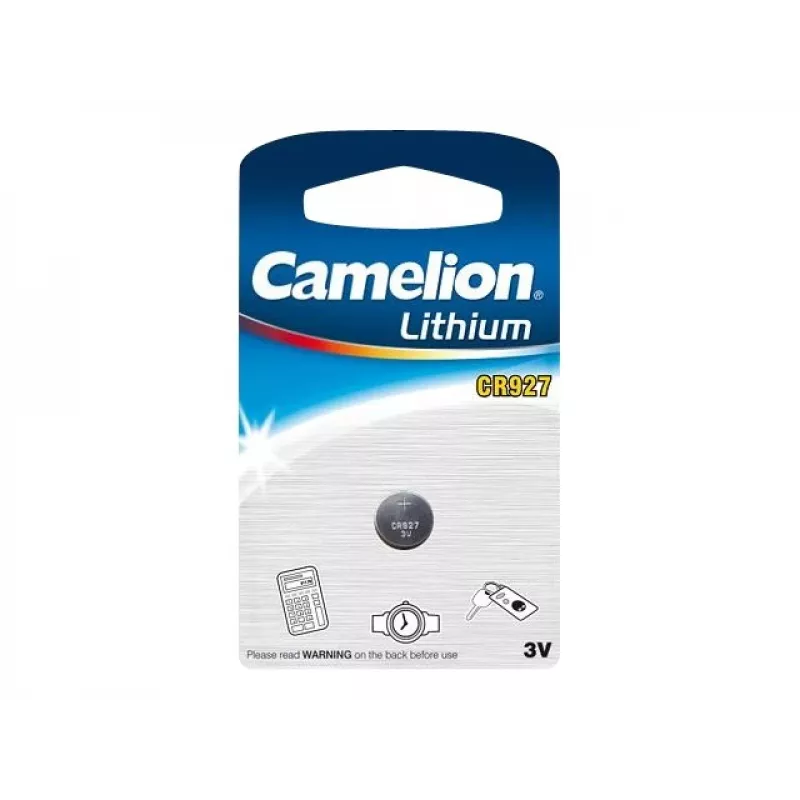

Pila Camelion CR927-BP1

The Camelion CR927-BP1 is a single-use button/coin battery with a nominal voltage of 3.0 V and lithium manganese dioxide electrochemistry. Encased in a stainless steel jacket, the compact battery (diameter 9.5 mm, height 2.7 mm, weight approx. 0.6 g) offers high energy density and a shelf life of about 10 years, making it suitable for small electronic devices.

Advantages

The stainless steel casing provides mechanical protection and corrosion resistance while the lithium manganese dioxide chemistry delivers stable 3.0 V output and high energy density. Its long shelf life of approximately 10 years reduces the need for frequent replacements, and the battery’s small dimensions make it suitable for compact devices.

Suitable for

• Watches
• Calculators
• Cameras (small electronics)
• Heart rate monitors
• Alarm systems and other small electronic devices

Key specifications

• Electrochemical system: Lithium manganese dioxide
• Nominal voltage: 3.0 V
• Jacket: Stainless steel
• Dimensions: Diameter 9.5 mm, Height 2.7 mm
• Weight: approx. 0.6 g
• Shelf life: approx. 10 years

How to use

Insert the Camelion CR927 battery into the device following the device manufacturer’s polarity markings, ensuring the correct orientation of the positive and negative terminals. Avoid short-circuiting the battery by preventing direct contact between positive and negative terminals and metal objects. Do not attempt to recharge, disassemble, heat, or puncture the battery. Store unused batteries in a cool, dry place and install only when ready to use.

Recommendations

For reliable operation, replace the battery when device performance degrades and always use the correct battery size and type specified by the device manufacturer. Dispose of used batteries according to local regulations for battery recycling or hazardous waste.
