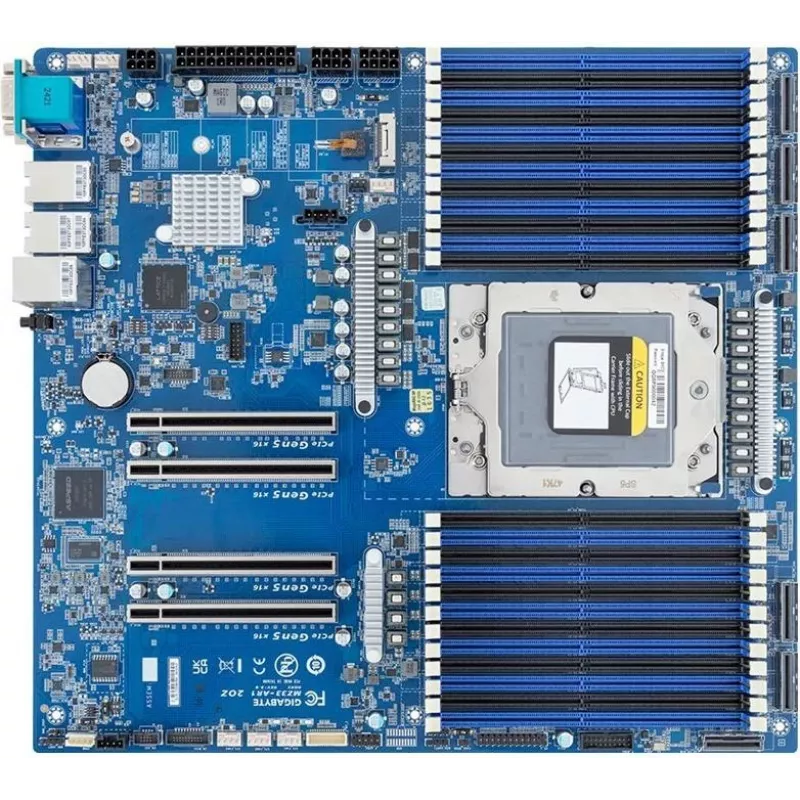

Placa base Gigabyte MZ33-AR1 Rev. 3, socket SP5, E-ATX

The Gigabyte MZ33-AR1 Rev. 3 is an E-ATX motherboard with an SP5 socket designed for high-performance workstation and gaming systems. It provides a platform for advanced processors and a robust power delivery subsystem suited to sustained multi-core workloads. The board integrates multiple expansion slots and high-speed connectivity options to support GPUs, NVMe storage, and modern I/O peripherals while maintaining mechanical stability and thermal headroom typical of an E-ATX design.

Advantages

This motherboard offers a stable power architecture and support for advanced server-class and high-core-count processors, enabling consistent performance under heavy loads. The E-ATX form factor provides extra space for additional expansion cards and enhanced cooling solutions. Multiple high-speed interfaces and expansion slots allow flexible system configurations for graphics, storage, and networking without compromising signal integrity.

Suitable for

• Workstation builds for content creation, 3D rendering, and scientific computing
• High-end gaming systems paired with modern discrete GPUs
• Servers and home lab environments requiring multiple expansion cards
• Systems needing extensive NVMe storage and high-speed I/O connectivity

Key specifications

• Form factor: E-ATX for extended expansion and cooling options
• CPU socket: SP5 compatible with advanced multi-core processors
• Memory support: multiple DIMM slots for high-capacity, high-speed RAM configurations
• Expansion slots: several PCIe lanes and slots for GPUs and add-in cards
• Storage interfaces: NVMe-ready M.2 or U.2 support and multiple SATA ports
• Connectivity: high-speed Ethernet and modern peripheral interfaces for external devices
• Power delivery: reinforced VRM design for stable voltage under sustained loads

How to use

Install the motherboard into a compatible E-ATX chassis, ensuring correct alignment with the I/O shield and standoffs. Fit a processor compatible with the SP5 socket and mount an appropriate cooling solution following the cooler manufacturer's instructions. Populate memory slots according to the recommended channel order for optimal performance, then install storage drives and expansion cards in the available slots. Connect power supply cables to the board's primary and auxiliary power connectors and attach front-panel, USB and network cables as required. Update firmware and drivers after assembling the system to ensure full compatibility and stability.

Recommendations

For reliable long-term operation, use a high-quality power supply with sufficient wattage and stable rails, and implement active case cooling to maintain VRM and CPU temperatures within recommended ranges. Follow supported memory population guides and keep firmware up to date to maximize compatibility with processors and expansion devices.
