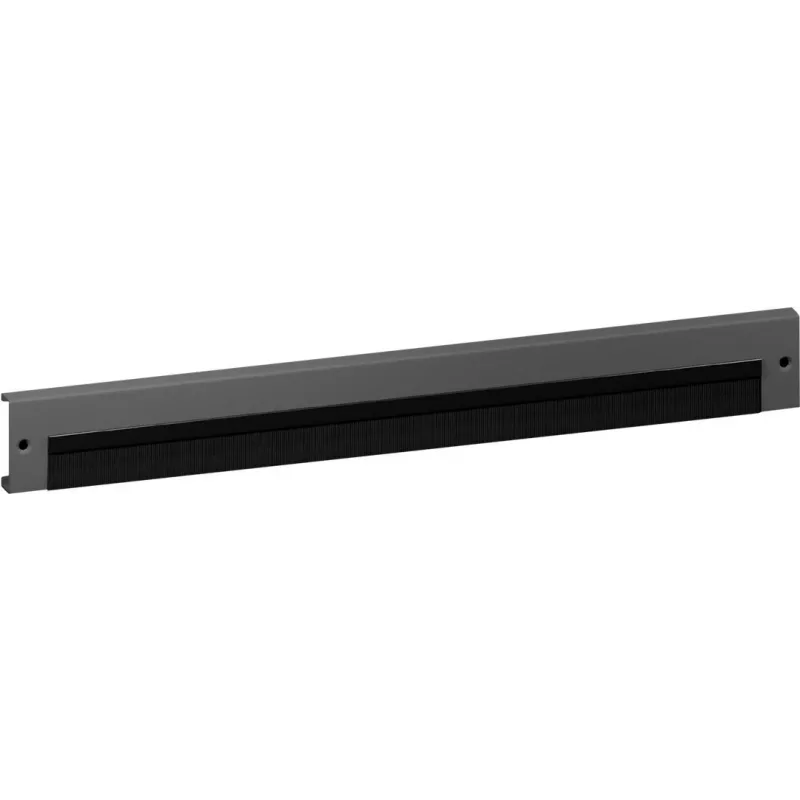

Placa ciega Rittal VX 8660.094 negra acero 1000 mm × 100 mm

Trim panel Rittal VX 8660.094 in black steel, 1000 mm × 100 mm, provides a durable cable entry solution for the base or plinth of Rittal VX enclosures. Designed for integration with a 200 mm base/plinth height, the panel can be used alone or together with an optional brush-strip trim panel. The panel supports flexible positioning and attachment on front, rear or side of a base/plinth corner piece to allow organised cable routing.

Advantages

The steel construction offers robust mechanical protection and long service life while the black finish ensures a consistent appearance with Rittal VX systems. Compatibility with optional brush-strip trim panels enables dust-reducing cable entry and easy insertion of multiple cables. Lightweight design simplifies handling and installation.

Suitable for

Key specifications

How to use

Mount the trim panel into the base or plinth opening of the Rittal VX enclosure at the desired corner position. If using a 200 mm base/plinth height, fit one or two optional trim panels with brush strip as required. Fasten the panel according to the enclosure’s mounting points, then route cables through the opening; if using a brush-strip trim, pass cables through the bristles to maintain dust protection.

Recommendations

Use compatible Rittal VX mounting hardware and, when installing brush-strip trim panels, ensure cables are arranged to avoid excessive bending at the entry point. Verify panel seating and fastenings after cable installation to maintain mechanical integrity and ingress protection.
