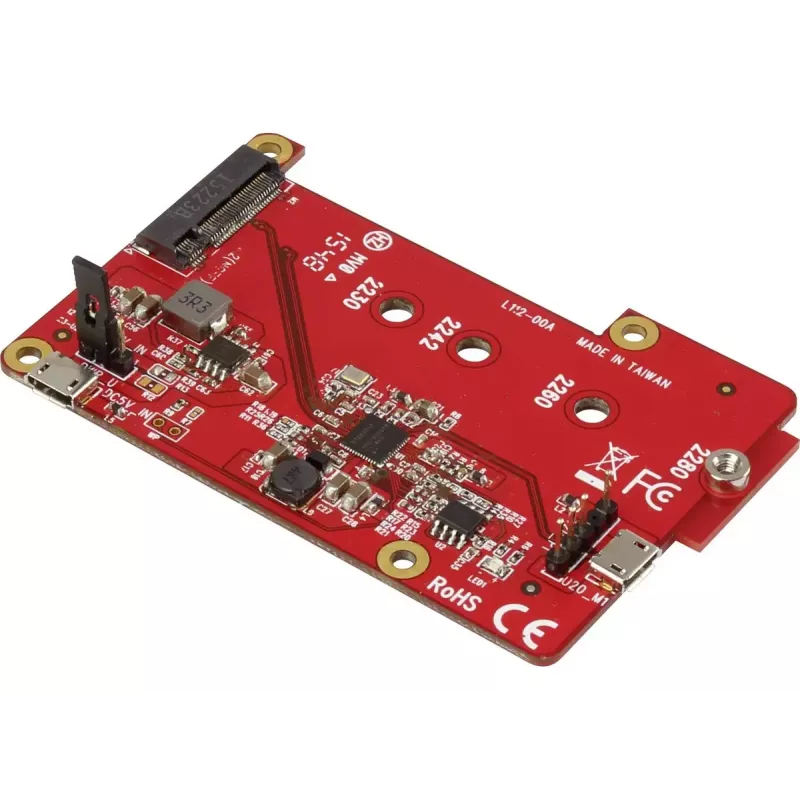

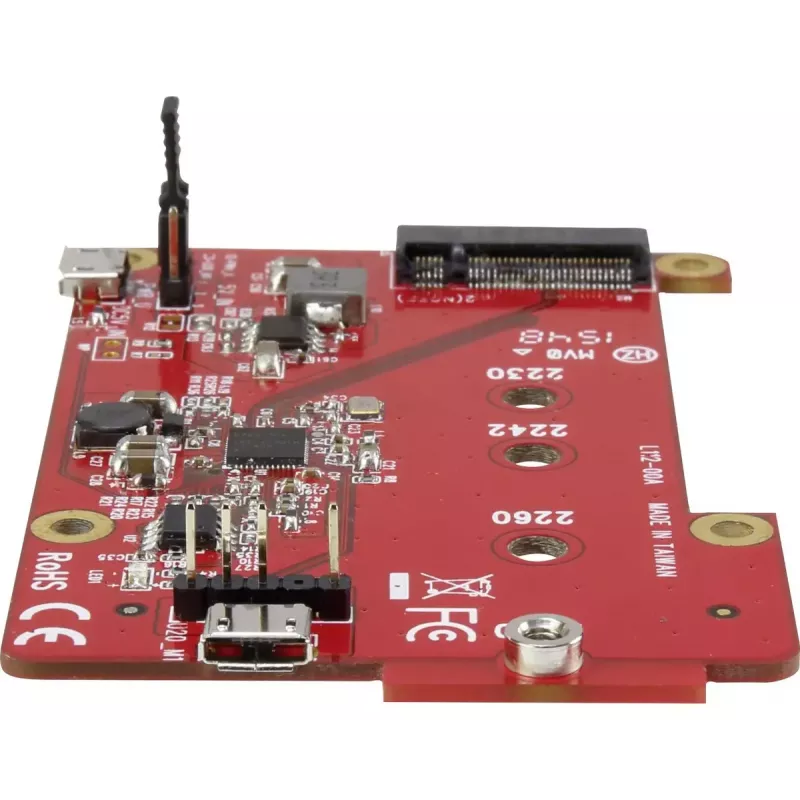

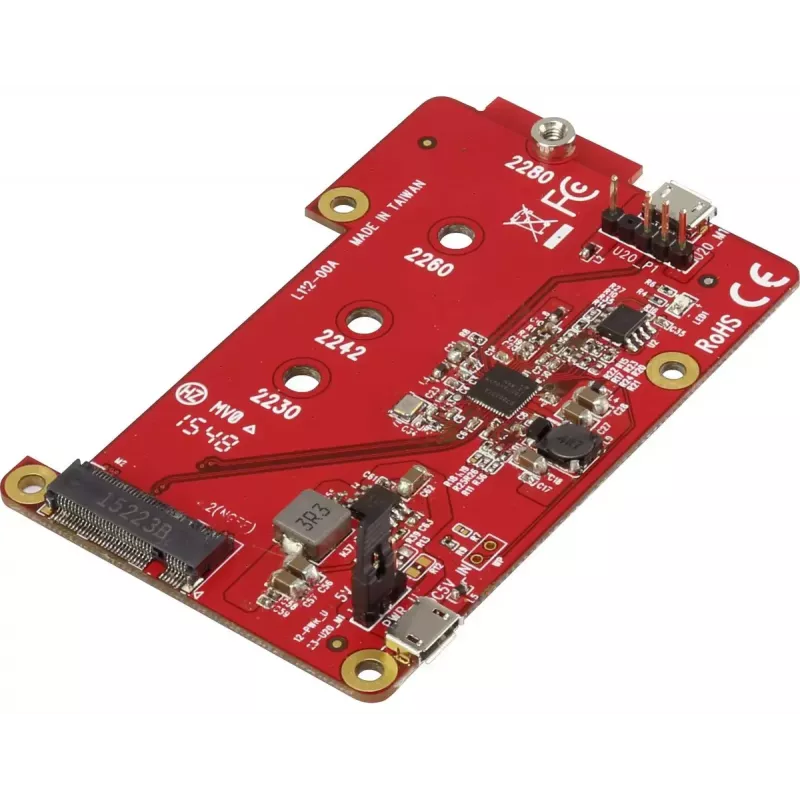

Placa de expansión Renkforce M.2 SATA SSD para Raspberry Pi

The Renkforce M.2 SATA SSD expansion board for Raspberry Pi enables connection of M.2 SATA SSD modules to compatible Raspberry Pi models, providing a compact and vibration-resistant storage option for multimedia and other applications. The board mounts securely to the Raspberry Pi and the M.2 module can also be fixed with screws. Data transfer to the Raspberry Pi is performed via a USB interface.

Advantages

The expansion board is significantly smaller than conventional hard drives and is less sensitive to vibrations, making it suitable for compact or mobile setups. It offers high-speed data transfer through the USB interface and a screw-mount design ensures stable mechanical connection to the Raspberry Pi and the M.2 SSD.

Suitable for

• Multimedia projects on Raspberry Pi
• Compact NAS or file server builds
• Projects requiring vibration-resistant storage
• Systems needing increased storage capacity and faster access than microSD

Key specifications

• Product: Expansion board for M.2 SATA SSD
• Brand: Renkforce
• Interface to Raspberry Pi: USB
• Supported module type: M.2 SATA SSD
• MPN: RF-4461291
• EAN: 4016139093253

How to use

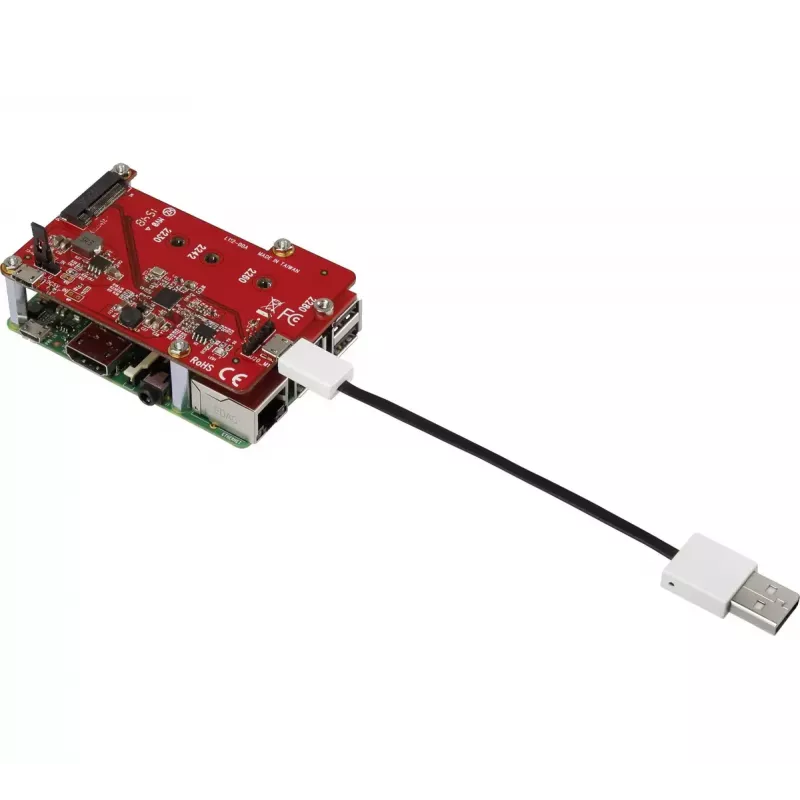

Mount the expansion board to a compatible Raspberry Pi using the provided screw positions to ensure a secure fit. Install a compatible M.2 SATA SSD into the board and fasten it with the screw. Connect the board to the Raspberry Pi via the USB connection. After connection, configure the Raspberry Pi operating system to recognize and use the attached SSD for storage or boot, following standard Raspberry Pi configuration procedures.

Recommendations

Use a compatible M.2 SATA SSD and verify the Raspberry Pi model compatibility before installation. Ensure the board and SSD are firmly screwed in place to avoid mechanical stress. For best performance, use an SSD with good sustained write/read speeds and keep the Raspberry Pi software updated to ensure proper USB storage support.
