Placa frontal modular alemana Equip Cat.6A

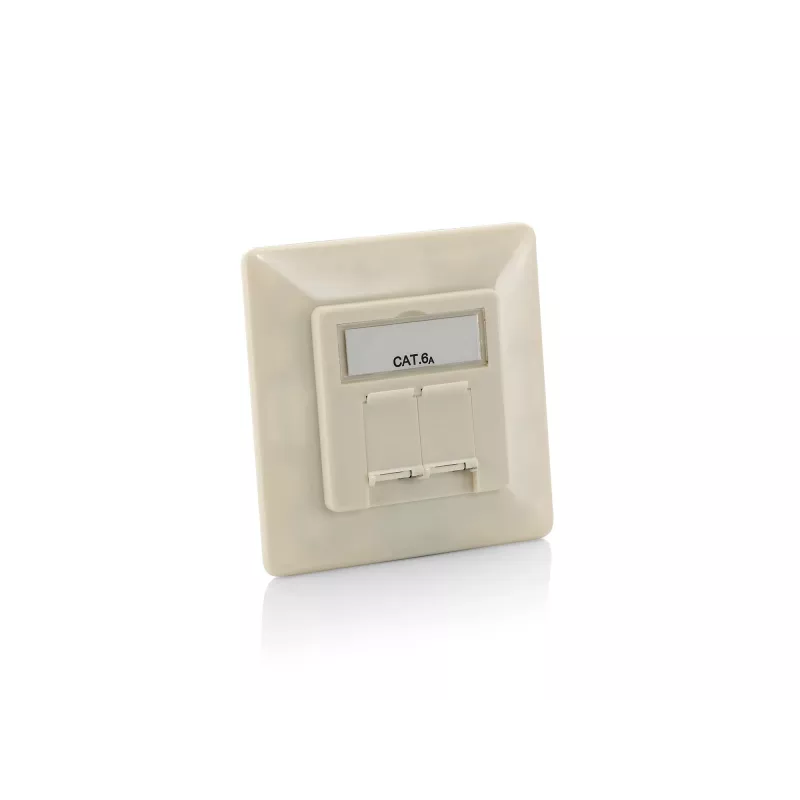

The Equip Cat.6A Modular Faceplate (model 125775) is a solidly built wall faceplate with two shielded RJ45 ports designed for high-speed Category 6a cabling. Constructed from durable polycarbonate in a white finish, the faceplate measures 80 mm x 38.2 mm x 80 mm and fits standard back boxes such as the Equip Back Box 125560.

Advantages

The faceplate offers shielded RJ45 ports that support Cat6A performance, a sturdy polycarbonate body for long-term durability, and a compact form factor that integrates with common wall back boxes. Its white colour provides a neutral appearance that blends with most interiors.

Suitable for

• High-speed Ethernet connections (Cat6A)
• Office and residential network outlets
• Installations using shielded twisted-pair (STP) cabling
• Mounting into standard 80 mm back boxes such as Equip Back Box 125560

Key specifications

• Model: Equip 125775
• Connector: 2 × shielded RJ45 ports
• Cabling standard: Category 6a
• Material: Polycarbonate
• Colour: White
• Dimensions: 80 mm × 38.2 mm × 80 mm
• Weight: 0.17 kg
• EAN: 4015867162217

How to use

Mount the faceplate onto a compatible wall back box (for example Equip Back Box 125560) following standard low-voltage installation procedures. Terminate the Cat6A shielded twisted-pair cables to compatible keystone jacks or modules if required, then insert and secure the modules into the RJ45 ports. Fasten the faceplate with the appropriate screws and restore network connections.

Recommendations

For optimal performance, use shielded Cat6A cable and maintain correct grounding of the shielding. Ensure terminations conform to Cat6A wiring standards and test links after installation to verify throughput and proper shielding continuity.
