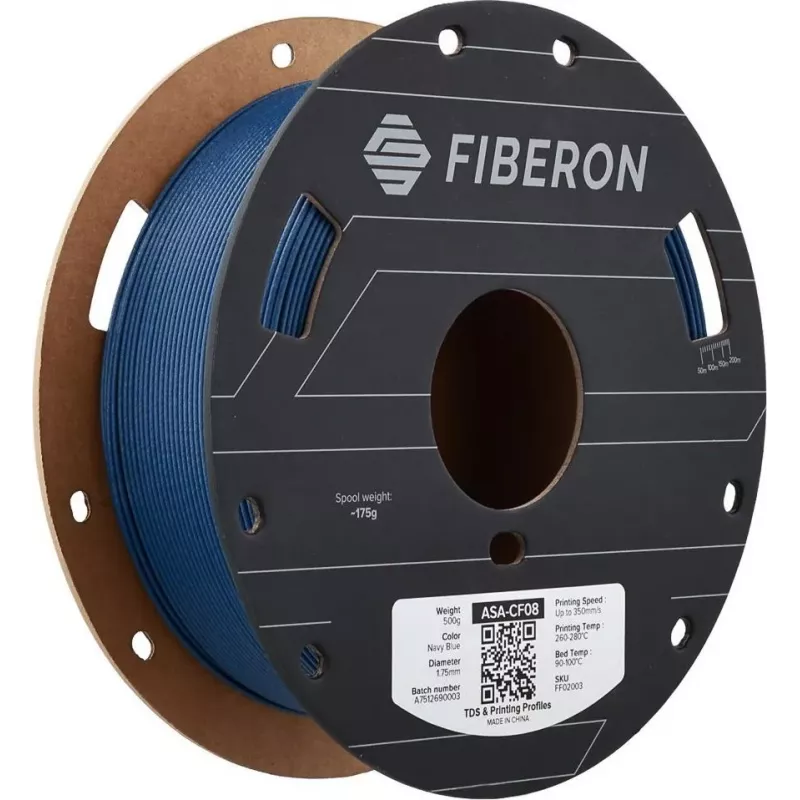

Polymaker ASA-CF08 1,75mm azul marino 0,5kg filamento ASA reforzado con fibra de carbono FF02003

ASA filament often struggles with warping and low stiffness in demanding applications. The Polymaker ASA-CF08 solves this by reinforcing ASA with carbon fiber, delivering a material that resists deformation and maintains dimensional accuracy for functional parts.

Who is it for

Engineers, makers, and professionals who need UV-stable, weather-resistant parts with added rigidity. Ideal for outdoor brackets, drone components, automotive prototypes, and tooling that must withstand sun and rain without degrading.

Main features

• Carbon fiber reinforcement increases stiffness and reduces warping
• Excellent UV and weather resistance for long-term outdoor use
• 1.75 mm diameter with ±0.05 mm tolerance for consistent extrusion
• Cardboard spool with 0.5 kg net weight

Specifications

• Material: ASA (Acrylonitrile Styrene Acrylate) with carbon fiber
• Colour: Navy Blue
• Filament Diameter: 1.75 mm
• Diameter Tolerance: ±0.05 mm
• Net Filament Weight: 0.5 kg
• Recommended Nozzle Temperature: 240-260 °C
• Recommended Bed Temperature: 90-105 °C
• Recommended Printing Speed: 30-70 mm/s
• Recommended Cooling Fan: 0-30%
• Density: 1.07 g/cm³
• Tensile Strength (X-Y): 45.0 ± 2.0 MPa
• Elongation at Break (X-Y): 2.5 ± 0.5 %
• Flexural Modulus (X-Y): 2500 ± 200 MPa
• Impact Strength (Charpy, Notched): 4.0 ± 0.5 kJ/m²
• Heat Deflection Temperature (HDT @ 0.45 MPa): 90 °C
• Vicat Softening Temperature: 100 °C
• Spool Material: Cardboard

Tips

Use a hardened steel nozzle to prevent wear from carbon fiber. Dry the filament before printing and ensure good bed adhesion with a suitable adhesive.
