PRESSOL FB-WA 19000530 sistema neumático de lubricación con grasa para bidones de 25 kg, manguera de 4 m, engrasador de alta presión

Handles 25 kg grease containers with diameters from 310 to 335 mm, delivering high-pressure lubrication through a 4 m hose and a high-pressure grease gun. This pneumatic system operates at a fixed 8 bar pressure, ensuring consistent grease flow for industrial applications.

Overview

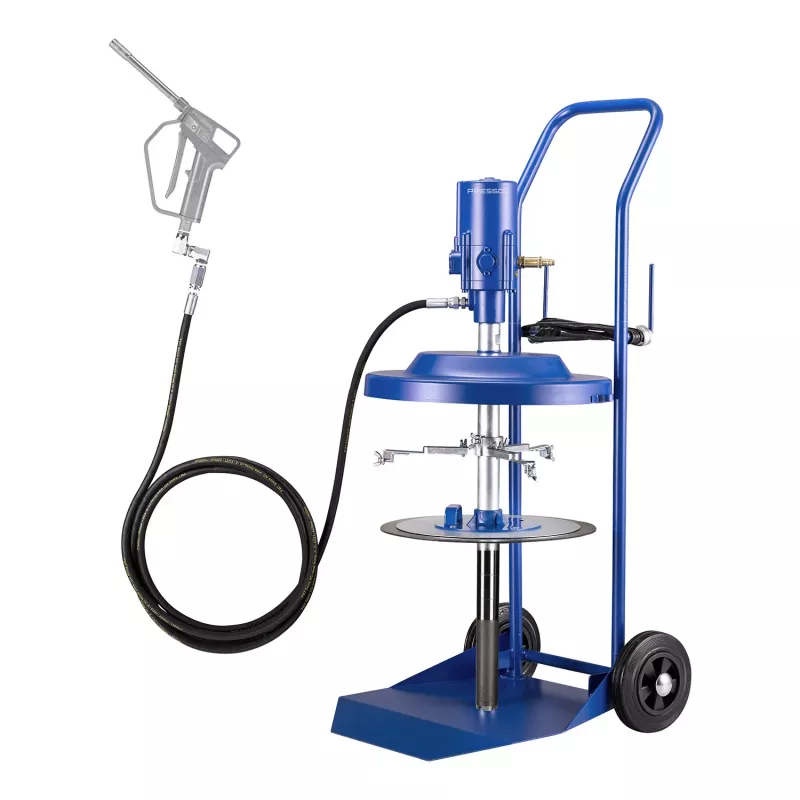

The PRESSOL FB-WA 19000530 is a complete grease filling device built around a pneumatic pump and a sturdy cart. It includes a high-pressure grease gun (model 18 104), a Z-type swivel joint (18 082), a plug nipple (20 062), and a pressure reducing valve fixed at 8 bar. The container fastening mechanism (17 199) and dust cover (17 194) are also part of the system.

What stands out

• Pneumatic operation with fixed 8 bar pressure for reliable grease transfer.
• Accommodates 25 kg containers with a diameter range of 310–335 mm.
• 4 m high-pressure hose with Z-swivel joint for flexible reach.
• High-pressure grease gun and plug nipple included for immediate use.
• Mounted on a cart for mobility in the workshop.

Technical details

• System type: Pneumatic grease filling system
• Series: FB-WA
• Container capacity: 25 kg
• Container diameter range: 310–335 mm
• Hose length: 4 m
• Grease gun type: High-pressure
• Grease gun model: 18 104
• Pressure reducing valve: 8 bar (fixed)
• Swivel joint: Z-type, model 18 082
• Coupler type: Plug nipple, model 20 062
• Container fastening: Included, model 17 199

Our verdict

A complete, mobile grease filling solution for 25 kg drums, with all necessary components included and a fixed 8 bar pneumatic pressure for consistent performance.
