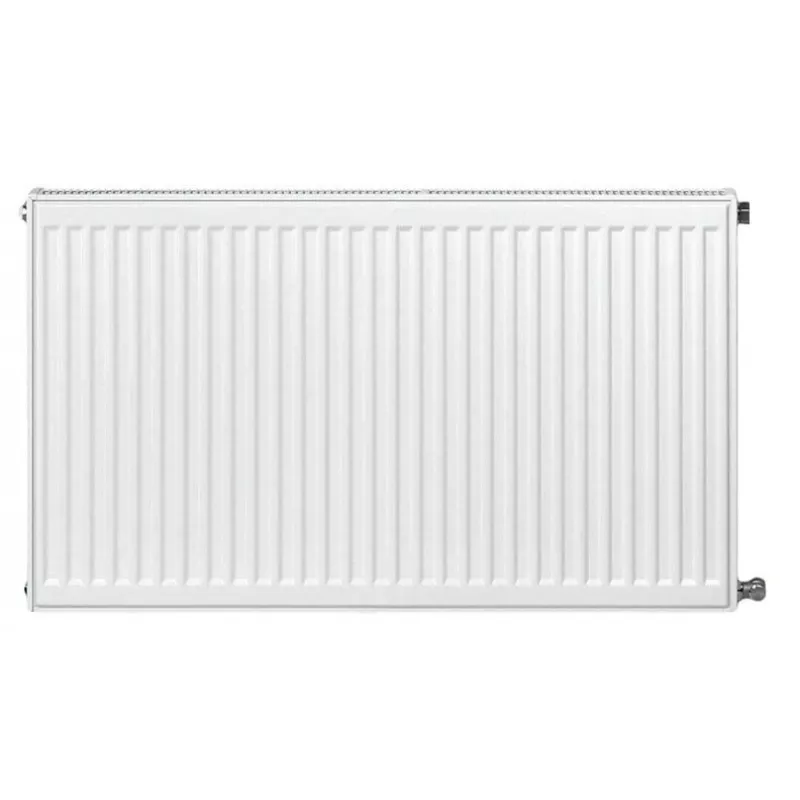

RADIK KLASIK-R Type 22 Radiador de panel 550x600 mm Blanco RAL 9016

The RADIK KLASIK-R Type 22 panel radiator from the renowned RADIK series offers efficient and reliable heating for residential and commercial spaces. With a compact size of 550 mm height and 600 mm width, this double panel double convector radiator delivers a heat output of approximately 1330 W (75/65/20°C), making it ideal for medium-sized rooms. Manufactured from high-quality steel with a durable white RAL 9016 finish, it combines functionality with a timeless design.

Advantages

High heat output in a compact footprint; robust steel construction with multi-layer corrosion protection; easy wall-mounted installation; includes all necessary accessories; 10-year warranty for peace of mind.

Suitable for

• Heating systems in apartments, houses, offices, and public buildings
• Low-temperature and standard central heating systems
• Replacement or new installations requiring a Type 22 radiator

Key specifications

• Type: Panel Radiator Type 22 (Double Panel, Double Convector)
• Dimensions: 550 mm (height) x 600 mm (width) x 100 mm (depth approx.)
• Heat Output: ~1330 W (ΔT 50°C, 75/65/20°C)
• Max. Operating Pressure: 10 bar (1.0 MPa)
• Max. Operating Temperature: 110 °C
• Water Volume: ~3.5 Liters
• Connection: Side connection with 4 x G 1/2" internal thread
• Colour: White RAL 9016
• Material: High-quality steel
• Surface Treatment: Degreasing, phosphating, KTL anaphoresis, powder coating
• Standard: EN 442
• Warranty: 10 Years

Recommendations

For optimal performance, ensure proper sizing according to room heat loss calculations. Professional installation is recommended. The radiator is supplied with wall brackets, air vent, and blanking plug.
