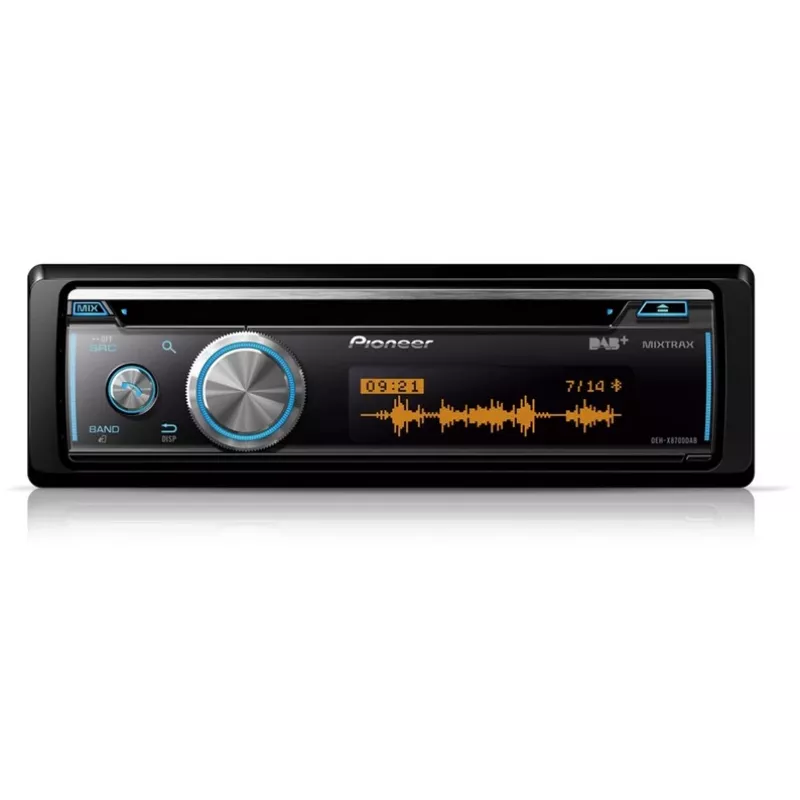

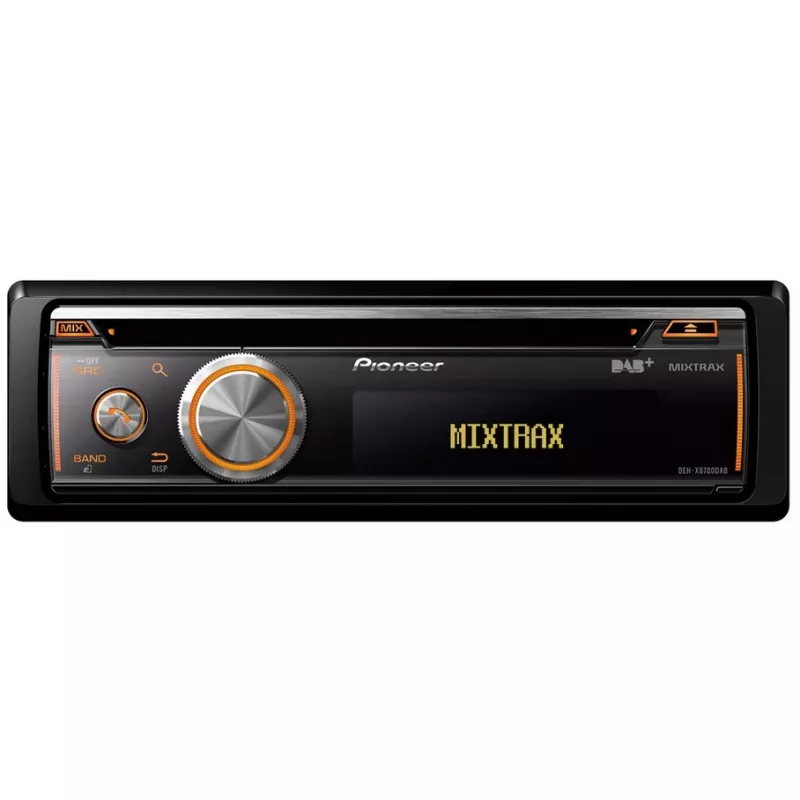

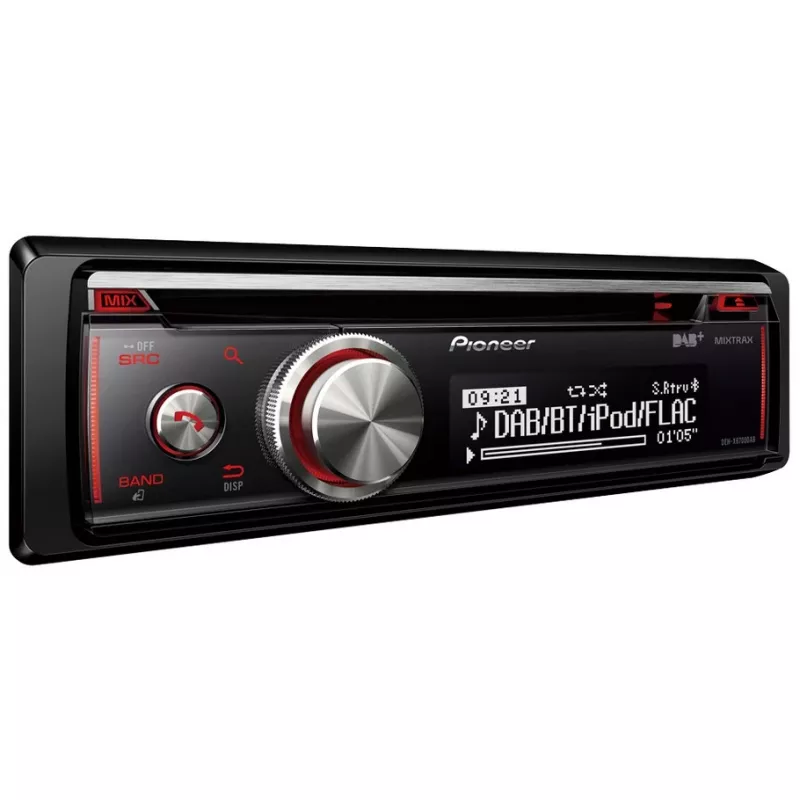

Receptor multimedia para coche Pioneer DEH-X8700DAB Negro

The Pioneer DEH-X8700DAB car media receiver provides multiple ways to enjoy audio in the vehicle. It supports DAB+ digital radio, AM and FM tuning, playback from CD, and wired connections via front AUX-in and rear USB. Built-in Bluetooth enables wireless streaming and smartphone control for iPod, iPhone and Android devices. The unit features a 1 DIN black chassis and a 3-line LCD display, with 4 x 50W MOSFET amplification and three RCA pre-outs for adding an external amplifier or subwoofer.

Advantages

The DEH-X8700DAB combines DAB+ reception, Bluetooth streaming and direct smartphone integration in a single 1 DIN receiver. Its MOSFET power stage delivers clear sound at 4 x 50W, while the three RCA pre-outs allow expansion with amplifiers or a subwoofer. Multiple source options — CD, USB, AUX and radio bands AM/FM/DAB+ — provide flexible playback choices for different media and devices.

Suitable for

• Drivers who need digital DAB+ radio and traditional AM/FM reception
• Users who want to stream audio via Bluetooth from smartphones or tablets
• Car owners who require wired playback from CD, USB devices or AUX sources
• Installations that may later add an external amplifier or subwoofer via RCA pre-outs

Key specifications

• Model: Pioneer DEH-X8700DAB
• Size: 1 DIN
• Display: 3-line LCD
• Radio: DAB+, FM, AM
• Power output: 4 x 50W (MOSFET)
• Inputs: Front AUX-in, Rear USB
• Outputs: 3 RCA pre-outs
• Wireless: Bluetooth for streaming and phone control
• Colour: Black

How to use

Install the DEH-X8700DAB into a standard 1 DIN slot and connect power, speakers and antenna according to the vehicle wiring. Use the front AUX or rear USB to play audio from portable players or USB drives. Pair a smartphone via Bluetooth to stream music and control playback; connect iPod/iPhone directly for enhanced control. Select DAB+, FM or AM on the source selector to tune radio stations, or insert a CD to play discs. If additional bass or power is required, connect an external amplifier or subwoofer to the RCA pre-outs and adjust gain from the amplifier.

Recommendations

For best DAB+ reception, position the vehicle antenna correctly and perform a channel scan after installation. When adding an external amplifier or subwoofer, set initial gain levels low and increase gradually to avoid speaker distortion.
