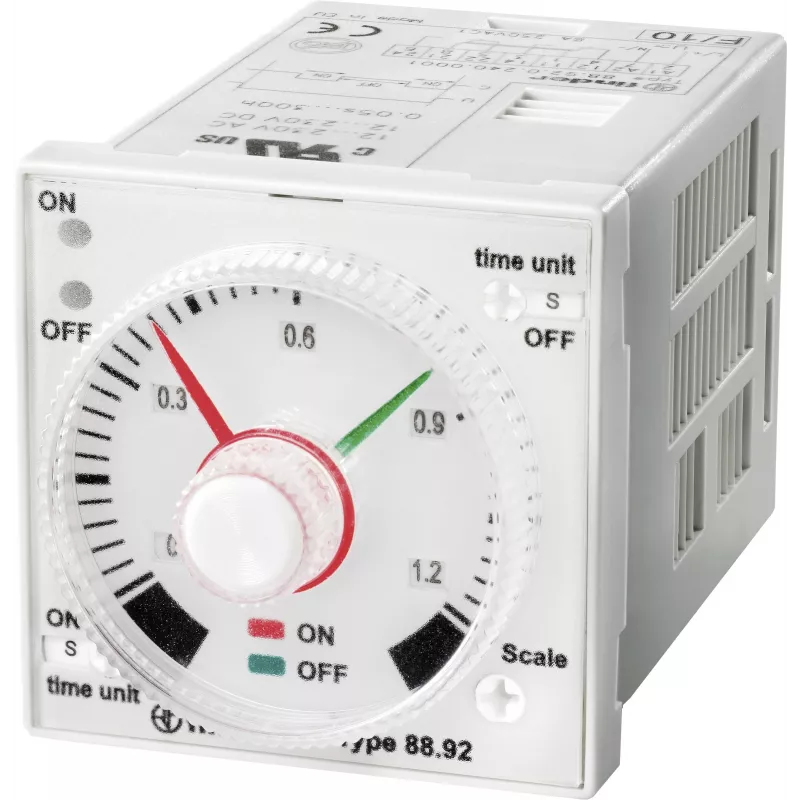

Relé temporizador multifunción Finder 889202400001, 240 V AC, 2 conmutadores, 1,2 s - 300 h

Industrial and building automation often needs a reliable way to control time-based operations such as delayed starts, interval switching, or flashing signals. The Finder 88.92.0.240.0001 multifunction time relay solves this by offering 18 selectable timing functions and 7 time scales in a compact front-panel-mount unit.

Who is it for

This relay is intended for panel builders, machine manufacturers, and maintenance engineers who require a versatile timing device for control circuits. It suits applications in HVAC, pumping, lighting control, and process automation where a 240 V AC supply and two changeover contacts are needed.

Main features

• Multifunction time relay with 18 selectable functions, including ON-delay, interval, and flasher modes
• Wide time range from 1.2 seconds to 300 hours (1,080,000 seconds) across 7 selectable scales
• Two changeover (SPDT) output contacts rated 16 A at 250 V AC (AC1)
• Front panel mounting with 48 x 48 mm cutout and screw terminals
• LED indicator for status and timing
• Operating temperature range: -20°C to +60°C

Specifications

• Product type: Multifunction Time Relay
• Supply voltage: 240 V AC (50/60 Hz)
• Output contacts: 2 changeover (CO/SPDT)
• Contact rating (AC1): 16 A @ 250 V AC
• Time range: 1.2 s - 1,080,000 s (300 hours)
• Number of functions: 18
• Time scales: 7
• Terminal type: Screw terminals
• Panel cutout: 48 x 48 mm
• Contact material: AgCdO
• Rated load (AC1): 4000 VA
• Dielectric strength (coil-contacts): 2 kV AC
• Operating temperature: -20°C to +60°C
• Protection degree: IP40 (front panel), IP20 (terminals)

Tips

Select the desired timing function and scale using the front dials before applying power. Ensure the panel cutout is exactly 48 x 48 mm for a secure fit. For inductive loads, consider derating the contact current according to the load power factor.
