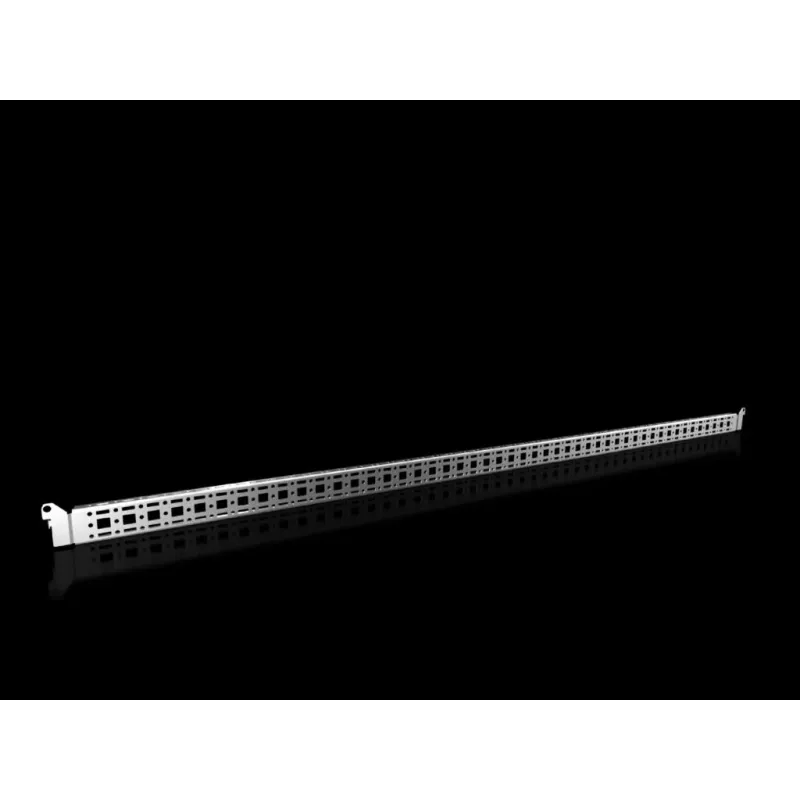

Rittal 8619.790 Chasis de sistema, acero inoxidable, para VX/TS/SE/PC/IW/AX, 760x760 mm

This system chassis from Rittal stands apart from generic mounting plates by offering a corrosion-resistant stainless steel platform that integrates directly with the plinth of VX, TS, SE, PC, IW, and AX enclosures. Its perforated surface provides universal attachment points for internal components, enabling flexible cable routing and equipment mounting without additional drilling.

Highlights

• Constructed from stainless steel 1.4301 (AISI 304) for high corrosion resistance
• Compatible with Rittal VX, TS, SE, PC, IW, and AX enclosure series
• Perforated design allows for versatile component attachment
• Supplied as a set of two chassis with assembly components
• Natural stainless steel finish requires no painting

In daily use

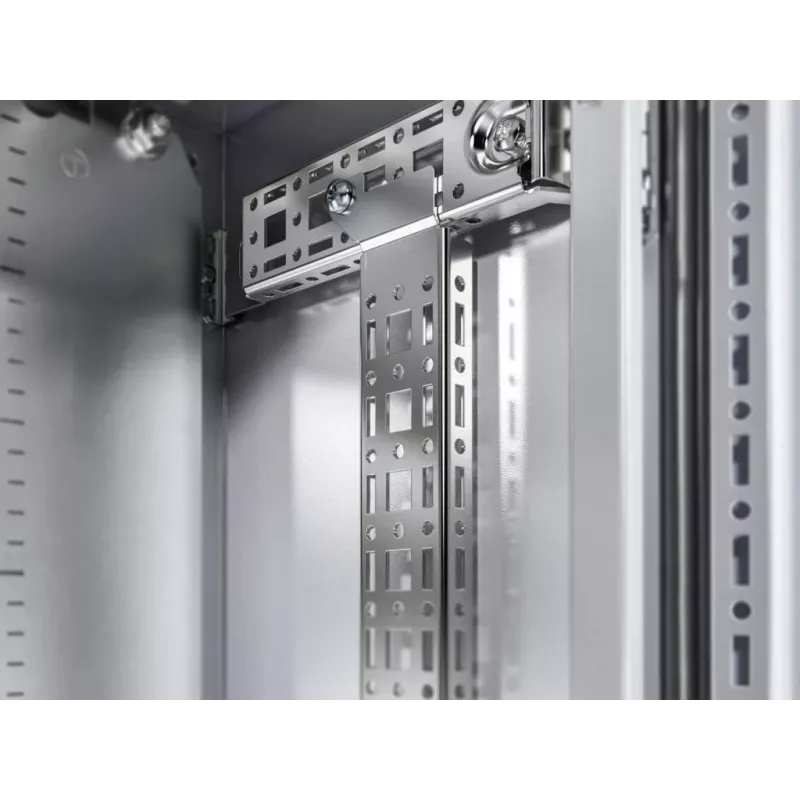

Installation is straightforward: the chassis mounts directly to the plinth corner pieces of the enclosure, creating a stable base for internal components. The perforations accept standard fasteners, so you can secure cable ducts, DIN rails, or other accessories exactly where needed. Its 100 mm nominal height keeps the interior organized while preserving space above for larger equipment.

Full specifications

• Product type: System chassis
• Material: Stainless steel 1.4301 (AISI 304)
• Compatible enclosures: Rittal VX, TS, SE, PC, IW, AX
• Enclosure width compatibility: 760 mm
• Enclosure depth compatibility: 760 mm
• Nominal height: 100 mm
• Installation area: Plinth / base area of enclosure
• Function: Internal component mounting, cable routing
• Design: Perforated for universal component attachment
• Surface finish: Unpainted, natural finish
• Colour: Natural stainless steel
• Scope of supply: 2 system chassis, assembly components
• Mounting type: Direct mounting to plinth corner pieces
• Corrosion resistance: High
• Environmental suitability: Indoor (within suitable enclosure)

Final note

For engineers and panel builders who demand reliable internal organization in demanding environments, this Rittal system chassis delivers the durability and flexibility needed to keep enclosures tidy and functional.
