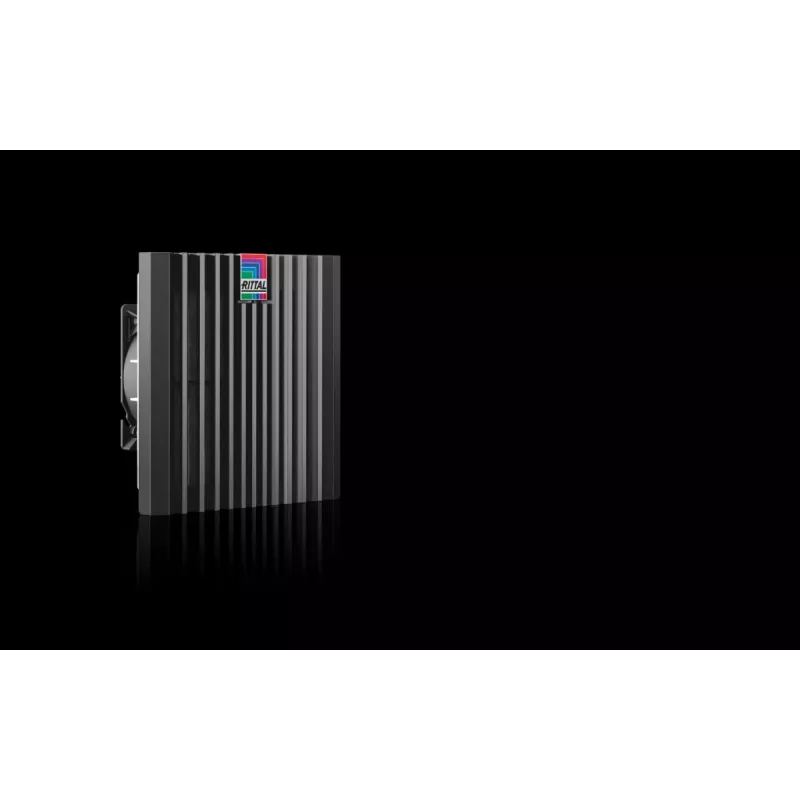

Rittal Blue e+ Ventilador con filtro 110/125 m³/h RAL 9005 (3239708)

Keep control cabinets cool and protected with the Rittal Blue e+ Filter Fan, a reliable solution for maintaining optimal operating temperatures in industrial enclosures. This fan delivers 110 m³/h at 50 Hz or 125 m³/h at 60 Hz, ensuring efficient heat dissipation for sensitive electronics. Its IP54 protection rating guards against dust and splashing water, making it suitable for demanding environments. The jet black RAL 9005 finish blends seamlessly into modern equipment layouts.

Key specifications

• Airflow: 110 m³/h (50 Hz), 125 m³/h (60 Hz)
• Rated operating voltage: 230 V AC, 50/60 Hz
• Power consumption: 18 W (50 Hz), 20 W (60 Hz)
• Cut-out dimensions: 223 x 223 mm
• Overall dimensions: 250 x 250 x 100 mm
• Protection category: IP54 (NEMA 12)
• Colour: RAL 9005 (Jet Black)
• Noise level: 50 dB(A) at 50 Hz, 53 dB(A) at 60 Hz
• Material: Plastic (ABS), ball bearing

Why choose it

The Blue e+ series combines efficient airflow with a compact design, making installation straightforward in standard cabinet cut-outs. Its ball bearing construction ensures long service life, while the IP54 rating provides dependable protection in industrial settings.

Ideal use cases

• Cooling for control cabinets in manufacturing plants
• Ventilation for electrical enclosures in dusty or wet environments
• Replacement fan for existing Rittal Blue e+ systems

Good to know

Operating temperature range: -10 °C to +55 °C. The fan is designed for continuous operation and requires a 230 V AC supply.
